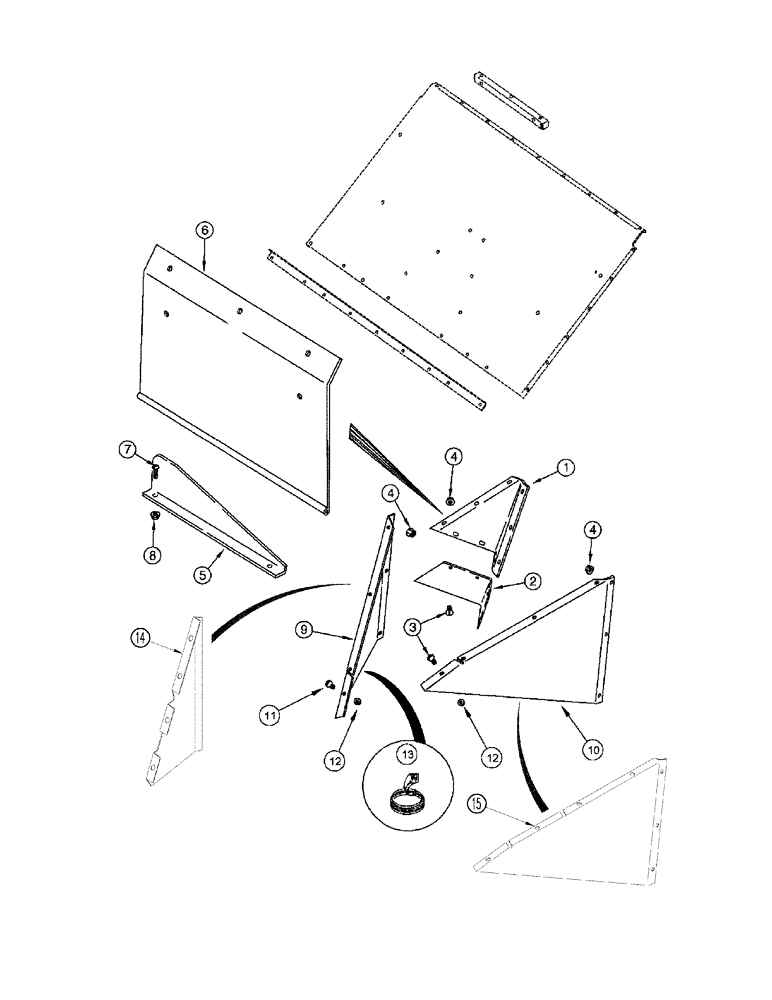

Запчасти Case IH 2366 (09H-08) - DEFLECTORS - SUPPORTS (12) - CHASSIS

1

1319485C1

DEFLECTOR

1шт.

With Straw Spreader

1шт.

2

1321019C1

DEFLECTOR

1шт.

With Straw Spreader

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

5

115497A1

DEFLECTOR

1шт.

With Straw and Chaff Spreader

1шт.

6

115498A3

DEFLECTOR

1шт.

With Straw and Chaff Spreader

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

7шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

9

1302105C2

DEFLECTOR

Left Hand, Serial Range: -JJC0253999

1шт.

9

1302105C3

SUPPORT

Left Hand, Serial Range: JJC0254000-JJC0254999

1шт.

10

1302106C2

DEFLECTOR

Right Hand, Serial Range: -JJC0253999

1шт.

10

1302106C3

SUPPORT

Right Hand, Serial Range: JJC0254000-JJC0254999

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

10шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

13

1545944C1

SEAL

127 mm (5 in.), Cut From 1330108CX

1шт.

14

412001A1

SUPPORT

Left Hand, Start Serial: JJC0255000

1шт.

15

412002A1

SUPPORT

Right Hand, Start Serial: JJC0255000

1шт.
