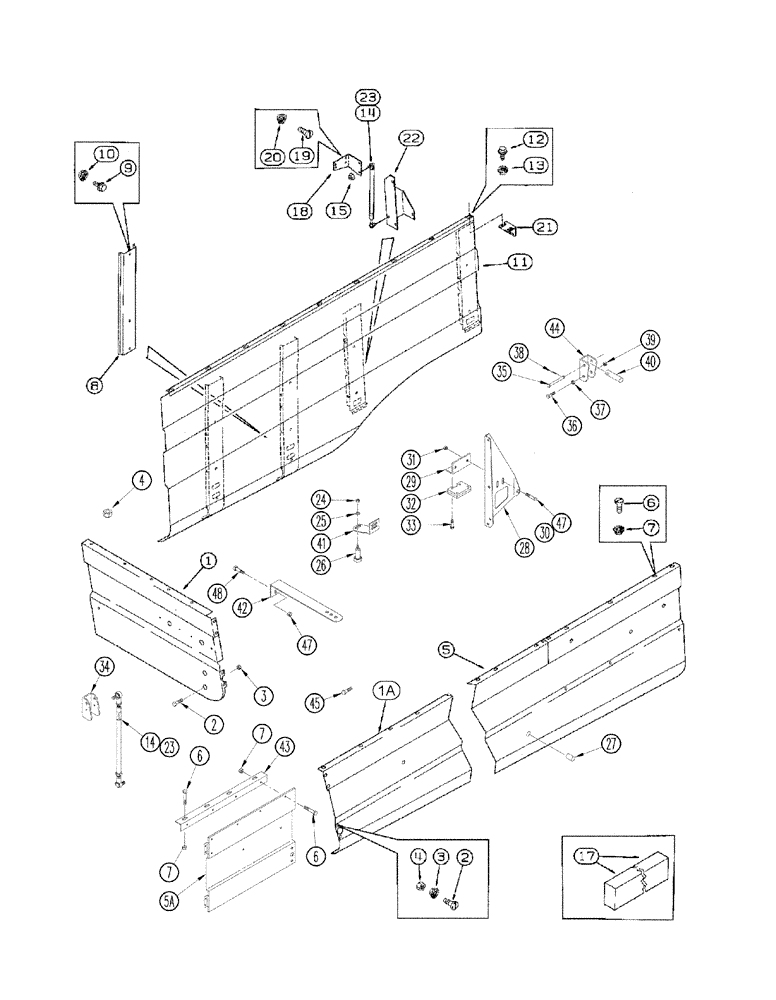

Запчасти Case IH 2366 (09H-05[02]) - DOOR - SHIELD - RIGHT HAND, TWO PIECE DOOR, BTW JJC0255000 & JJC0255699 (12) - CHASSIS

1

398211A1

SUPPORT

Right Hand, Tail Lamp, Start Serial: JJC0254000

1шт.

1a

413998A1

SUPPORT

Sheet Rear Right Hand Trim, Start Serial: JJC0254000

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

4

488837C1

SPRING NUT

5/16

3шт.

5

419741A1

SHEET

Right Hand, Serial Range: JJC0254000-JJC0255699

1шт.

5a

413998A1

SUPPORT

Right Hand

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

11шт.

6

190553A1

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

5шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

8

1319563C1

SUPPORT

2шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

11

139777A3

HOOD

Right Hand

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

9шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

14

140311A3

GAS STRUT

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

17

187885C1

SEALING STRIP

660 mm (26 in.), Cut From 87281C1

1шт.

18

139771A2

SUPPORT

Upper Right Hand

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

21

181333A2

BRACKET

1шт.

22

176083A2

SUPPORT

See Figure 09D-17, Ref. 17

1шт.

23

1340345C1

BALL STUD

BALL PIN

4шт.

24

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

25

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64")

2шт.

26

282145A1

SPECIAL BOLT,1/2" - 13 x 3/4", Grade 8

Striker

1шт.

27

353-462

BUSHING,12.7mm ID x 15.88mm OD x mm L

1шт.

28

432210A1

BRACKET

1шт.

29

182195A2

BRACKET

1шт.

30

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

32

141224A1

LATCH

1шт.

33

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

34

432278A1

LEVER

1шт.

35

127-218

CLEVIS PIN,4.78mm OD x 30.94mm L

1шт.

36

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

38

432-412

COTTER PIN,1/16" x 3/4"

1шт.

39

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

1шт.

40

432307A1

PIN,11.11mm OD x 43mm L

1шт.

41

413990A1

BRACKET

1шт.

42

413989A1

STRAP

1шт.

43

431658A1

ANGLE

1шт.

44

130184A2

BRACKET

1шт.

45

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

46

190553A1

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

9шт.

47

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.
