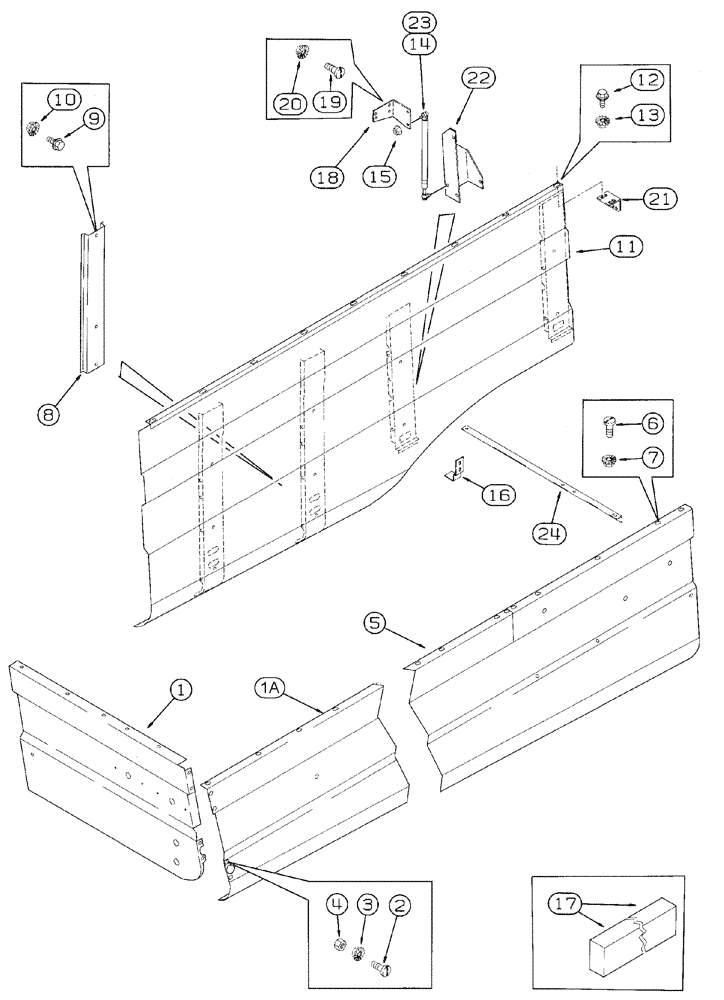

Запчасти Case IH 2366 (09H-05[01]) - DOOR - SHIELD - RIGHT HAND, SINGLE PIECE DOOR, BSN JJC0254999 (12) - CHASSIS

1

193812C7

SHEET

Right Hand, Serial Range: -JJC0253999

1шт.

1

398211A1

SUPPORT

Right Hand, Tail Lamp, Start Serial: JJC0254000

1шт.

1a

413998A1

SUPPORT

Sheet Rear Right Hand Trim, Start Serial: JJC0254000

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

4

488837C1

SPRING NUT

5/16

3шт.

5

193734C7

PANEL

Right Hand, Serial Range: -JJC0253999

1шт.

5

400582A1

SHEET

Right Hand, Start Serial: JJC0254000

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

11шт.

6

190553A1

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

5шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

8

1319563C1

SUPPORT

2шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

11

139777A3

HOOD

Right Hand

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

9шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

14

140311A3

GAS STRUT

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

16

143442A2

SUPPORT

Front

1шт.

17

187885C1

SEALING STRIP

660 mm (26 in.), Cut From 87281C1

1шт.

18

139771A2

SUPPORT

Upper Right Hand

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

21

181333A1

ANGLE BAR

1шт.

22

176083A2

SUPPORT

See Figure 09D-17, Ref. 17

1шт.

23

1340345C1

BALL STUD

BALL PIN

2шт.

24

194604C3

ANGLE BAR

1шт.
