Запчасти Case IH 2366 (09H-04[02]) - SEPARATOR - HOOD ASN JJC0255000 (12) - CHASSIS

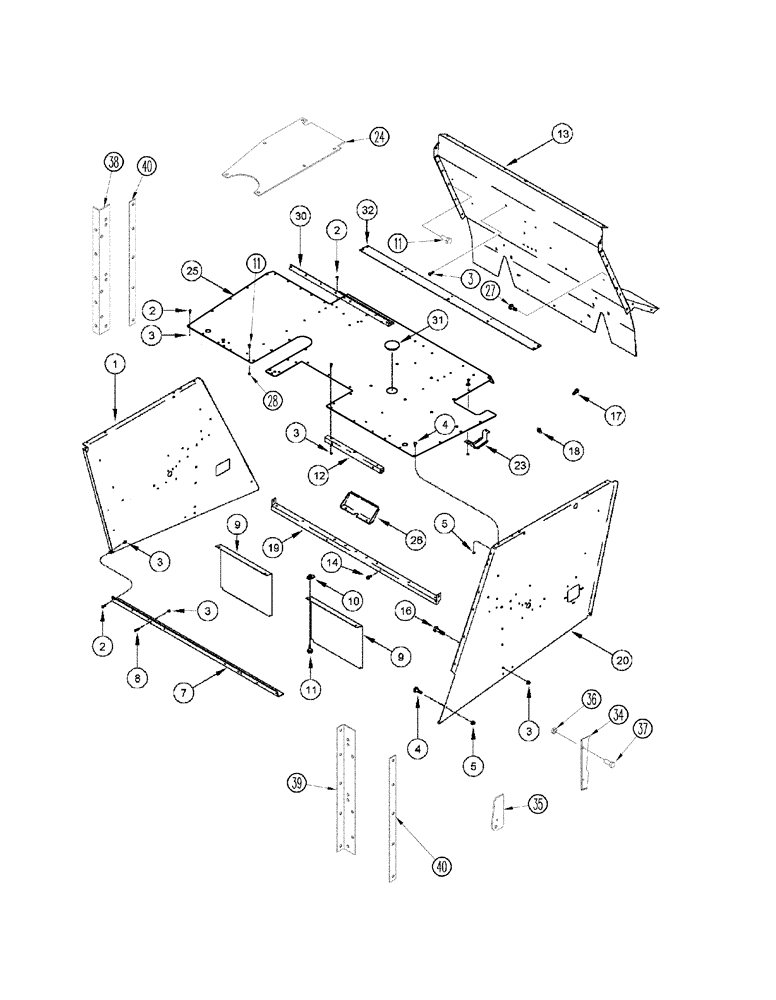

Схема запчастей Case IH 2366 - (09H-04[02]) - SEPARATOR - HOOD ASN JJC0255000 (12) - CHASSIS
3
10
32
12
7
2
25
39
30
34
8
4
27
18
3
40
4
3
28
5
11
35
31
40
20
23
24
9
3
14
3
11
16
1
11
17
9
38
2
13
5
37
3
19
2
36
26

Артикул

Название

Примечание

Количество

1

418679A1

SHEET

Left Hand, Inc. Decal

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

5

231-5146

FLANGE NUT,3/8"-16

12шт.

7

192309C2

ANGLE

Rear

1шт.

8

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

9

441741A1

COVER

Rear

2шт.

10

488837C1

SPRING NUT

5/16

4шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

12

186971C1

ANGLE

Rear

1шт.

13

412000A1

SUPPORT

Fuel Tank

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

6шт.

17

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

9шт.

18

488837C1

SPRING NUT

5/16

10шт.

19

411989A1

ANGLE

1шт.

20

412623A1

SHEET

Right Hand

1шт.

23

380043A1

STOP

Fuel Tank

2шт.

24

411972A1

COVER

Engine

1шт.

25

409781A1

SHEET

Rear Deck, Serial Range: -JJC0255699

1шт.

25

416416A5

SHEET

Rear Deck, Start Serial: JJC0255700

1шт.

26

364781A1

RETAINER

Fuel Tank

1шт.

27

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

28

488837C1

SPRING NUT

6шт.

29

131-137

SPRING NUT,Ret, 5/16"-18

4шт.

30

411973A1

BRACKET

Rear Deck

1шт.

31

87000778

PLUG,89mm OD

Clean Out Hole

1шт.

32

87415940

SHEET

Rear Service Deck Connection

1шт.

33

419957A1

SEAL

Not Illustrated

1шт.

34

418095A1

SHEET

Seal, Shown

1шт.

35

418096A2

SHEET

Seal

1шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

37

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

38

412620A1

SUPPORT

Side Sheet, Left Hand

1шт.

39

412622A1

SUPPORT

Side Sheet, Right Hand

1шт.

40

418632A1

STRAP

Shim

2шт.

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4; 8

8шт.

1545944C1

SEAL

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

10шт.

410009A1

SPRING NUT

U-Type

8шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

6шт.

Выбрано товаров: 41
