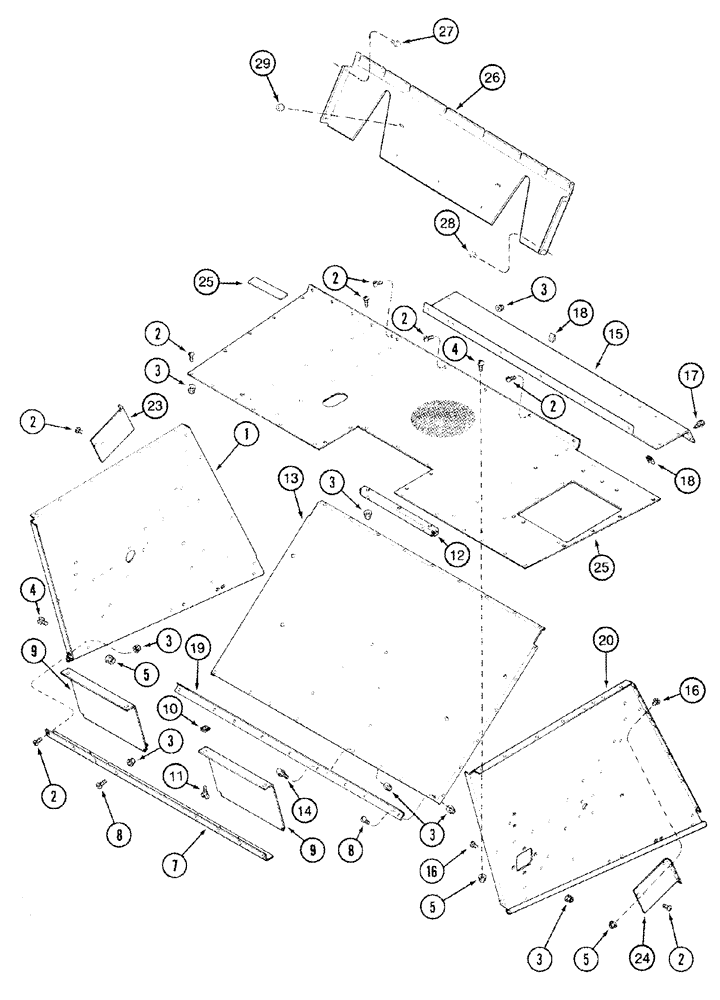

Запчасти Case IH 2366 (09H-04[01]) - SEPARATOR - HOOD BSN JJC0254999 (12) - CHASSIS

1

189800A2

COVER

Left Hand, Inc. Decal, See Figure(s) 09H-20, Ref. 6; 09H-20, Ref. 8, Serial Range: -JJC0253999

1шт.

1

189800A3

COVER

Left Hand, Inc. Decal, See Figure(s) 09H-20, Ref. 6; 09H-20, Ref. 8, Start Serial: JJC0254000

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

5

231-5146

FLANGE NUT,3/8"-16

12шт.

7

192309C2

ANGLE

1шт.

8

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

6шт.

9

189798A2

COVER

Inc. Decal, See Figure 09H-04, Ref. 9

2шт.

10

488837C1

SPRING NUT

5/16

4шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

12

186971C1

ANGLE

1шт.

13

1324988C3

DEFLECTOR

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

15

1541957C1

SHEET

1шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

8шт.

17

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

18

488837C1

SPRING NUT

5/16

11шт.

19

194305C1

ANGLE

1шт.

20

195620A1

SHEET

Right Hand, Serial Range: -JJC0253999

1шт.

20

195620A3

SHEET

Right Hand, Start Serial: JJC0254000

1шт.

23

185104C1

SUPPORT

Left Hand

1шт.

24

185105C1

SUPPORT

Right Hand

1шт.

25

356458A1

SHEET

Replaces 1317744C9

1шт.

26

195138C5

SUPPORT

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

28

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2, Not Illustrated

1шт.

31

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4, Not Illustrated

1шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

6шт.
