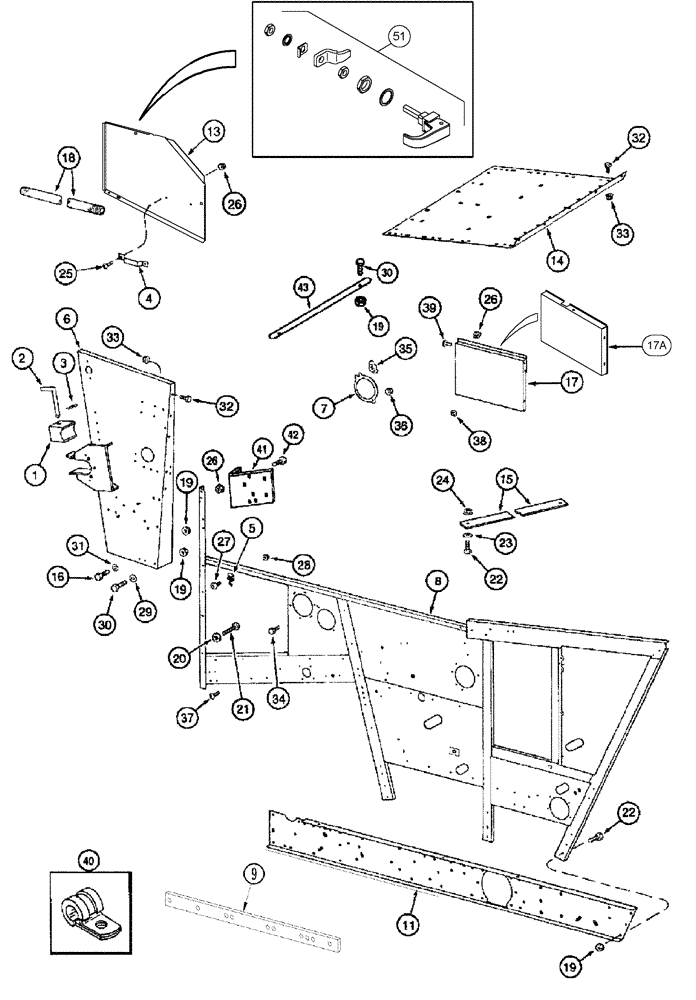

Запчасти Case IH 2366 (09H-03) - SEPARATOR - DOORS - RIGHT HAND (12) - CHASSIS

1

1989327C3

RETAINER

1шт.

2

418694A1

ROD,25.4mm OD

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

160638C2

HANDLE

1шт.

5

167800C1

CLIP

4шт.

6

115443A4

SUPPORT

Right Hand, Front, Serial Range: -JJC0254999

1шт.

6

115443A5

SUPPORT

Right Hand, Front, Start Serial: JJC0255000

1шт.

7

188315C1

DOOR

1шт.

8

199615A4

SIDE ASSY.

Right Hand, Serial Range: -JJC0253999

1шт.

8

394730A1

SIDE ASSY.

Right Hand, Serial Range: JJC0254000-JJC0254999

1шт.

8

409777A2

SIDE ASSY.

Right Hand, Start Serial: JJC0255000

1шт.

9

198572A3

STRAP

Main Sill

1шт.

Rice Combine

1шт.

11

1317554C5

SUPPORT

Right Hand, Serial Range: -JJC0253999

1шт.

11

359827A1

SILL

Right Hand, Serial Range: JJC0254000-JJC0254999

1шт.

11

359827A2

SILL

Right Hand, Start Serial: JJC0255000

1шт.

13

192623C3

DOOR

Right Hand, Front, Serial Range: -JJC0255699

1шт.

13

86991352

DOOR

Right Hand, Front, Shown, Start Serial: JJC0255700

1шт.

14

1324970C4

PLATE

1шт.

15

196315C2

BAR

, Serial Range: -JJC0254999

1шт.

15

446256A1

BAR

Right Hand, Start Serial: JJC0255000

1шт.

16

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

5/8 x 1-1/4; 8

13шт.

17

181085C4

DOOR

1шт.

17a

87301105

DOOR

Replaces 181085C4

1шт.

18

1319395C1

CONDUIT

12-1/8, Cut From 1262114C1

1-2шт.

19

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

5/8; 8

17шт.

19

232-53110

FLANGE NUT,Flg, 5/8"-11

2шт.

20

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

3шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

22

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2, 8

2шт.

25

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

27

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

28

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

29

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

21/32 x 1-1/2 x 3/16

2шт.

30

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

5шт.

31

495-11066

WASHER,5/8", SAE

9/16 x 1-5/16 x 3/32

6шт.

32

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

33

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

(8)

1шт.

34

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

35

86627130

WING NUT,1/4"-20

1/4

1шт.

36

231-4144

NUT,1/4"-20, GB

1шт.

37

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

1шт.

38

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

39

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

40

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

41

220624A1

SUPPORT

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

43

235386A2

LARGE PLATE

PLATE, LARGE

1шт.

44

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

Not Illustrated

1шт.

45

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

Not Illustrated

1шт.

46

496-21053

WASHER,17/32" x 1 1/16" x .134"

Not Illustrated

1шт.

47

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

Not Illustrated

1шт.

48

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

Not Illustrated

1шт.

49

231-5146

FLANGE NUT,3/8"-16

Not Illustrated

1шт.

50

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8, Not Illustrated

1шт.

51

86991204

LATCH

Access Door

2шт.
