Запчасти Case IH 2366 (09H-02) - SEPARATOR - DOORS - LEFT HAND (12) - CHASSIS

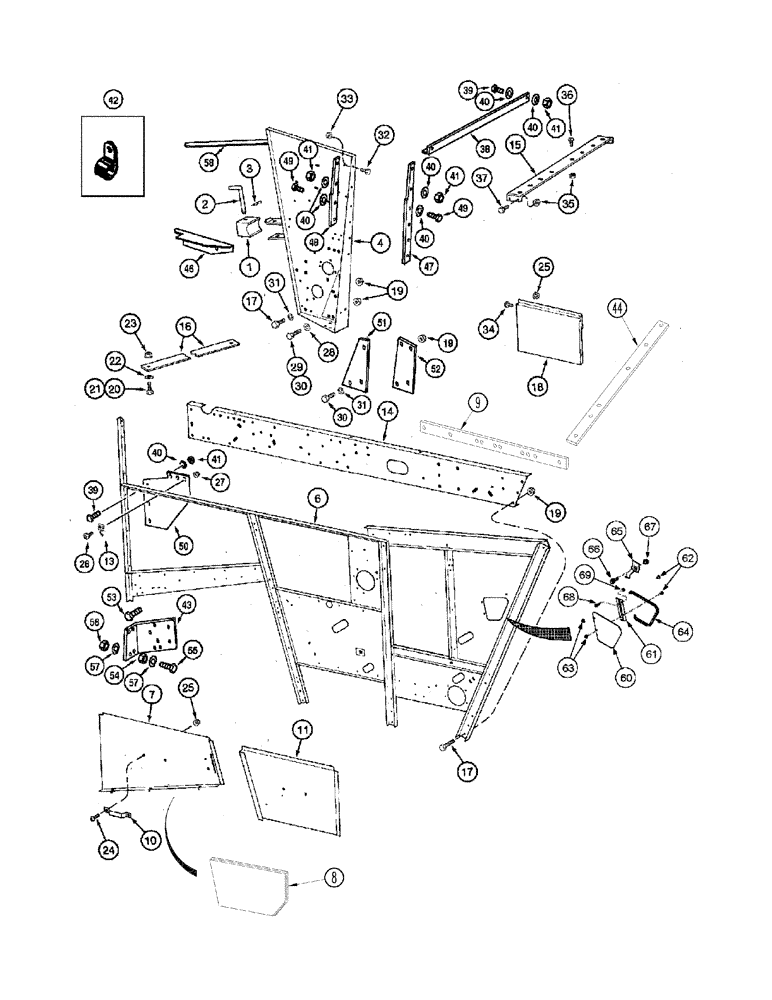

Схема запчастей Case IH 2366 - (09H-02) - SEPARATOR - DOORS - LEFT HAND (12) - CHASSIS
43
46
35
31
69
34
32
40
53
30
17
40
33
39
54
39
21
66
47
61
57
17
37
19
24
7
19
40
64
49
19
8
28
1
15
68
25
51
52
62
6
29
18
22
10
60
9
4
67
36
27
16
42
25
58
14
41
63
26
41
13
48
3
55
57
44
65
50
30
40
41
2
11
38
20
31
40
40
41
56
49
23

Артикул

Название

Примечание

Количество

1

1989327C3

RETAINER

1шт.

2

418694A1

ROD,25.4mm OD

1шт.

3

486830R1

COTTER PIN

3/16

1шт.

4

139619A6

SUPPORT

Left Hand, Front, Inc. Decal, See Figure 09H-21, Ref. 9, Serial Range: -JJC0253999

1шт.

4

393189A2

POST

Left Hand, Front, Inc. Decal, See Figure 09H-21, Ref. 9, Serial Range: JJC0254000-JJC0254999

1шт.

4

393189A3

POST

Left Hand, Front, Start Serial: JJC0255000

1шт.

5

120253C1

CONDUIT

210 mm (8-1/4 in.), Cut From 1262114C1, Not Illustrated

1шт.

6

320801A3

SIDE ASSY.

Left Hand, Replaces 1970184C9, Serial Range: -JJC0253999

1шт.

6

393323A1

SIDE ASSY.

Left Hand, Serial Range: JJC0254000-JJC0254999

1шт.

6

409771A3

SIDE ASSY.

Left Hand, Start Serial: JJC0255000

1шт.

7

192081C1

DOOR

Left Hand, Serial Range: -JJC0254999

1шт.

8

446258A1

DOOR

Left Hand, Start Serial: JJC0255000

1шт.

9

198572A3

STRAP

Main Sill

1шт.

Rice Combine

1шт.

10

160638C2

HANDLE

2шт.

11

192940C1

DOOR

Left Hand

1шт.

13

167800C1

CLIP

10шт.

14

1327695C8

SUPPORT

Left Hand, Serial Range: -JJC0253999

1шт.

14

359826A1

SILL

Left Hand, Serial Range: JJC0254000-JJC0254999

1шт.

14

359826A2

SILL

Left Hand, Start Serial: JJC0255000

1шт.

15

195316C1

SUPPORT ASSY.

1шт.

16

196315C2

BAR

, Serial Range: -JJC0254999

1шт.

16

446256A1

BAR

1740 mm (68-1/2 in.)

1шт.

Use with 339826A2

1шт.

17

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

5/8 x 1-1/4; 8

13шт.

18

181085C4

DOOR

1шт.

19

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

5/8; 8

17шт.

20

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

21

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

23

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2, 8

3шт.

24

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

4шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

26

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

10шт.

27

231-51409

SERRATED NUT,Flg, USR, #10-24

10шт.

28

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

21/32 x 1-1/2 x 3/16

4шт.

29

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

30

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8

5шт.

31

495-11066

WASHER,5/8", SAE

9/16 x 1-5/16 x 3/32

10шт.

31

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

9/16 x 1-1/2 x 3/16

4шт.

32

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

33

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

8шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

9шт.

35

231-5146

FLANGE NUT,3/8"-16

6шт.

37

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

4шт.

38

222134A2

SUPPORT

1шт.

39

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

40

496-21053

WASHER,17/32" x 1 1/16" x .134"

30шт.

41

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

15шт.

42

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

43

220612A1

SUPPORT

1шт.

44

446256A1

BAR

Backing, Auger Trough, Serial Range: JJC0255000-JJC0255699

1шт.

44

446246A1

STRAP

Backing, Auger Trough, Start Serial: JJC0255700

1шт.

46

234958A1

SUPPORT

Upper Front

1шт.

47

233327A2

LARGE PLATE

PLATE, LARGE

1шт.

48

235234A3

LARGE PLATE

PLATE, LARGE PLATE Left Hand

1шт.

49

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

7шт.

50

233468A1

LARGE PLATE

PLATE, LARGE Left Hand, Corner

1шт.

51

233326A1

LARGE PLATE

PLATE, LARGE Left Hand, Front

1шт.

52

233324A1

LARGE PLATE

PLATE, LARGE Left Hand, Front

1шт.

53

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

53

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

4шт.

54

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

54

231-5146

FLANGE NUT,3/8"-16

2шт.

55

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

55

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

1шт.

55

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

56

231-5146

FLANGE NUT,3/8"-16

2шт.

56

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

2шт.

57

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

58

235386A2

LARGE PLATE

PLATE, LARGE

1шт.

59

188062C2

DOOR SEAL,12.7mm H x 25.4mm W x 140mm L

140 mm (5-1/2 in.), Cut From 1338149C1, Not Illustrated

4шт.

387815A1

DOOR

Separator, Inc. 60 - 64, Start Serial: JJC0254000

1шт.

60

383558A1

DOOR

JJC0254000 to

1шт.

61

397586A1

HINGE

JJC0254000 to

1шт.

62

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

2шт.

63

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

64

383559A1

SEAL

1шт.

65

167800C1

CLIP

1шт.

66

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

1шт.

67

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

68

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

2шт.

69

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

426155A1

KIT

Sieve Light/Viewing Door, Inc. 60, 62 - 64, 66 - 69, Also Inc. 1347069C1 (2), See Figure(s) 04-16, 09H-22 (01), 09H-23

1шт.

Use to retrofit machines built prior to P.I.N. JJC0252949.

1шт.

36

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

12шт.

Выбрано товаров: 86
