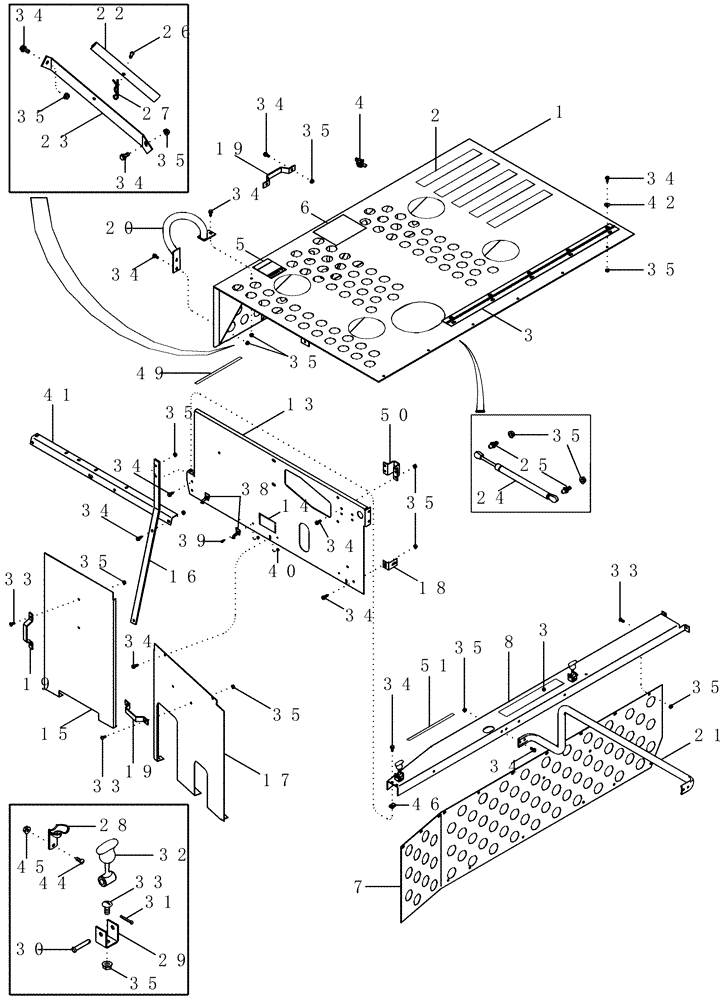

Запчасти Case IH 2366 (09H-01[02]) - ENGINE SHIELDS AND SERVICE DECK - ASN JJC0255700 (12) - CHASSIS

1

87412590

DOOR

Engine Cover

1шт.

2

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25 in) x 51 mm (2 in)

8шт.

3

418164A2

HINGE

2шт.

4

138699A1

LOCK

Latch

1шт.

5

181597A1

WARNING DECAL

1шт.

6

435798A1

DECAL

Top Lube Fittings

1шт.

7

448845A2

SHEET

SHEET, Engine Shield

1шт.

8

426592A4

CHANNEL

Door and Hood Support, Left Hand

1шт.

13

418212A3

SUPPORT

Rear

1шт.

14

173881C1

DECAL

Important, Clean Engine

1шт.

15

426711A2

SHIELD

Lower Rear

1шт.

16

87422857

SUPPORT

1шт.

17

451410A2

SHIELD

Lower Rear

1шт.

18

426605A1

SUPPORT

Engine Shield

1шт.

19

160638C2

HANDLE

3шт.

20

445183A2

HANDRAIL

Service Deck

1шт.

21

448274A2

HANDRAIL

Service Deck

1шт.

22

448354A1

BRACKET

Cylinder Lockout

1шт.

23

445549A1

SUPPORT

Dearation Tank Support

1шт.

24

446346A1

GAS STRUT

Engine Door Lift

2шт.

25

1340345C1

BALL STUD

BALL PIN

4шт.

26

427-4077

CLEVIS PIN,1/4" x .770"

1шт.

27

136-164

COTTER PIN,Int, 5/16" x .120"

5/16

1шт.

28

L105124

LATCH HOOK

2шт.

29

188103C2

BRACKET

Hook Anchor

2шт.

30

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

2шт.

31

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

32

494307C1

LATCH

2шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

34

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

38

167800C1

CLIP

Door Retainer

4шт.

39

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

40

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

41

304311A1

ANGLE

Engine Deck Rear

1шт.

42

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 1/16

11шт.

44

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

No. 10 x 1/2

2шт.

45

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

46

488837C1

SPRING NUT

Speed, 5/16

2шт.

47

231-5315

FLANGE NUT,Flg, 5/16"-18

1шт.

49

87413005

SEAL, Cut 1554 mm (61-3/16 in) From 195917C2

1шт.

50

426957A1

BRACKET

Engine Door Lift Cylinder

1шт.

51

1330168C1

SEAL

2шт.
