Запчасти Case IH 2366 (09H-01[01]) - SHIELD, ENGINE - DECK, SERVICE - BSN JJC0255700 (12) - CHASSIS

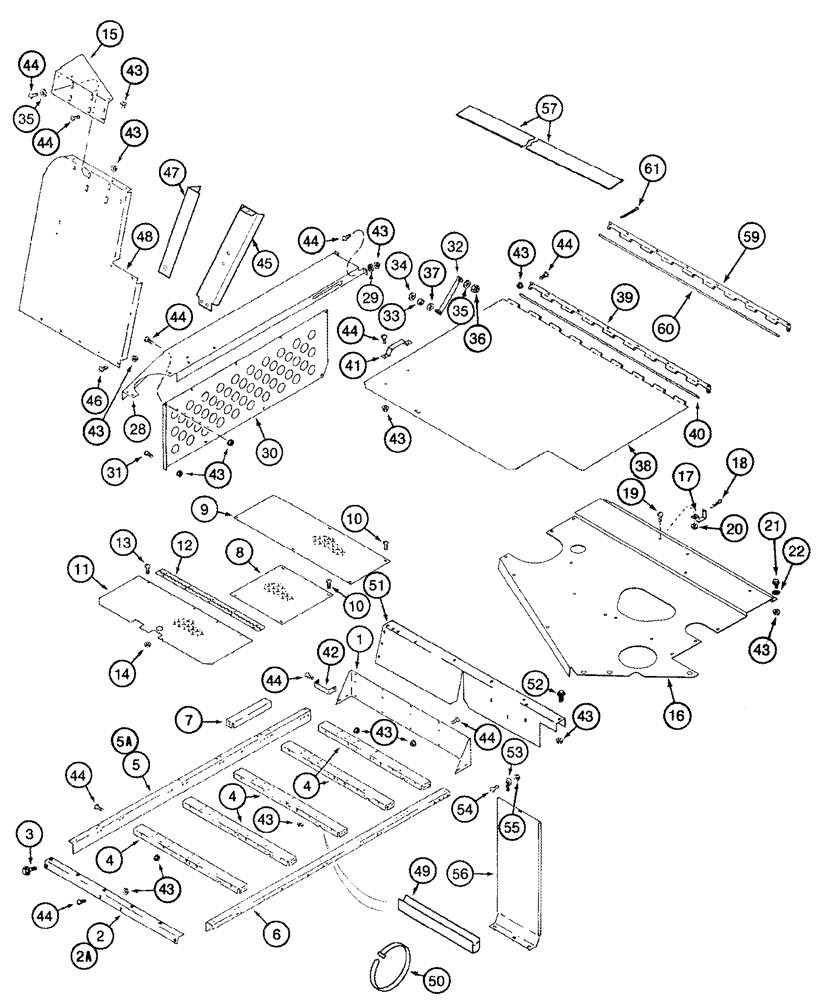

Схема запчастей Case IH 2366 - (09H-01[01]) - SHIELD, ENGINE - DECK, SERVICE - BSN JJC0255700 (12) - CHASSIS
3
48
43
52
56
30
17
4
10
43
28
35
43
44
5a
11
44
39
45
40
59
43
1
43
6
13
53
44
44
43
44
4
47
33
57
43
36
2a
7
49
35
43
42
4
22
19
50
44
5
9
20
55
38
43
46
61
43
8
12
41
15
10
54
34
2
29
44
60
21
18
32
51
31
44
14
16
43
44
37
43
44

Артикул

Название

Примечание

Количество

1

193435C3

SUPPORT

1шт.

2

193146C4

ANGLE

Rear, Serial Range: -JJC0184608

1шт.

2a

304311A1

ANGLE

Rear, Start Serial: JJC0184609

1шт.

3

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

4

192959C6

SUPPORT

5шт.

5

143344A1

ANGLE

Left Hand, Serial Range: -JJC0184608

1шт.

5a

304312A1

ANGLE

Left Hand, Start Serial: JJC0184609

1шт.

6

192960C7

ANGLE BAR

Right Hand

1шт.

7

1979830C1

SUPPORT

1шт.

8

1979827C2

PLATE

1шт.

9

1979874C1

PLATE

Front

1шт.

10

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4 x 1/2

10шт.

11

1977155C3

DOOR

3шт.

12

186695C1

HINGE

3шт.

13

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

30шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

30шт.

15

1330481C2

SUPPORT

Manifold Bulkhead Fitting, LH Rear

1шт.

16

282411A1

COVER

Upper Rear, Includes Decal, See Figure(s) 09H-21, Ref. 12; 09H-22, Ref. 10, Serial Range: -JJC0254999

1шт.

16

441753A1

COVER

Upper Rear, Start Serial: JJC0255000

1шт.

17

303576A2

SUPPORT

1шт.

18

480523R1

HAIR PIN COTTER

1шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

21

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

9шт.

22

495-81002

WASHER,3/8"

7/16 x 1-3/8 x 5/64

2шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Not Illustrated

3шт.

24

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

Not Illustrated

1шт.

25

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16"), Not Illustrated

1шт.

26

PO22778

SPACER,1/4" Pipe x 2"

Not Illustrated

1шт.

27

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Not Illustrated

1шт.

28

1541854C3

SUPPORT

1шт.

29

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

11/32 x 1-1/4 x 1/16

1шт.

30

1302703C2

SHEET ASSY.

1шт.

31

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

3шт.

32

1302413C1

PROP

1шт.

33

568257R1

SPACER,1/2" Tube x 3/8"

1шт.

34

495-81024

WASHER,17/32" x 1 1/4" x .060"

17/32 x 1-1/4 x 1/16

1шт.

35

495-81117

WASHER,.344" x 1" x .120"

11/32 x 1 x 7/64

3шт.

36

231-5315

FLANGE NUT,Flg, 5/16"-18

2шт.

37

567532R1

WASHER

21/64 x 1/2 x 5/32

1шт.

38

195103A2

DOOR

1шт.

39

194477C2

HINGE

No Longer Used, Order 304520A1, See Ref. 59

1шт.

40

194478C1

ROD

No Longer Used, Order 304522A1, See Ref. 60

1шт.

41

160638C2

HANDLE

Replaces: 160638C1

1шт.

42

188419C1

CHANNEL

Manifold Bulkhead Fitting, Left Hand Rear

1шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

44

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

45

237715A1

SUPPORT

Rear, Left Hand

1шт.

46

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

47

237716A1

BRACKET

Rear

1шт.

48

1347130C2

SHEET

Left Hand Rear, Inc. Decal, See Figure 09H-21, Ref. 17

1шт.

49

1327979C1

MOLDING

152 mm (6 in.), Cut From 1330108CX

1шт.

50

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Replaces 702093C1

1шт.

51

195102A4

SUPPORT

1шт.

52

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

53

167800C1

CLIP

2шт.

54

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

55

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

56

1977286C3

SUPPORT

1шт.

57

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25 in) x 51 mm (2 in)

5шт.

58

143347A1

LATCH

Australia Only, Not Illustrated

1шт.

59

304520A1

HINGE

1шт.

60

304522A2

STEM

1шт.

61

432-816

COTTER PIN,1/8" x 1"

1шт.
