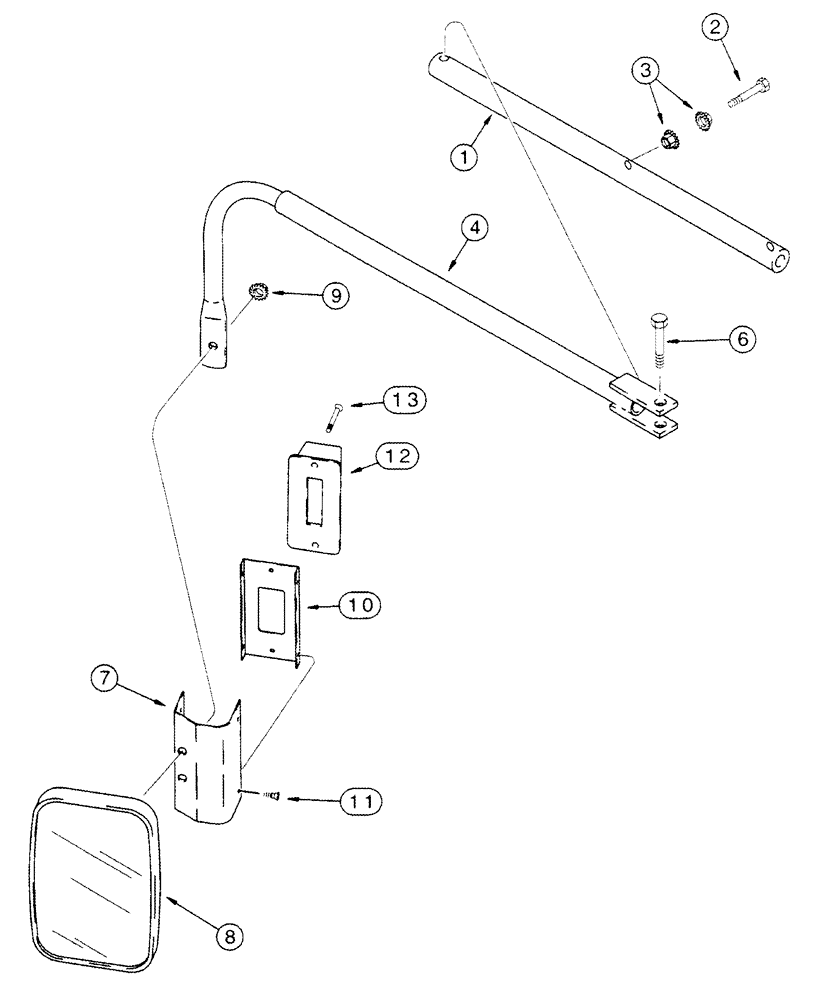

1
178325A2
SUPPORT TUBE,12.5 mm ID, 38.1 mm OD
2шт.
2
614-12060
BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd
4шт.
3
825-51412
FLANGE NUT,M12, Flg Ser
4шт.
4
178591A3
SUPPORT
Left Hand
1шт.
5
178342A3
SUPPORT
Right Hand, Not Illustrated
1шт.
6
814-12065
BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8
2шт.
7
291911A1
SUPPORT
2шт.
8
1283403C1
MIRROR
2шт.
9
122379A1
FLANGE NUT
3/8
2шт.
10
127960A1
SUPPORT
2шт.
11
1321447C1
SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL
8шт.
12
130882C91
LAMP
See Figure 04-33
2шт.
13
1974614C2
SELF-TAP SCREW,Cross Pan Hd, #10-24 x 2 1/4"
4шт.
