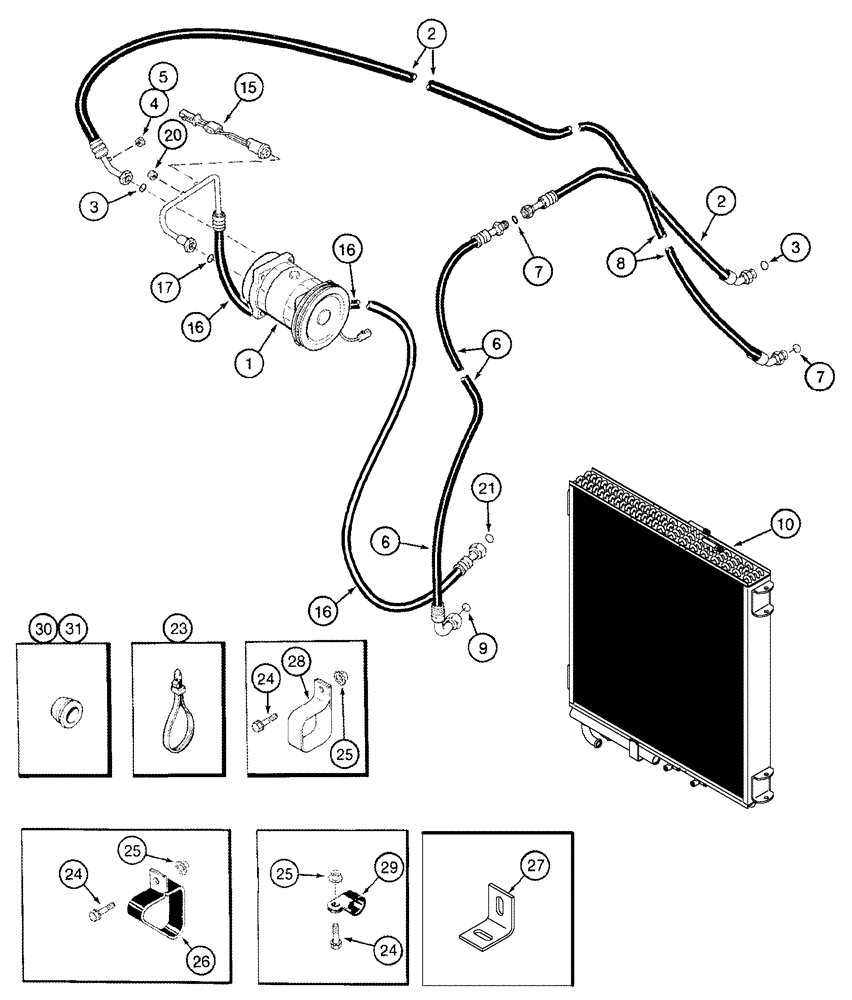

Запчасти Case IH 2366 (09G-24[02]) - HEATER, AIR CONDITIONING - COMPRESSOR TO CONDENSER AND CAB/CHASSIS CONNECTIONS - ASN JJC0255700 (10) - CAB & AIR CONDITIONING

1

86993462

AIRCOND. COMPRESSOR

See Figure 09G-25

1шт.

1

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

1

86993462R

REMAN-COMPRESSOR

2366 ASN JJC0255700 (1/98-8/04)

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

2

279158A1

HOSE

Inc. 3 - 5, Serial Range: Cab-Compressor

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

4

1250594C2

CORE

1шт.

5

122553A1

CAP

1шт.

6

87403248

HOSE

3790 mm (149-1/4 in), Inc. 7, Condenser, Serial Range: Outlet-Cab

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

8

279159A1

HOSE

Inc. 9, Serial Range: Cab-Condenser

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

10

416766A2

COOLER

Condenser

1шт.

15

369798A2

SWITCH

High Pressure

1шт.

16

86987816

HOSE

3950 mm (155-1/2 in), Inc. 17 - 22, Serial Range: Compressor-Condenser

1шт.

17

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

18

414082A1

CORE

Valve High Flow

1шт.

19

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

High Flow

1шт.

20

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

21

1250594C2

CORE

Valve

1шт.

22

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15"

1шт.

23

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" TIE

1шт.

24

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

5/16 x 1; 5

2шт.

24

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4; 5

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

25

231-5146

FLANGE NUT,3/8"-16

4шт.

26

1994983C2

CLAMP

3шт.

27

1301560C2

STIFFENER

1шт.

28

1301387C2

CLIP

2 in ID

4шт.

29

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

(M33.3 ID)

2шт.

29

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

(47.6 mm)

4шт.

30

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

31

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.
