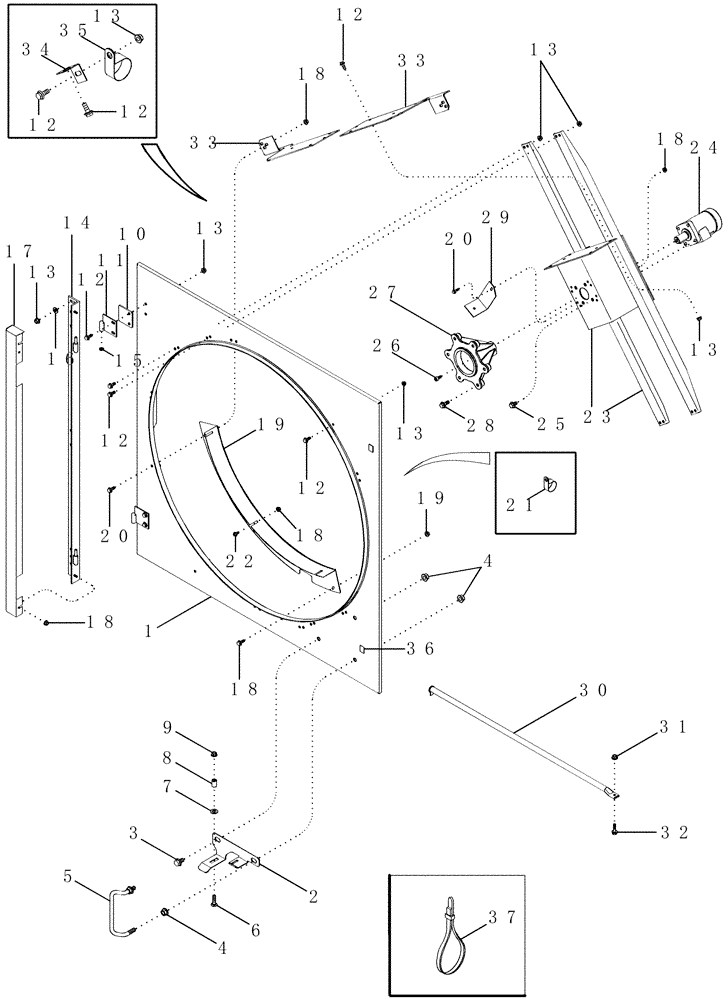

Запчасти Case IH 2366 (02-05[02]) - ROTARY AIR SCREEN METAL DOOR ASSY - ASN JJC0255700 (01) - ENGINE

1

87413638

DOOR

Cooler Access, Serial Range: JJC0255700-JJC0256341

1шт.

1

87430947

DOOR

Cooler Access, Start Serial: JJC0256400

1шт.

2

87413881

GUIDE

Door Latch

1шт.

3

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2 x 3/4

1шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

5

1329715C1

HANDLE

1шт.

6

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2

1шт.

7

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

17/32 x 1 x 1/16

1шт.

8

186646C1

SPACER,5/8" Tube x 15/16"

1шт.

9

231-5146

FLANGE NUT,3/8"-16

1шт.

10

87430707

SPACER

Hinge, Start Serial: JJC0256400

2шт.

11

87417094

HINGE

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

28шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

28шт.

14

87413905

HINGE

, Serial Range: JJC0255700-JJC0256341

1шт.

14

87425804

HINGE

Shown, Start Serial: JJC0256400

1шт.

15

86985597

WASHER,8.1mm ID x 13.5mm OD x 2mm Thk

Special, Start Serial: JJC0256400

2шт.

16

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 1/16

7шт.

17

87413836

COVER

Door Hinge, Serial Range: JJC0255700-JJC0256341

1шт.

17

87425802

COVER

Door Hinge, Shown, Start Serial: JJC0256400

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

9шт.

19

87412953

BRACKET

Blockoff Assy

1шт.

20

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4

6шт.

21

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

22

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

23

87413830

SUPPORT

1шт.

24

435624A1

HYDRAULIC MOTOR

Rotary Screen, See Figure 08-42

1шт.

435624A1R

REMAN-HYD MOTOR

2366 (NA) ASN JJC0255700 (1/98-8/04)

1шт.

435624A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

25

87021006

BOLT,M10 x 26.4mm, Cl 10.9

M10 x 16; 10.9

4шт.

26

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

1шт.

27

87413134

HUB

Rotary Air Screen

1шт.

28

857-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

M10 x 25; 10.9

6шт.

29

87412956

SUPPORT

Inner Baffle

1шт.

30

87413898

SUPPORT

Screen Door

1шт.

31

427-4077

CLEVIS PIN,1/4" x .770"

, Serial Range: -JJC0256341

1шт.

31

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1/4 x 3/4, Start Serial: JJC0256400

1шт.

32

432-412

COTTER PIN,1/16" x 3/4"

, Serial Range: -JJC0256341

1шт.

32

231-4144

NUT,1/4"-20, GB

, Start Serial: JJC0256400

1шт.

33

87413927

SUPPORT

2шт.

34

1301560C2

STIFFENER

1шт.

35

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

, Serial Range: -JJC0256341

1шт.

36

86984222

PAD

2шт.

37

306132C1

CABLE TIE,14.5" L

CABLE STRAP 15 in

1шт.
