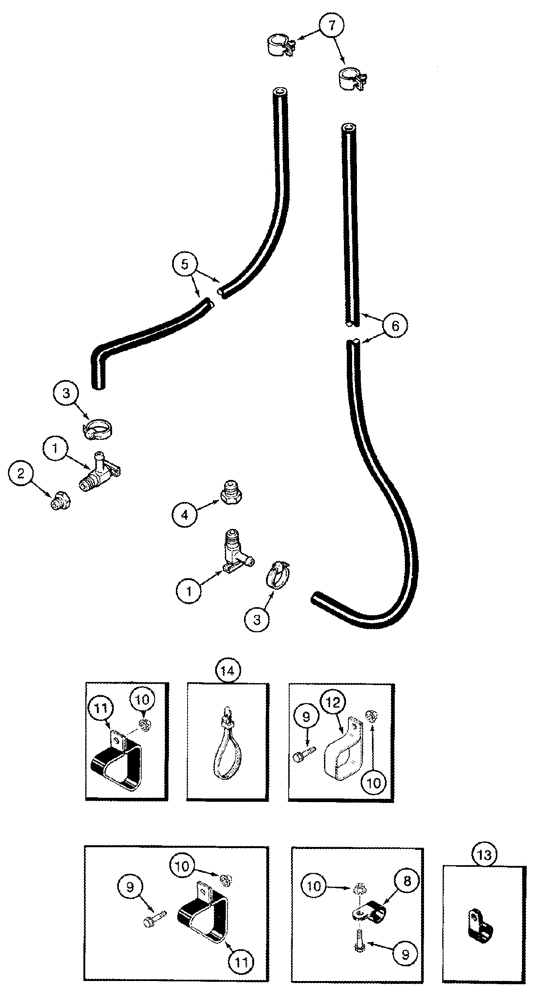

Запчасти Case IH 2366 (09G-22[01]) - HEATING SYSTEM - CAB/CHASSIS CONNECTIONS TO ENGINE - BSN JJC0255700 (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

2шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

3

1954736C1

HOSE CLAMP,#24

2шт.

4

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

3/4 male x 3/8 fem PT

1шт.

5

122099A3

HEATER HOSE,15.5mm ID x 4470mm L

HOSE 4394 mm (173 in.) Cut From 97252CX

1шт.

6

122102A2

HEATER HOSE,15.50 mm ID x 6858.00 mm

Cut From Bulk

1шт.

7

1954736C1

HOSE CLAMP,#24

2шт.

8

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

11

1994983C2

CLAMP

3шт.

12

1301387C2

CLIP

2 in. ID

5шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

14

306132C1

CABLE TIE,14.5" L

CABLE STRAP Tie, 14"

1шт.
