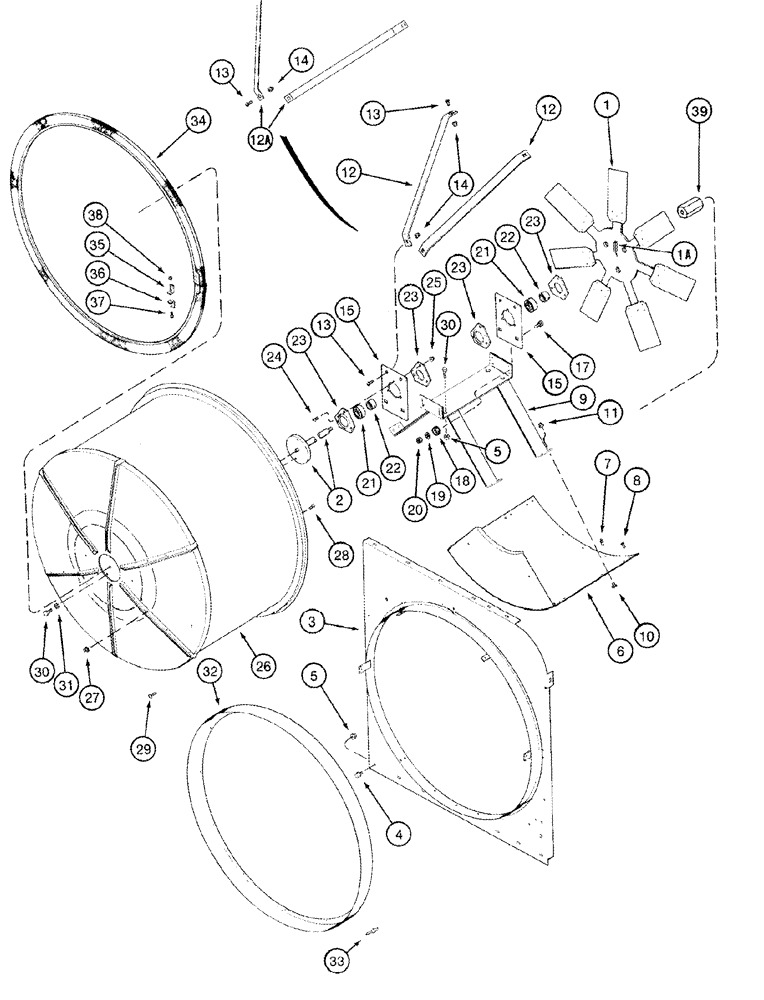

Запчасти Case IH 2366 (02-05[01]) - ROTARY AIR SCREEN - BSN JJC0255700 (01) - ENGINE

1347257C1

FAN,7 Blades, 685.8mm OD

Includes: Ref. 1 & 1A

1шт.

1

1957272C2

FAN

1шт.

1a

Q5024

KEY,3/16" Sq x 1", Par

1шт.

2

234067A3

SHAFT

1шт.

3

1317755C6

ADAPTER

1шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

17шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

23шт.

6

194224C1

BAFFLE ASSY.

1шт.

7

151-558

RIVET,Pop, 3/16" x .450"

3/16 x 1/2

3шт.

8

104235

RIVET,FH, 3/16" x 1/2"

4шт.

9

234279A1

SUPPORT

1шт.

10

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

8шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

12

194221C2

STAY

2шт.

12a

175258A1

SUPPORT

2шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

15

164605C1

LARGE PLATE

PLATE, LARGE

2шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

18

495-81112

WASHER,.344" x 3/4" x .120"

11/32 x 3/4 x 7/64

4шт.

19

492-11031

LOCK WASHER,5/16"

4шт.

20

425-105

NUT,5/16"-18, G5

4шт.

21

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

2шт.

22

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

2шт.

23

H333534

FLANGED BEARING

4шт.

24

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

26

279083A1

SCREEN

Includes: Ref. 27 - 29

1шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

28

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

6шт.

29

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

12шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

32

1338011C1

SEALING RING

1шт.

33

151-509

RIVET,Pop, 3/16" x .325"

3/16 x 5/16

12шт.

34

164615C92

BRUSH, COMMUTATOR

BRUSH Includes: Ref. 35 - 38

1шт.

35

164616C1

ANGLE

1шт.

36

164617C1

ANGLE

1шт.

37

463-11016

SCREW,Hex Hd, #10-24 x 1"

1шт.

38

86625057

NUT,#10-24, GB

1шт.

39

106666A1

SPECIAL NUT

3/8

1шт.
