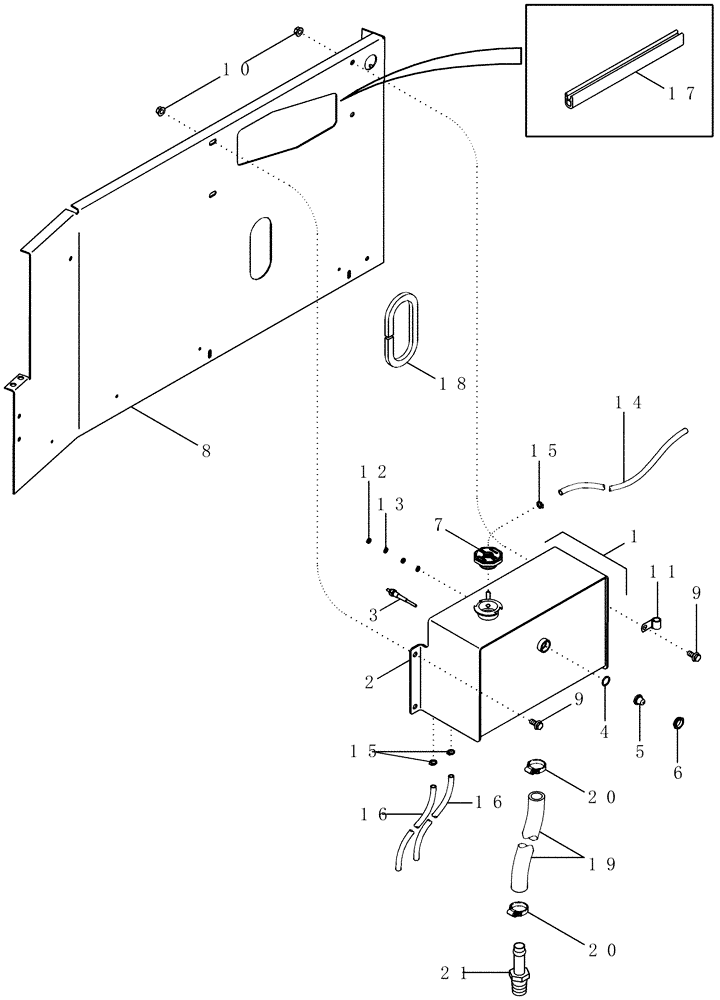

Запчасти Case IH 2366 (02-04[02]) - DEAERATION SYSTEM - ASN JJC0255700 (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

Deaeration Assy, Includes 2 - 6,Order 87640724

1шт.

2

87403850

TANK

Deaeration

1шт.

3

279476A1

SENSOR

Coolant Probe

1шт.

4

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

5

86990536

LENS

Sight

1шт.

6

86990537

NUT,15/16"

Lens Retainer

1шт.

7

87109814

FILLER CAP

Deaeration Tank

1шт.

8

418212A3

SUPPORT

Rear

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

12

225-14210

NUT,#10-32

2шт.

13

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

14

87408617

HOSE,7.92mm ID x 4850mm L

Cut From 86989959

1шт.

15

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

3шт.

16

86989649

HYDRAULIC HOSE,8.00 mm ID x 900.00 mm

Deaeration, Cut 900 mm (35-3/8") from Bulk Hose 86989959

2шт.

17

87029779

SEAL

Cut 287 mm (11-5/16 in) From196707C1

2шт.

18

87063C3

SEAL

Cut 422 mm (16 in) from 196707C1

1шт.

19

87404884

HOSE

Deareation Supply, Cut 940 mm (37 in) From Bulk Hose 86989961

1шт.

20

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

21

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.
