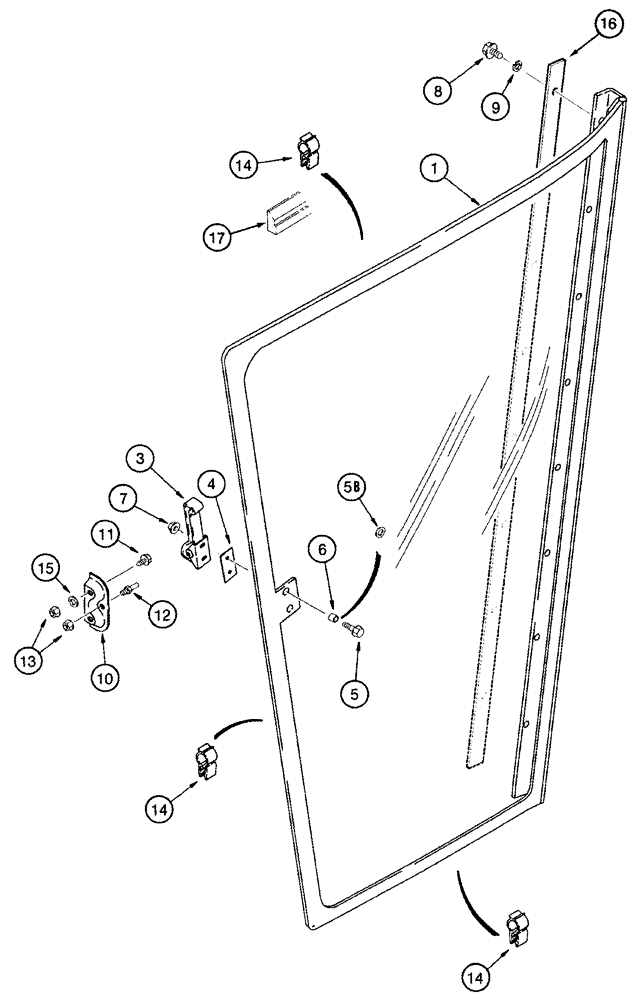

Запчасти Case IH 2366 (09G-04) - CAB - DOOR ASSY, RIGHT HAND (10) - CAB & AIR CONDITIONING

1

186390A2

GLASS

RH

1шт.

3

1955184C1

LEVER

1шт.

4

194190A2

GASKET,3.2mm Thk

1шт.

5

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

M6 x 20

2шт.

5b

225913A1

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

2шт.

6

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

2шт.

7

97005C1

FLANGE NUT

M6

2шт.

8

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

8шт.

9

492-11010

LOCK WASHER,#10

8шт.

10

117723A2

SUPPORT

1шт.

11

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

12

117724A1

PIN,10mm OD x 37.8mm L

1шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

14

234089A1

DOOR SEAL

4483 mm (176-1/2 in.)

1шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

16

193316A1

SHIM

1шт.

17

232801A1

DOOR SEAL

DOOR, 1016 mm (40 in.)

1шт.
