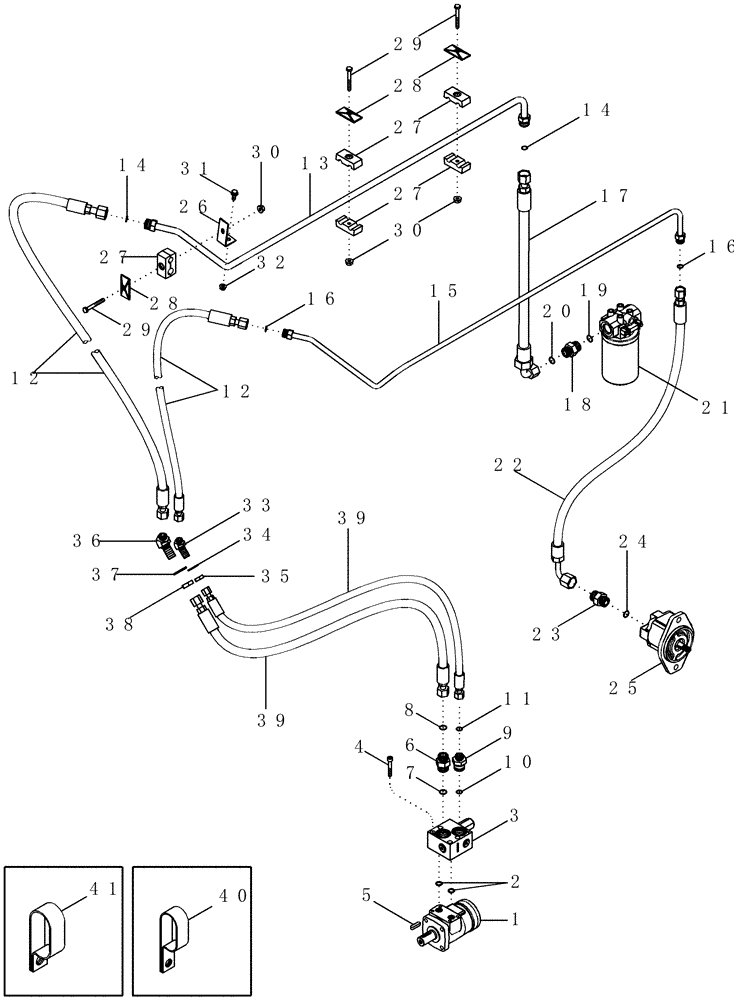

Запчасти Case IH 2366 (08-42) - HYDRAULICS - ROTARY AIR SCREEN CIRCUIT - ASN JJC0255700 (07) - HYDRAULICS

1

435624A1

HYDRAULIC MOTOR

Rotary Air Screen

1шт.

435624A1R

REMAN-HYD MOTOR

2366 (NA) ASN JJC0255700 (1/98-8/04)

1шт.

435624A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1a

1542724C1

SEAL KIT

1шт.

2

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

3

REF

INSTRUCTION

VALVE, Pressure Relief, No Longer Available, See Figure 08-43

1шт.

4

864-8050

HEX SOC SCREW,M8 x 50mm, Cl 8.8

M8 x 50; 8.8

4шт.

5

906093R1

KEY,M8 x 7 x 32, Par

1шт.

6

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

16 mm fs tube OD, Incl 7, 8

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/8 ID x 1/16

1шт.

9

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

12 mm fs x 27 mm OR, Incl. 10, 11

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/8 ID x 1/16

1шт.

12

87404065

HYDRAULIC HOSE

Tube To Valve

2шт.

13

86988835

TUBE,0.625" OD

Return

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

15

86988834

TUBE,0.50" OD

Supply

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

87417699

HYDRAULIC HOSE,635 mm L

Tube To Filter

1шт.

18

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 19, 20

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

REF

INSTRUCTION

Filter Assy

1шт.

22

370255A1

HOSE

PumpTo Tube

1шт.

23

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

REF

INSTRUCTION

Pump Hydraulic

1шт.

26

135355A1

SUPPORT TUBE,79, 40 mm Length

Center

1шт.

27

109619A1

CLAMP

3шт.

28

1347127C1

PLATE

Tube Clamp

3шт.

29

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

30

231-5315

FLANGE NUT,Flg, 5/16"-18

3шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

33

201-382

ELBOW,45 Degree, 13/16"-16 Blkhd, ORFS

1/2" Tube OD, Incl 28

1шт.

34

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

29/32 x 1-1/2 x 1/8

2шт.

35

201-903

TUBE NUT,Blkhd, 13/16"-16

1/2 tube

1шт.

36

87017731

ELBOW,45 Degree, 1"-14 Blkhd, ORFS

45 deg, 5/8 blkhd

1шт.

37

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1-1/32 x 1-1/2 x 1/8

2шт.

38

201-919

BHD LOCK NUT,1" - 14

5/8" OD Tube

1шт.

39

86987926

FLEXIBLE HOSE

1800 mm (70-7/8 in), Motor Pressure

2шт.

40

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

41

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

42

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in, Not Illustrated

1шт.
