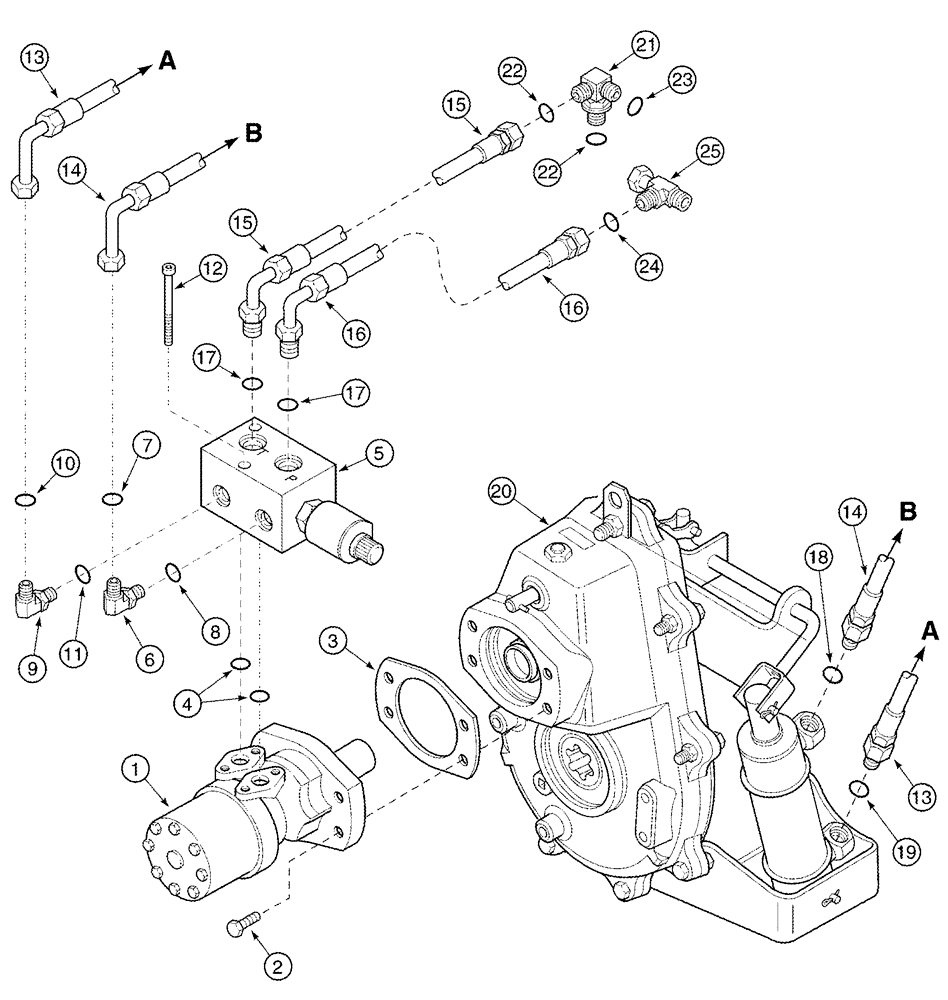

Запчасти Case IH 2366 (08-39) - HYDRAULICS - FEEDER REVERSER - ASN JJC0254000 (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
393903A1
MOTOR, HYDRAULIC,397CC
See Figure 08-40
1шт.
3
400998A1
GASKET,0.79mm Thk
1шт.
4
238-6117
O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro
2шт.
5
393904A1
VALVE
Feeder Reverser Motor, See Figure 08-41
1шт.
6
201-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Inc. 7, 8
1шт.
7
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
8
238-6006
O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro
1шт.
9
201-332
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 10, 11
1шт.
12
865-8085
HEX SOC SCREW,M8 x 85mm, Cl 8.8
M8 x 85
2шт.
13
391969A1
FLEXIBLE HOSE,10mm ID x 750mm L
Extend, 750 mm (29-1/2 in.)
1шт.
14
391970A1
FLEXIBLE HOSE,10mm ID x 610mm L
Retract, 610 mm (24 in.)
1шт.
15
401534A1
HOSE
Return, 610 mm (24in.)
1шт.
16
395852A2
HOSE
3200 mm (126 in.), Serial Range: -JJC0254999
1шт.
16
430394A1
FLEXIBLE HOSE
Supply, 3050 mm (120 in.), Start Serial: JJC0255000
1шт.
17
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
2шт.
20
401134A2
GEARBOX
See Figure 09A-28
1шт.
21
395408A1
TEE
Inc. 22, 23
1шт.
22
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
2шт.
23
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
24
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
25
201-433
TEE,1"-14 ORFS x 1"-14 Sw Run
1шт.
26
427273A1
SUPPORT
Hose Clamp
1шт.
27
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
Not Illustrated
1шт.
28
231-5146
FLANGE NUT,3/8"-16
Not Illustrated
1шт.
11
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
18
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
19
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 29
