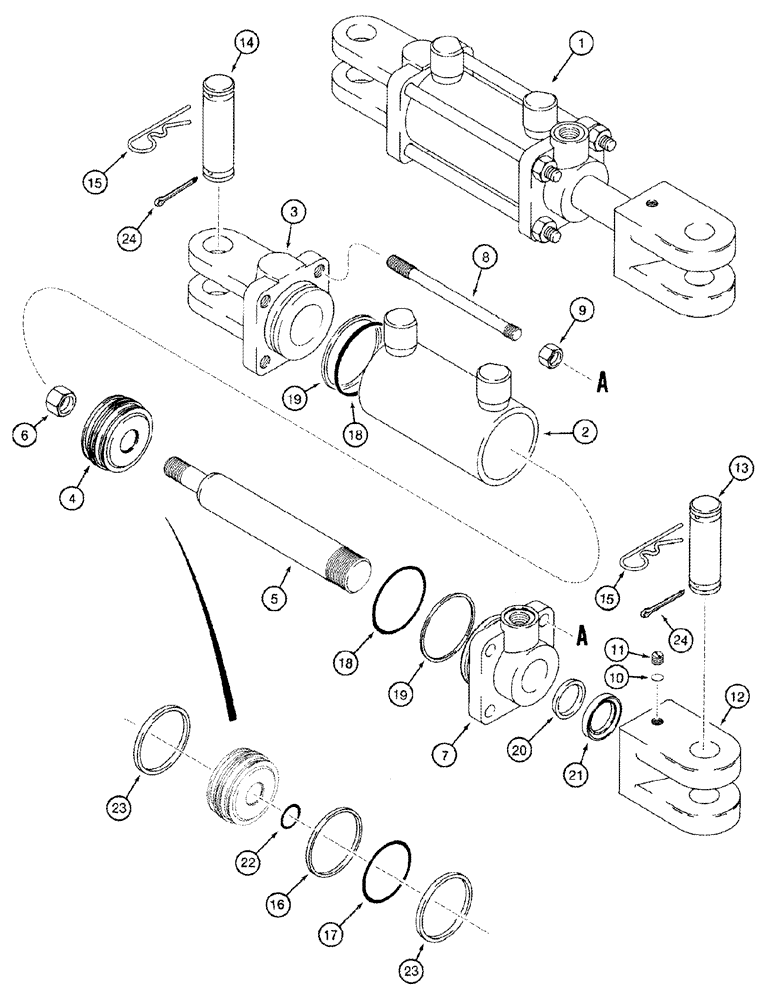

Запчасти Case IH 2366 (08-38) - CYLINDER ASSY - FIELD TRACKER, TILT (07) - HYDRAULICS

1

100267A1

CYLINDER

Field Tracker Tilt, 64 ID x 89 mm strk, Inc. 2 - 23

1шт.

87424022R

REMAN-HYD CYLINDER

2366 (1/98-8/04), Reman For New P/N: 100267A1

1шт.

87424022C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE

1шт.

3

107855A1

JACK HEAD

1шт.

87424022R

REMAN-HYD CYLINDER

2366 (1/98-8/04), Reman For New P/N: 107855A1

1шт.

87424022C

CORE-HYD CYLINDER

Return Number

1шт.

4

107856A1

JACK PISTON

1шт.

5

107857A1

PISTON ROD

1шт.

87424022R

REMAN-HYD CYLINDER

2366 (1/98-8/04), Reman For New P/N: 107857A1

1шт.

87424022C

CORE-HYD CYLINDER

Return Number

1шт.

6

232-46112

LOCK NUT,3/4"-16, GC

1шт.

7

107858A1

JACK HEAD

1шт.

8

107859A1

BOLT

7/16 x 7-3/4

4шт.

9

425-107

NUT,7/16"-14, G5

4шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

1шт.

11

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, 3/8 x 3/8

1шт.

12

107860A1

RAM FORK

1шт.

87424022R

REMAN-HYD CYLINDER

2366 (1/98-8/04), Reman For New P/N: 107857A1

1шт.

87424022C

CORE-HYD CYLINDER

Return Number

1шт.

13

1266753C1

PIN,25.4mm OD x 96.83mm L

1шт.

14

1266752C1

PIN,25.4mm OD x 88.11mm L

1шт.

15

1978738C1

HAIR PIN COTTER

3/16"

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

2шт.

19

NSS

NOT SOLD SEPARAT

RING

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING

1шт.

23

NSS

NOT SOLD SEPARAT

RING

2шт.

24

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

100266A1

SEAL KIT

Inc. 16 - 23

1шт.
