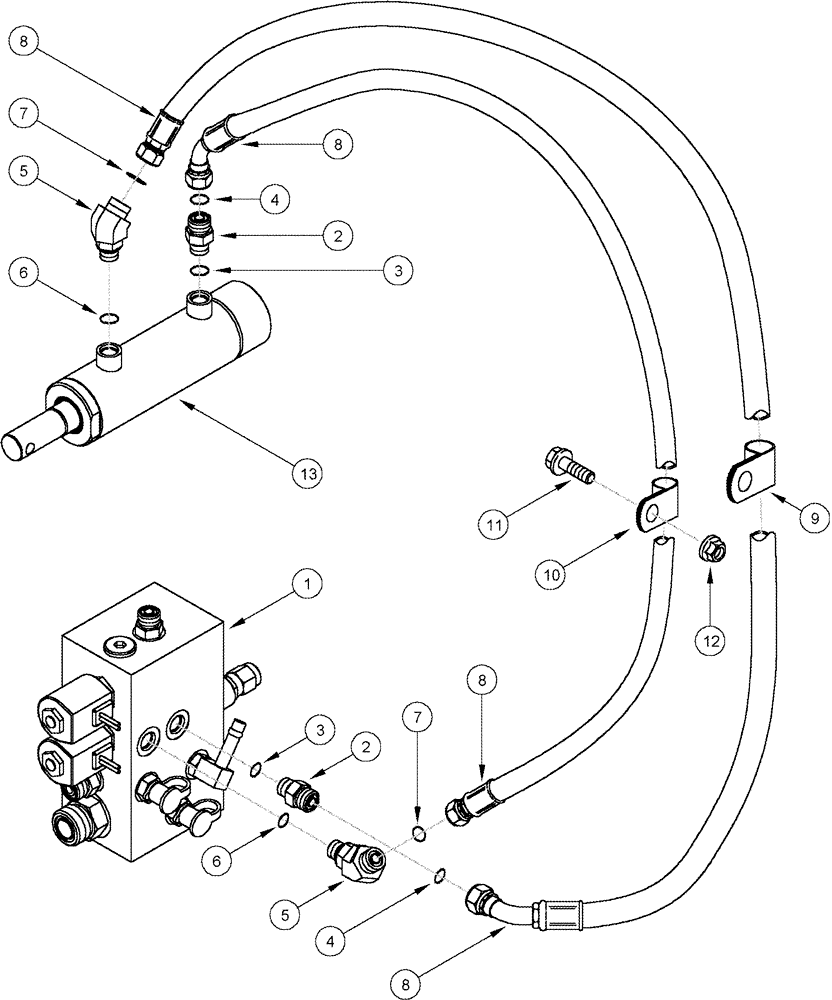

Запчасти Case IH 2366 (08-28) - HYDRAULICS - SEPARATOR CLUTCH - ASN JJC0254000 (07) - HYDRAULICS

1

384307A1

SOLENOID VALVE

Separator Clutch, See Figure 08-32

1шт.

2

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 3, 4

2шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

3/4 x 13/16, Inc. 6, 7

2шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

390011A1

FLEXIBLE HOSE

760 mm (30 in.)

2шт.

9

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

10

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

11

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

Separator Clutch, 51 ID x 318 mm strk, See Figure 08-33

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
