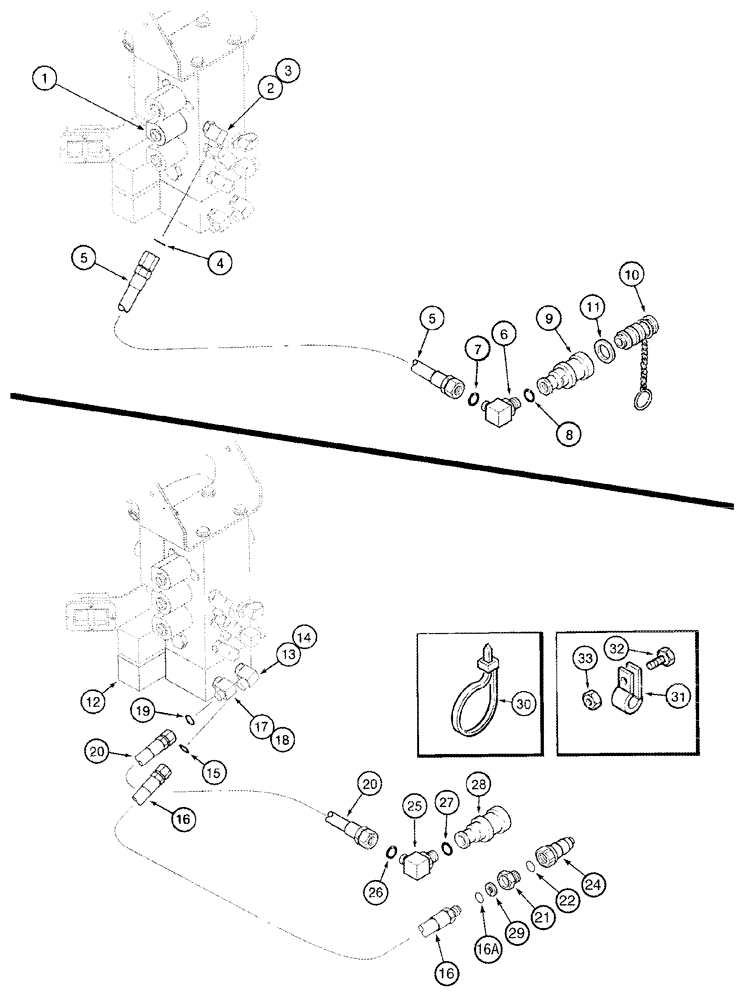

Запчасти Case IH 2366 (08-25) - HYDRAULICS - REEL FORE/AFT AND LIFT (07) - HYDRAULICS

1

124566A3

VALVE, CONTROL

Header Lift With Reel Fore and Aft, See Figure(s) 08-14, 08-17

1шт.

2

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Includes Ref. 3, 4

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

128029A1

HOSE

Reel Lift, 2900 mm (114-1/4 in.), Serial Range: -JJC0255699

1шт.

5

430392A1

FLEXIBLE HOSE

HOSE, 2750 mm (108-1/4 in), Reel Lift, Start Serial: JJC0255700

1шт.

6

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 7, 8, Serial Range: -JJC0255699

1шт.

6

430494A1

ELBOW

90 deg, Inc. 7A, Start Serial: JJC0255700

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Not Illustrated

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

1282338C91

COUPLING, QUICK, FEM

Self-Sealing, 7/8 NF

1шт.

10

1954133C1

PLUG

Coupling, Dust, Inc. 11

1шт.

11

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1шт.

134112A2

VALVE

Field Kit, Reel Fore and Aft, Inc. 12 - 33, Serial Range: -JJC0255699

1шт.

12

131153A2

CONTROL VALVE

Reel Fore and Aft, See Figure 08-17

1шт.

13

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 14, 15

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

258309A1

HOSE,6.35mm ID x 3825mm L

Reel Aft, 3825 mm (150-5/8 in.), Inc. 16A, Serial Range: -JJC0255699

1шт.

16

430393A1

FLEXIBLE HOSE

Reel Aft, 3675 mm (144-5/8 in.), Inc. 16A, Start Serial: JJC0255700

1шт.

16a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

17

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Includes Ref. 18, 19

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

128029A1

HOSE

Reel Fore, 2900 mm (114-1/4 in.), Serial Range: -JJC0255699

1шт.

20

430488A1

FLEXIBLE HOSE

Reel Fore, 2650 mm (104-3/8 in.), Inc. 20A, Start Serial: JJC0255700

1шт.

20a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Not Illustrated

1шт.

21

196443A1

REDUCER

7/16 fem x 7/8 in, Inc. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

1272399C2

QUICK MALE COUPLING

Self-Sealing, male, 7/8 NF

1шт.

25

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 26, 27, Serial Range: -JJC0255699

1шт.

25

430494A1

ELBOW

Inc. 26 & 27, Start Serial: JJC0255700

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

1282338C91

COUPLING, QUICK, FEM

Self-Sealing, 7/8 NF

1шт.

29

1541792C1

WASHER

Red, Special

1шт.

30

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 inch

1шт.

31

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

32

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.
