Запчасти Case IH 2366 (08-21) - HYDRAULICS - REEL DRIVE - BSN JJC0253999 (07) - HYDRAULICS

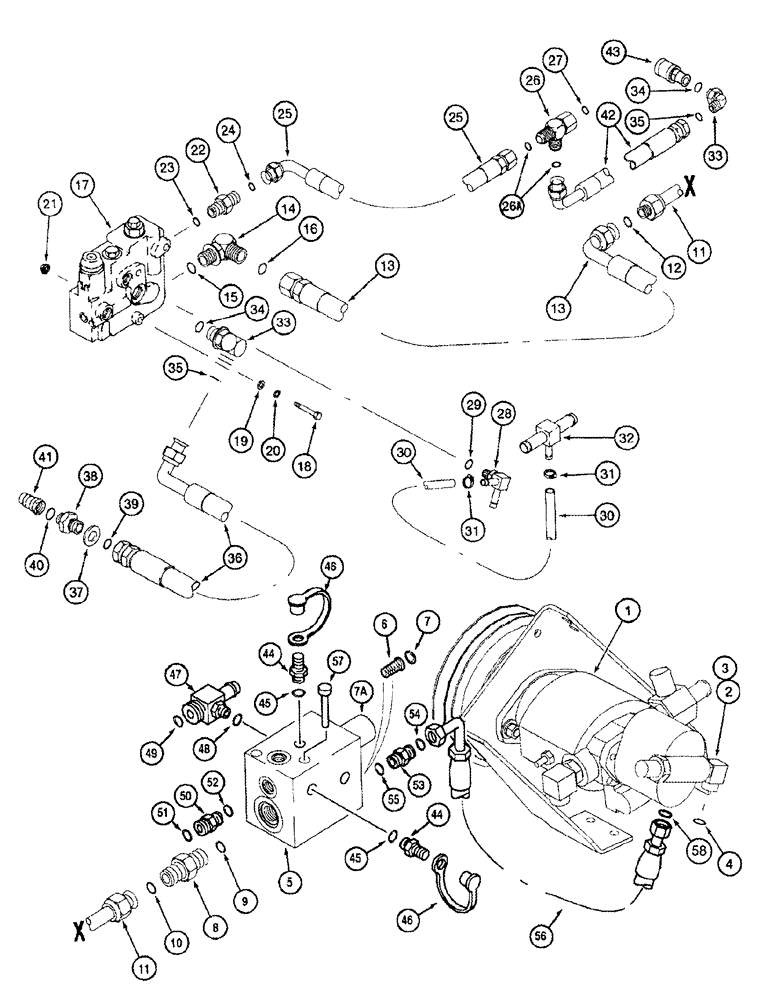

Схема запчастей Case IH 2366 - (08-21) - HYDRAULICS - REEL DRIVE - BSN JJC0253999 (07) - HYDRAULICS
28
50
31
44
27
7
9
46
25
11
35
49
47
8
45
4
11
26a
14
37
15
30
58
29
21
19
38
43
13
56
34
57
48
13
23
51
36
7a
45
2
12
17
40
39
31
22
53
54
20
18
41
52
35
10
6
46
3
16
25
34
32
26
33
42
33
5
44
55
1
30
24

Артикул

Название

Примечание

Количество

1

123266A2

PUMP, HYDRAULIC

Auxiliary, See Figure 08-22

1шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 3, 4

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

233738A1

VALVE

Pressure Regulator, Inc. 6 - 7B, Serial Range: -JJC0252949

1шт.

5

233738A2

VALVE

Pressure Regulator, Inc. 6 - 7B, Start Serial: JJC0252950

1шт.

6

241892A1

FILTER SCREEN

1шт.

7

100-2187

SNAP RING,0.875", Int, #87

1шт.

7a

222894A1

VALVE POPPET

Pressure Reducing, Inc. 7B, Serial Range: -JJC0252949

1шт.

7a

377593A1

VALVE PRESSURE RELIE

Reducing, Inc. 7B, Start Serial: JJC0252950

1шт.

7b

190709A1

SEAL KIT

Valve Cartridge, Not Illustrated

1шт.

8

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 9, 10

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

124368A1

HYD TUBE

Reel Drive Supply

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

135827A2

FLEXIBLE HOSE

Reel Drive Valve Supply, 680 mm (26-7/8 in.)

1шт.

14

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1-3/16 fc x 1-1/16, Inc. 15, 16

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

17

114856A3

CONTROL VALVE

Reel Drive, Control, See Figure(s) 08-22, 08-24

1шт.

18

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3/8 x 3-1/2

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 23, 24

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

25

128036A1

FLEXIBLE HOSE,19.05mm ID x 640mm L

Reel Drive Valve Return, 640 mm (25-1/4 in.)

1шт.

26

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

Inc. 26A

1шт.

26a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

113896A1

TEE

For Attaching Parts, See Figure 07-05, Ref. 30, Inc. 29

1шт.

30

128037A2

HYDRAULIC HOSE,9.52 mm ID x 405.00 mm

Reel Drive Valve Case Drain, Cut from S118400X

1шт.

31

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

32

177975A1

TEE

5/8 x 3/8 x 5/8, For Attaching Parts, See Figure 08-22, Ref. 32

1шт.

33

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 34, 35

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

36

258308A1

HOSE,12.7mm ID x 3470mm L

3470 mm (136-5/8 in.)

1шт.

37

1345266C1

WASHER

White

1шт.

38

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 39, 40

1шт.

39

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

1272399C2

QUICK MALE COUPLING

Self-Sealing, Male, 7/8 NF

1шт.

42

1989496C1

HOSE

2605 mm (102-5/8 in.)

1шт.

43

1282338C91

COUPLING, QUICK, FEM

Self-Sealing, 7/8 NF

1шт.

44

1541849C1

COUPLING

Diagnostic, Inc. 45, 46

1шт.

46

H434163

DUST CAP

1шт.

47

141657A1

TEE

Inc. 48, 49

1шт.

48

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

49

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

50

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Inc. 51, 52

1шт.

52

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

53

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

1-14 fc x 1-1/16-12, Inc. 54, 55

1шт.

54

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

55

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

56

231735A1

FLEXIBLE HOSE,15.88mm ID x 830mm L

830 mm (32-3/4 in.)

1шт.

57

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2

2шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

51

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 64
