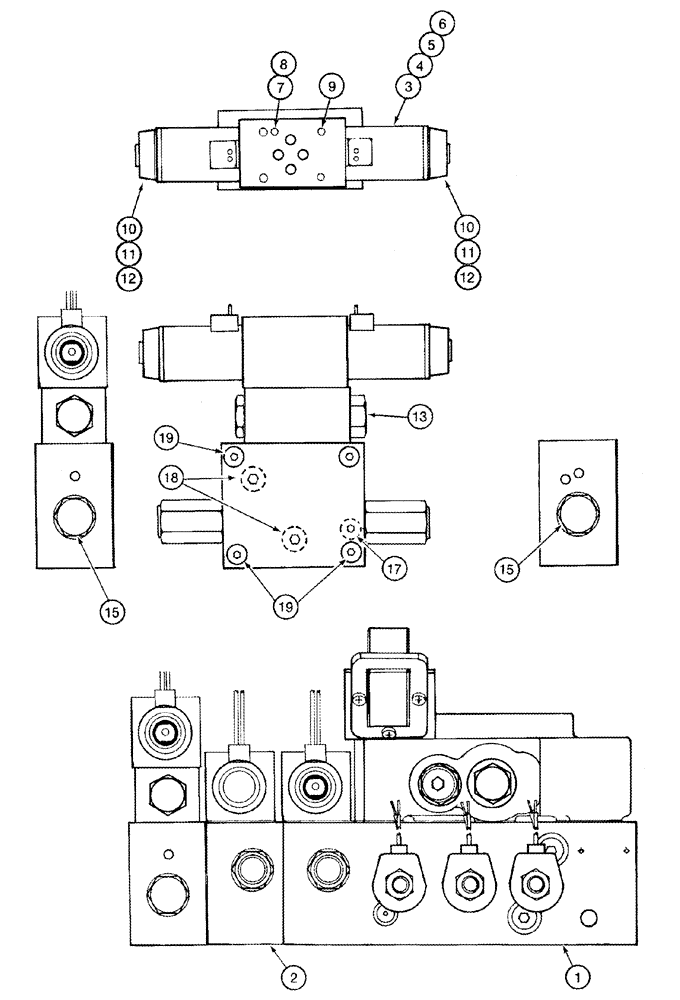

Запчасти Case IH 2366 (08-18) - VALVE ASSY - CONTROL - HEADER LIFT WITH REEL FORE AND AFT AND FIELD TRACKER (07) - HYDRAULICS

124567A3

VALVE, CONTROL

Header Lift With Reel Fore and Aft and Field Tracker, Inc. 1 - 20

1шт.

124567A3R

REMAN-HYD VALVE

Reman Header Lift With Reel Fore and Aft and Field Tracker, Inc. 1 - 20

1шт.

124567A3C

CORE-VALVE HYD

Core Return Number

1шт.

1

124565A3

VALVE, CONTROL

Header Lift, See Figure(s) 08-12 - 08-17, 08-34 - 08-36

1шт.

2

131153A2

CONTROL VALVE

Reel Fore and Aft, See Figure 08-17

1шт.

114854A1

CONTROL VALVE

Field Tracker, Inc.190984A1, Ref. 3 - 20

1шт.

190984A1

VALVE

Stack, Inc. Ref. 3 - 12, 4-Way, 3 Position

1шт.

3

196736A1

BODY

SOLENOID

2шт.

4

196737A1

SPLIT PIN/SAFETY PIN

2шт.

5

196738A1

SPRING

2шт.

6

196739A1

WASHER

2шт.

7

196712A1

PLUG

Orifice, 0.035 in.

1шт.

8

196713A1

PLUG

Orifice, 0.043 in.

1шт.

191120A1

SEAL KIT

Seal Repair, 4-Way, 3 Position Valve, Not Illustrated, See Figure(s) 08-16, 08-17

1шт.

9

61-31044

HEX SOC SCREW,#10 - 24 x 2 3/4"

No. 10 x 2-3/4

4шт.

10

191119A1

SOLENOID

COIL, With Diode, 12 volt, DC

2шт.

11

188106A1

NUT

2шт.

12

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

13

190985A1

VALVE

Double Pilot Operated, Inc. 14

1шт.

14

191120A1

SEAL KIT

Seal Repair, Check Valve, Not Illustrated, See Figure(s) 08-16, 08-17

1шт.

15

190986A1

VALVE PRESSURE RELIE,7/8" - 14

Inc. 16

2шт.

16

149942C1

SEAL KIT

Relief Valve, Not Illustrated

1шт.

17

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

18

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

4шт.

19

861-10130

HEX SOC SCREW,M10 x 130mm, Cl 12.9

M10 x 130; 12.9

4шт.

20

864-10070

HEX SOC SCREW,M10 x 70mm, Cl 8.8

Not Used in this Application, Not Illustrated

4шт.
