Запчасти Case IH 2366 (08-09[01]) - HYDRAULICS - AUXILIARY PUMP SUPPLY, BSN JJC0255700 (07) - HYDRAULICS

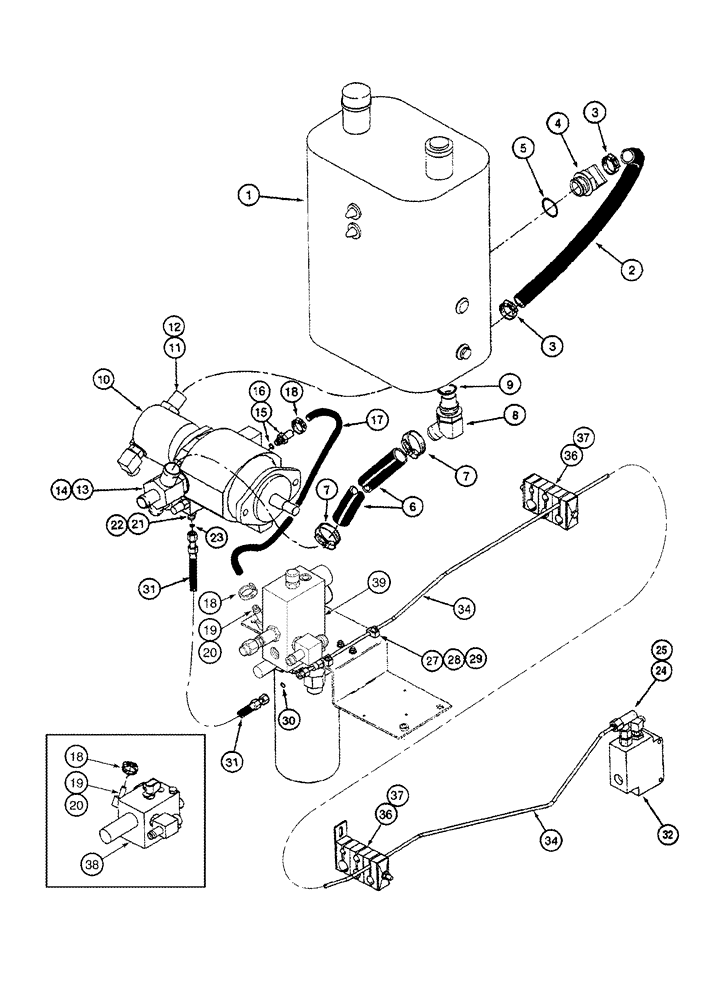

Схема запчастей Case IH 2366 - (08-09[01]) - HYDRAULICS - AUXILIARY PUMP SUPPLY, BSN JJC0255700 (07) - HYDRAULICS
37
34
18
24
19
31
31
7
1
39
13
34
10
38
4
22
29
37
18
16
11
25
17
8
6
3
18
12
23
7
21
36
20
32
14
9
30
28
5
36
19
27
2
20
15

Артикул

Название

Примечание

Количество

1

123413A3

TANK, HYDRAULIC OIL

See Figure 08-01

1шт.

2

1541616C3

HOSE

Suction To Reel Drive Pump, 560 mm (22-1/8 in.), Cut From 1541952C1

1шт.

3

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

4

217-322

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

Incl Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

6

1989349C3

HOSE

Suction To Header Lift Pump, 270 mm (10-5/8 in.), Cut From 1541953C1

1шт.

7

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

8

182811A1

ELBOW

Inc. 9

1шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

10

123266A2

PUMP, HYDRAULIC

Auxiliary, See Figure 08-11

1шт.

11

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Includes 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

182813A1

TEE

1-1/4 x 1 x 1 in., Inc. 14

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

15

217-387

FITTING,3/8" Hose Barb x 9/16" - 18 Male ORB

3/8 stem x 9/16, Inc. 16

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

128005A1

HYDRAULIC HOSE,9.52 mm ID x 445.00 mm

Pump Case Drain, Cut from S118400X

1шт.

18

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

19

113896A1

TEE

Inc. 20

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16, Inc. 22, 23

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

24

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

11/16 fc sl 11/16 sw, Inc. 25

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

27

236558A1

CLAMP

2шт.

29

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

31

255209A1

FLEXIBLE HOSE

Pump Signal, 530 mm (20-7/8 in.)

1шт.

31a

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Not Illustrated

1шт.

32

114851A2

VALVE

Steering, See Figure 05-32

1шт.

34

253503A1

HYD TUBE,0.375" OD, 2037 mm Length

Signal, 2054 mm (80-13/16 in.)

1шт.

36

255212A1

CLAMP

1шт.

38

REF

INSTRUCTION

VALVE Pressure, See Figure 08-21, Serial Range: -JJC0253999

1шт.

39

REF

INSTRUCTION

VALVE Pressure, See Figure 08-32, Start Serial: JJC0254000

1шт.

28

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

37

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Выбрано товаров: 37
