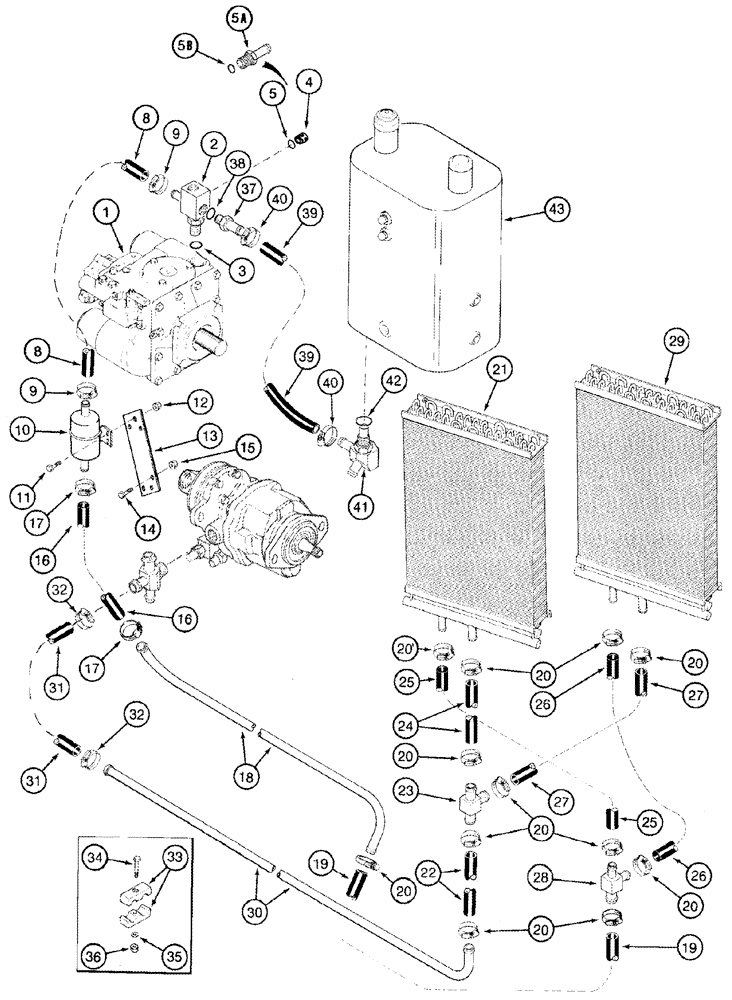

Запчасти Case IH 2366 (08-06) - OIL COOLER SYSTEM - RICE COMBINE- BSN JJC0255700 (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSY., Hydrostatic, See Figure(s) 06-09 - 06-13

1шт.

2

123521A2

TEE

Inc. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

76349

PLUG,9/16" - 18 ORB

Incl. 5

1шт.

5b

217-397

FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB

Incl 5C

1шт.

Used with Power Guide Axle

1шт.

6

177678A1

TEMPERATURE SWITCH

Inc. 7, Oil Temperature See Figure 04-03, Ref. 22, Not Illustrated

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

See Figure 04-03, Ref. 22A, Not Illustrated

1шт.

8

1979762C2

HOSE

Pump To Filter, 610 mm (24-1/8 in.) Cut From 364361C1

1шт.

9

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

10

123488A1

FILTER SCREEN

In-Line

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.

13

238516A1

SUPPORT

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

15

231-5146

FLANGE NUT,3/8"-16

2шт.

16

127985A1

HYDRAULIC HOSE,25.40 mm ID x 585.00 mm

Filter to Tube, Cut from 1541952C1

1шт.

17

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

18

126850A1

TUBE,1832, 127 mm Length

Oil Cooler Supply

1шт.

19

121298A1

HYDRAULIC HOSE,25.40 mm ID x 890.00 mm, SAE 16

Tube to Cooler, Cut from 364361C1

1шт.

20

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

11шт.

21

195441A3

COOLER

Combination, Fuel and Oil, For Mounting, See Figure 08-07

1шт.

22

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From

1шт.

23

1979672C1

TEE

1шт.

24

1979762C2

HOSE

610 mm (24-1/8 in.), Cut From 364361C1

1шт.

25

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From 364361C1

1шт.

26

1979763C2

HOSE

Cut From 364361C1

1шт.

27

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From 364361C1

1шт.

28

1979672C1

TEE

1шт.

29

135484A1

OIL COOLER

Hydraulic Oil, Auxiliary

1шт.

30

126851A1

TUBE,1832, 284 mm Length

Cooler Return

1шт.

31

128080A1

HYDRAULIC HOSE,25.40 mm ID x 760.00 mm

Cut from 1541952C1

1шт.

32

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

33

1347071C1

CLAMP

1 OD

2шт.

34

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

35

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

37

123487A1

VALVE

40 psi, Inc. 38

1шт.

38

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

39

1347315C3

HYDRAULIC HOSE,1.00" ID x 26.00"

Cut from 3 x 364361C1

1шт.

40

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

41

182812A1

TEE

Inc. 42

1шт.

42

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

43

123413A3

TANK, HYDRAULIC OIL

See Figure 08-01

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5c

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
