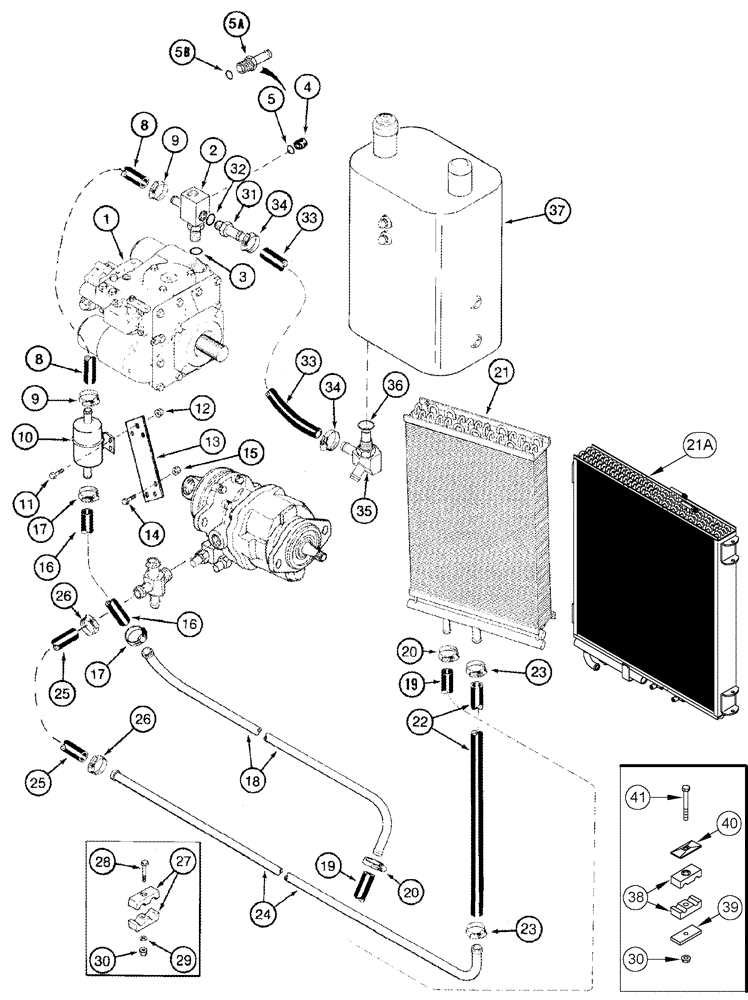

Запчасти Case IH 2366 (08-05) - OIL COOLER SYSTEM - ALL CORN AND GRAIN COMBINES AND RICE COMBINE ASN JJC0255700 (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSY., Hydrostatic, See Figure(s) 06-09 - 06-13

1шт.

2

123521A2

TEE

Inc. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

76349

PLUG,9/16" - 18 ORB

Incl. 5

1шт.

Used without Power Guide Axle

1шт.

5a

217-397

FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB

Incl 5B

1шт.

Used with Power Guide Axle

1шт.

6

177678A1

TEMPERATURE SWITCH

Oil Temperature, See Figure 04-03, Ref. 22, Inc. 7, Not Illustrated

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

See Figure 04-03, Ref. 22A, Not Illustrated

1шт.

8

1979762C2

HOSE

Pump To Filter, 610 mm (24-1/8 in.), Cut From 364361C1

1шт.

9

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

10

123488A1

FILTER SCREEN

In-Line

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.

13

238516A1

SUPPORT

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

15

231-5146

FLANGE NUT,3/8"-16

2шт.

16

127985A1

HYDRAULIC HOSE,25.40 mm ID x 585.00 mm

Filter to Tube, Cut from 1541952C1

1шт.

17

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

18

126850A1

TUBE,1832, 127 mm Length

Oil Cooler Supply

1шт.

19

121298A1

HYDRAULIC HOSE,25.40 mm ID x 890.00 mm, SAE 16

Tube to Cooler, Cut from 364361C1, Serial Range: -JJC0255699

1шт.

19

87415583

HYDRAULIC HOSE

2070 mm (81-1/2 in), Cut From 1541952C1, Start Serial: JJC0255700

1шт.

20

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

, Serial Range: -JJC0255699

2шт.

20

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

, Start Serial: JJC0255700

2шт.

21

195441A3

COOLER

Combination, Fuel and Oil, For Mounting See Figure 08-07, Serial Range: -JJC0255699

1шт.

21a

416766A2

COOLER

Combination, Fuel and Oil, For Mounting See Figure 08-07, Start Serial: JJC0255700

1шт.

22

121298A1

HYDRAULIC HOSE,25.40 mm ID x 890.00 mm, SAE 16

Cooler to Tube, Cut from 364361C1, Serial Range: -JJC0255699

1шт.

22

87415583

HYDRAULIC HOSE

2070 mm (81-1/2 in), Cut From 1541952C1, Start Serial: JJC0255700

1шт.

23

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

, Serial Range: -JJC0255699

2шт.

23

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

, Start Serial: JJC0255700

2шт.

24

126851A1

TUBE,1832, 284 mm Length

Cooler Return

1шт.

25

128080A1

HYDRAULIC HOSE,25.40 mm ID x 760.00 mm

Cut from 1541952C1

1шт.

26

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

27

1347071C1

CLAMP

1 OD

2шт.

28

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

29

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

31

123487A1

VALVE

40 psi, Inc. 32

1шт.

32

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD

1шт.

33

1347315C3

HYDRAULIC HOSE,1.00" ID x 26.00"

Cut from 3 x 364361C1

1шт.

34

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

1-2шт.

34

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

35

182812A1

TEE

Inc. 36

1шт.

36

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

37

REF

INSTRUCTION

Tank, Hydraulic Oil, See Figure 08-01

1шт.

38

87000923

HOSE CLAMP

, Start Serial: JJC0255700

2шт.

39

86987929

SPACER

, Start Serial: JJC0255700

1шт.

40

1324469C1

PLATE

, Start Serial: JJC0255700

1шт.

41

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
