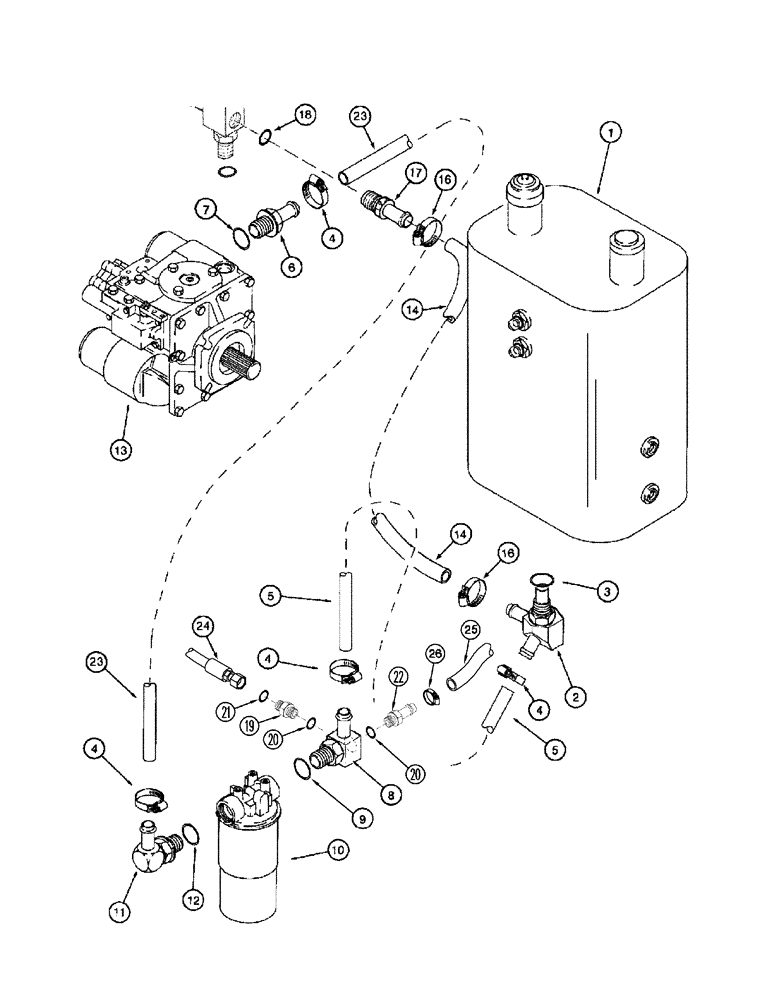

Запчасти Case IH 2366 (08-02[02]) - HYDRAULICS - RESERVOIR TO HYDROSTATIC PUMP - ASN JJC0255700 (07) - HYDRAULICS

1

86991459

RESERVOIR, HYDRAULIC

See Figure 08-01

1шт.

2

182812A1

TEE

Inc. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

4шт.

5

1541688C1

FLEXIBLE HOSE

660 mm (26 in), Filter To Reservoir

1шт.

6

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

370228A1

FITTING,1 5/8"-12 ORB x 7/8"-14 x M31.75 Bead x 7/8"-14

90, Special, Incl. 9

1шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

10

87784C92

HYDRAULIC OIL FILTER

Return, See Figure(s) 08-03, 08-04

1шт.

11

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Includes 12

1шт.

12

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

13

REF

INSTRUCTION

PUMP, Hydrostatic Charge, See Figure(s) 06-09 - 06-13

1шт.

14

238622A1

HYDRAULIC HOSE,737.00 mm

Cut from 364361C1

1шт.

15

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

1шт.

16

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

1шт.

17

123487A1

VALVE

40 psi, Inc. 18

1шт.

18

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

19

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 20, 21

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

Includes 20

1шт.

23

1541688C1

FLEXIBLE HOSE

660 mm (26 in), Charge Pump, Cut From 1541953C1

1шт.

24

400633A1

FLEXIBLE HOSE,16mm ID x 735mm L

735 mm ( 30 in), To Air Screen Motor

1шт.

25

127999A1

HYDRAULIC HOSE,15.88 mm ID x 460.00 mm

To Regulator Valve, Cut from S118576X

1шт.

26

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.
