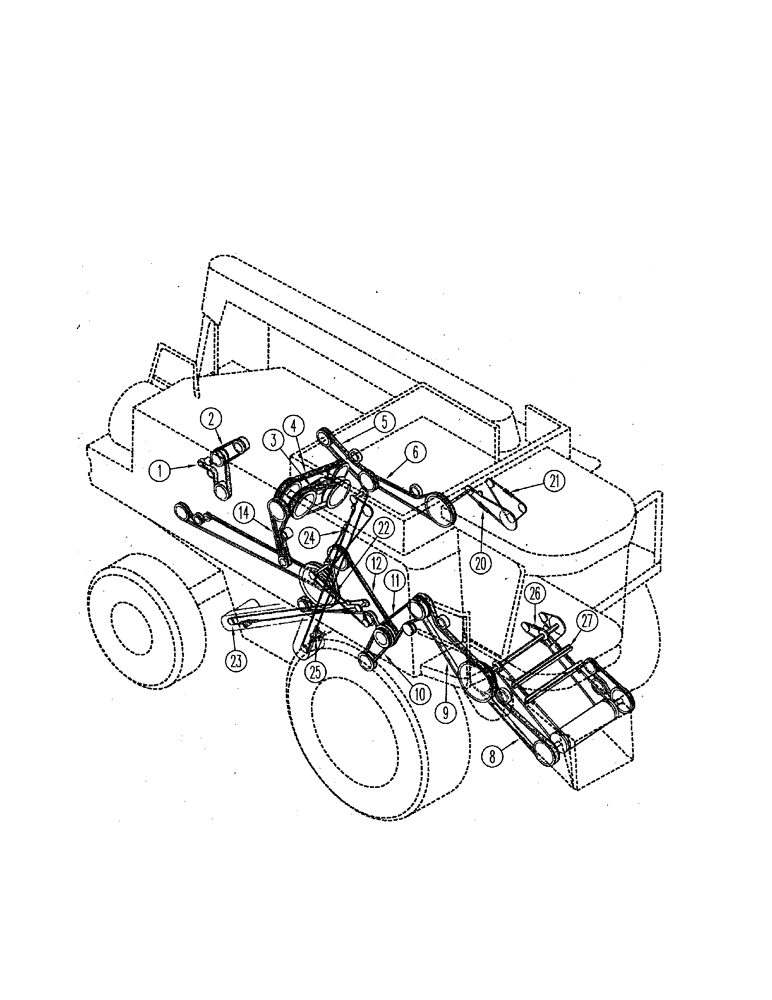

Запчасти Case IH 2366 (01-19) - BELTS - CHAINS (00) - PICTORIAL INDEX

1

BELT, See Figure 02-11

1шт.

ENGINE Fan and Alternator

1шт.

2

BELT, See Figure 09G-25

1шт.

COMPRESSOR Air Conditioning

1шт.

3

BELT, See Figure 09A-03, 09B-02

1шт.

DRIVE Rotor

1шт.

4

BELT, See Figure 09A-06

1шт.

DRIVE Separator

1шт.

5

BELT, See Figure 08-11

1шт.

DRIVE Auxiliary Pump

1шт.

6

BELT, See Figure 09E-06

1шт.

DRIVE Grain Tank Unloader

1шт.

8

BELT, See Figure(s) 09A-12, 09A-13

1шт.

DRIVE Feeder Jackshaft

1шт.

9

BELT, See Figure 09A-10

1шт.

DRIVE Feeder

1шт.

10

BELT, See Figure 09C-06

1шт.

DRIVE Cleaning Fan

1шт.

11

BELT, See Figure 09A-01

1шт.

JACKSHAFT Cleaning Fan

1шт.

12

BELT, 09A-02

1шт.

DRIVE Elevator

1шт.

13

BELT, See Figure 09F-02

1шт.

DRIVE Straw Spreader

1шт.

14

BELT, See Figure 09F-04

1шт.

DRIVE Straw Chopper

1шт.

20

CHAIN, See Figure 09E-07

1шт.

DRIVE Grain Tank Unloader

1шт.

21

CHAIN, See Figure 09E-07

1шт.

DRIVE Rear Horizontal Auger

1шт.

22

CHAIN, See Figure 09D-15

1шт.

DRIVE Tailings Elevator

1шт.

23

CHAIN, See Figure 09D-13

1шт.

CONVEYOR Tailings Elevator

1шт.

24

CHAIN, See Figure 09D-07

1шт.

DRIVE Clean Grain Elevator

1шт.

25

CHAIN, See Figure 09D-03

1шт.

CONVEYOR Clean Grain Elevator

1шт.

26

CHAIN, See Figure(s) 09A-25 - 09A-28

1шт.

DRIVE Feeder Reverser

1шт.

27

CHAIN , See Figure 09A-22

1шт.

CONVEYOR Feeder

1шт.

28

CHAIN, See Figure 09B-03

1шт.

ADJUSTMENT Rotor Drive Speed

1шт.

Not Illustrated

1шт.
