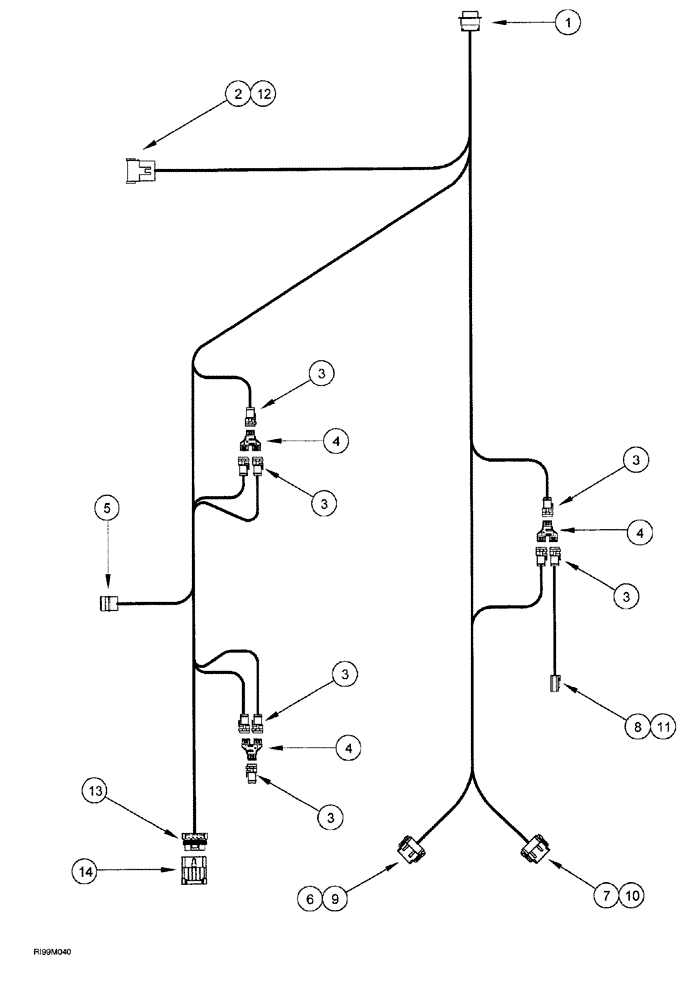

Запчасти Case IH 2366 (04-48) - HARNESS - AFS YIELD MONITOR CAB DISPLAY (06) - ELECTRICAL

365512A1

WIRE HARNESS

Yield Monitor Cab Display, Inc. 1 - 14

1шт.

1

321698A1

ELEC CONNECTOR,Female, 14 Pin

CONNECTOR - electrical

1шт.

2

225388C1

ELEC CONNECTOR,Male, 12 Pin

CONNECTOR - electrical, type NA

1шт.

3

298496A1

ELEC CONNECTOR,4 Pin

CONNECTOR - plug, 4 Pin

9шт.

4

298495A1

ELEC CONNECTOR,4 Pin

CONNECTOR - electrical

3шт.

5

310057A1

ELEC CONNECTOR,Male, 9 Pin

CONNECTOR - HD 10 series Receptacle

1шт.

6

223679A1

MULTIPOLE CONNECTOR,Female, 12 Pin

CONNECTOR - 12-way DTM plug, black

1шт.

7

223671A1

CONTACT HOUSING,Female, 12 Pin

CONNECTOR - 12-way DTM plug, gray

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

CONNECTOR - 4-cav plug DT series

1шт.

9

223674A1

WEDGE

- electrical connector

1шт.

10

223674A1

WEDGE

- electrical connector

1шт.

11

225327C1

WEDGE,Lock, Black

- electrical connector

1шт.

12

225390C1

WEDGE

- electrical connector, type W12P

1шт.

13

182081A1

TERMINAL CONNECTOR,Female, 5 Pin

CONNECTOR - tower 5-way metn-pak

1шт.

14

182079A1

TERMINAL CONNECTOR,Male, 5 Pin

CONNECTOR - electrical

1шт.
