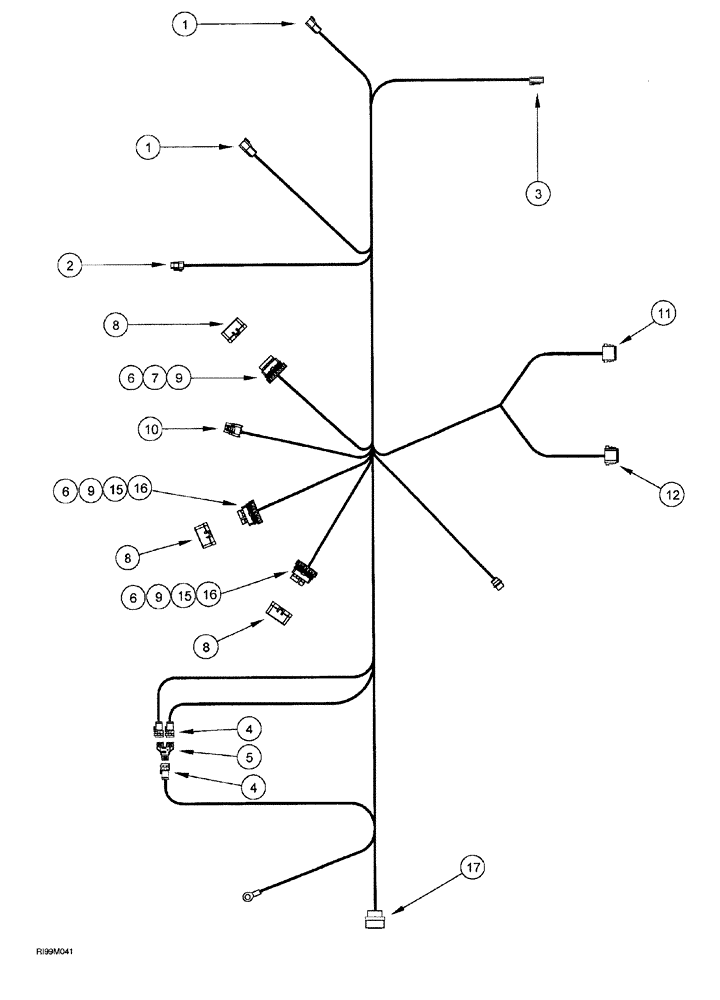

Запчасти Case IH 2366 (04-47) - HARNESS, AFS YIELD MONITOR INTERFACE UNIT EXTERIOR (06) - ELECTRICAL

365513A1

WIRE HARNESS

Main Yield Monitor Interface Unit, Inc. 1 - 17

1шт.

1

225350C1

ELEC CONNECTOR,Male, 6 Pin

CONNECTOR - electrical, type LY

2шт.

2

225351C1

ELEC CONNECTOR,Female, 6 Pin

CONNECTOR - electrical, 6 pin

1шт.

3

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

CONNECTOR - 4-cav plug DT series

1шт.

4

298496A1

ELEC CONNECTOR,4 Pin

CONNECTOR - plug, 4 Pin

3шт.

5

298495A1

ELEC CONNECTOR,4 Pin

CONNECTOR - electrical

1шт.

6

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR - electrical

3шт.

7

187309A1

BAR

- buss, 6 terminal

1шт.

8

187308A1

CAP

- splice connector

3шт.

9

182084A1

CONNECTOR, ELEC,Locking, Blue

CONNECTOR - lock

3шт.

10

245484C1

ELEC CONNECTOR,3 Pin

CONNECTOR - plug 3 Pin

1шт.

11

225389C1

CONNECTOR, ELEC

CONNECTOR - electrical

1шт.

12

225402C1

CONNECTOR, ELEC

CONNECTOR - electrical

1шт.

15

194976A1

BAR

- buss, 3 terminal

2шт.

16

356509A1

TERMINAL STRIP,2 Pin

BAR - buss, 2 terminal

1шт.

17

321699A1

CONNECTOR, ELEC

CONNECTOR - electrical

1шт.
