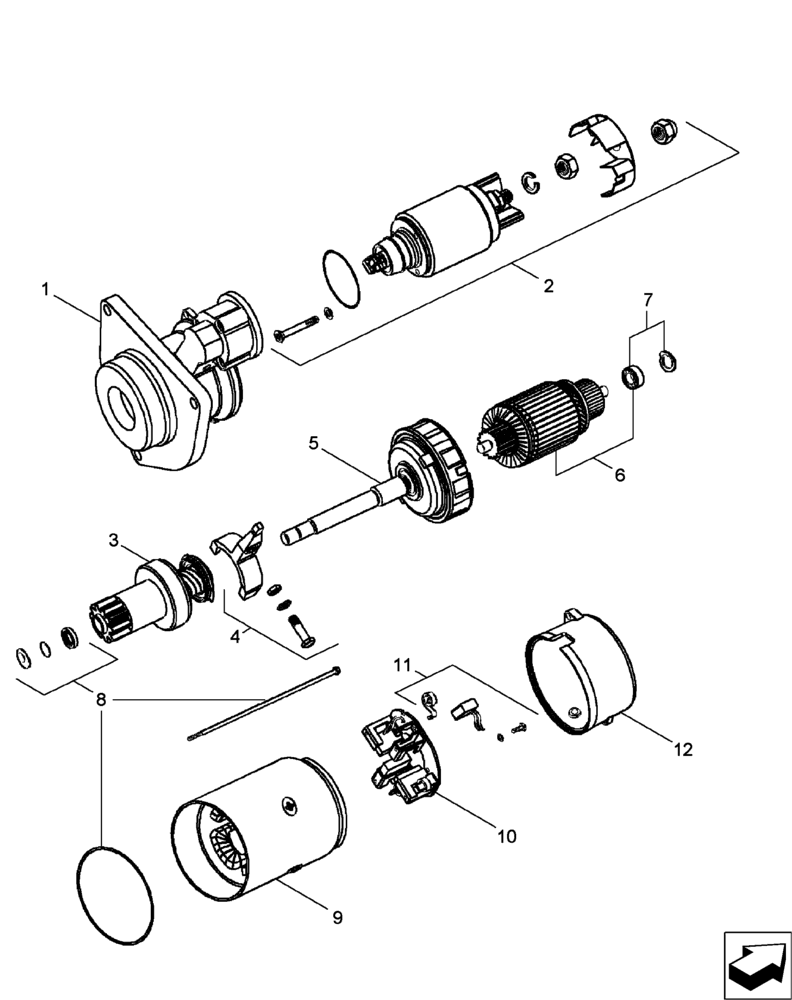

Запчасти Case IH 2366 (04-39B) - STARTER ASSY - ISKRA BRAND - ASN JJC0177800 (06) - ELECTRICAL

87419387

STARTING MOTOR

Iskra Brand, Inc. 1 - 12

1шт.

87413500R

REMAN-STARTER

Starter; For N.A. only

1шт.

87413500C

CORE-STARTER

Return number - For N.A. only

1шт.

84146320R

REMAN-STARTER,12V, 4.2kW

2366 STARTER ASSY - ISKRA BRAND - ASN JJC0177800 (1/98-8/04), , Reman for New P/N 87419387

1шт.

84146320C

CORE-STARTER,12V, 4.2kW

Return Number

1шт.

1

87452304

BRACKET

Drive End

1шт.

2

87452305

SOLENOID

1шт.

3

87452306

DRIVE ASSY.

1шт.

4

87452307

LEVER

Engaging

1шт.

5

87452308

GEAR

Reduction

1шт.

6

87452309

ARMATURE

1шт.

7

87452310

KIT

1шт.

8

87452311

KIT, STARTER MTR REP

SET Fixing Parts

1шт.

9

87452312

STATOR

1шт.

10

87452313

BRUSH HOLDER

1шт.

11

87452314

BRUSH, COMMUTATOR

BRUSH SET Spring

1шт.

12

87452315

COVER

Commutator End

1шт.
