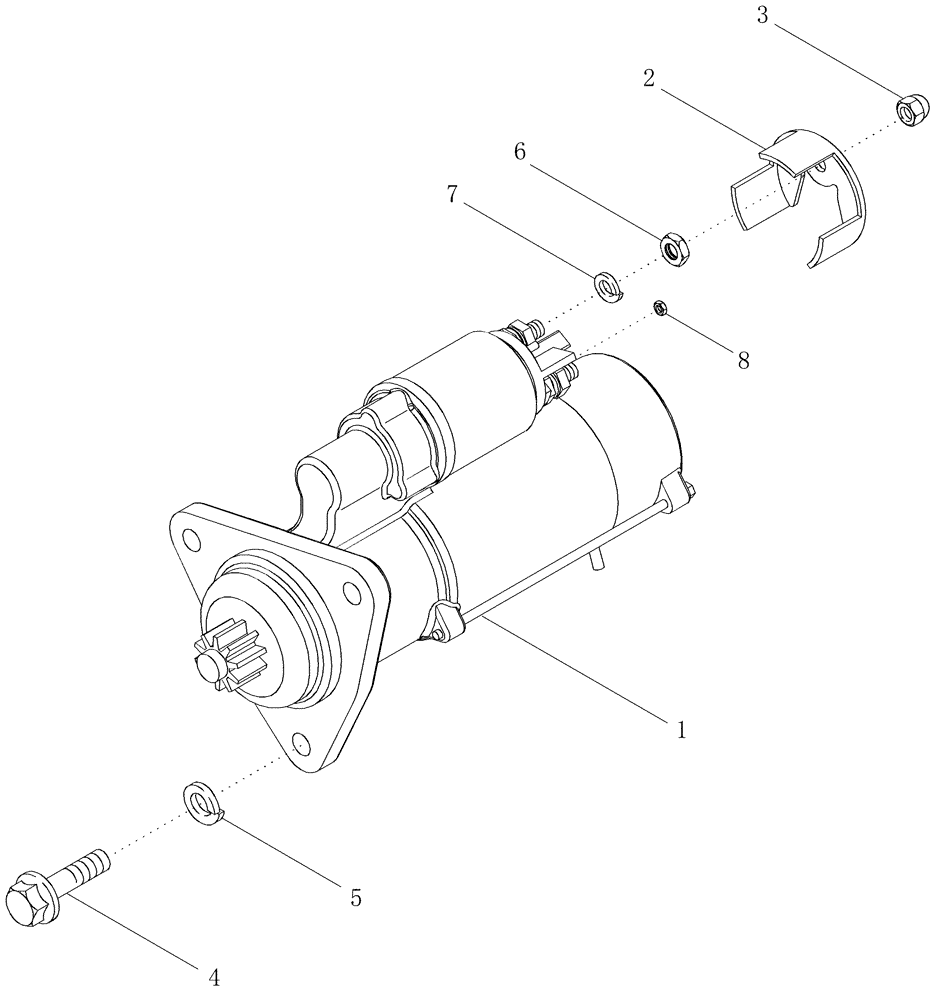

Запчасти Case IH 2366 (04-39A) - STARTER ASSY - MOUNTING - ASN JJC0256400 (06) - ELECTRICAL

1

87419387

STARTING MOTOR

Iskra Brand, See Figure 04-39B

1шт.

1

87420661

REMAN-STARTER

Remanufactured Starter

1шт.

1

87420662

CORE-STARTER

Return Part Number

1шт.

2

87422566

COVER

Jump Start Protection

1шт.

3

87422567

NUT

1шт.

4

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

M12 x 35; 10.9

3шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

6

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

M5; 8

1шт.
