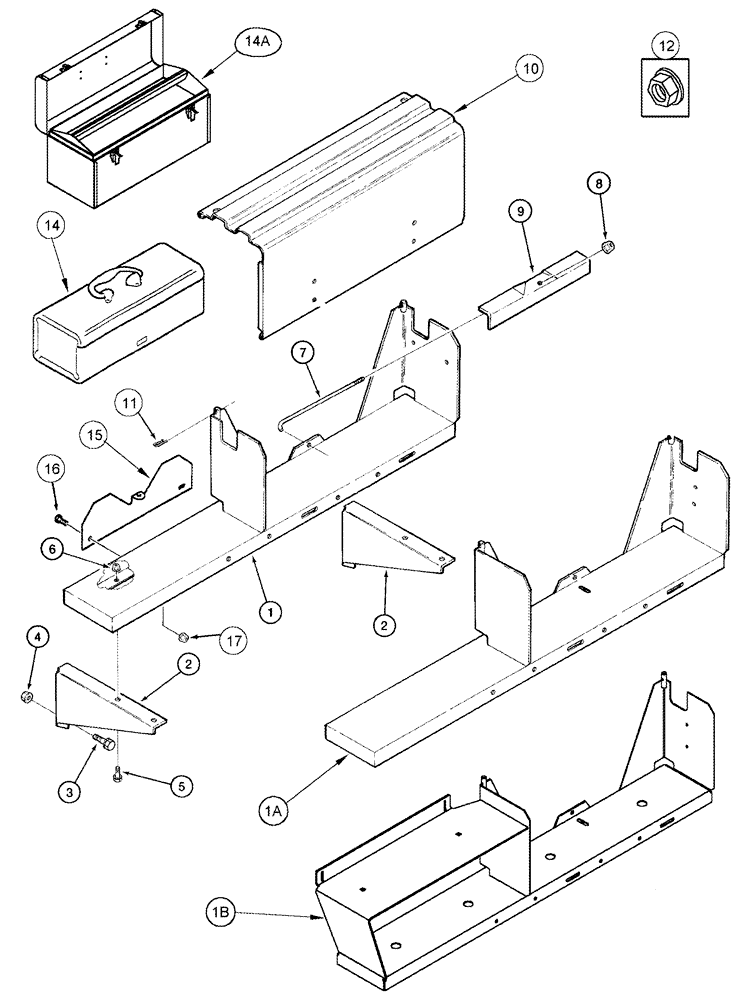

Запчасти Case IH 2366 (04-37) - BATTERY - BOX (06) - ELECTRICAL

1

142490A2

SUPPORT

No Longer Used, Order 307071A1

1шт.

1a

307071A1

SUPPORT

Replaces: 142490A2, Serial Range: -JJC0253999

1шт.

1b

394365A1

SUPPORT

JJC0254000 to

1шт.

2

142495A2

SUPPORT

2шт.

3

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

5шт.

4

231-5146

FLANGE NUT,3/8"-16

5шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

A147915

BOLT

1шт.

8

425-104

NUT,1/4"-20, Cl 5

1шт.

9

A162337

CLAMP

1шт.

10

142496A1

COVER

1шт.

11

480523R1

HAIR PIN COTTER

2шт.

12

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

4шт.

13

135370A1

PROTECTION STRIP

194 mm (7-5/8 in), Cut From 1330108CX, Not Illustrated

2шт.

14

A181436

TOOL BOX

, Serial Range: -JJC0253999

1шт.

14a

392914A1

BOX, TOOL

JJC0254000 to

1шт.

15

143481A1

SUPPORT

, Serial Range: -JJC0253999

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

18

397115A2

TUBE,7.94mm OD x 520mm OAL

JJC0254000 to

1шт.
