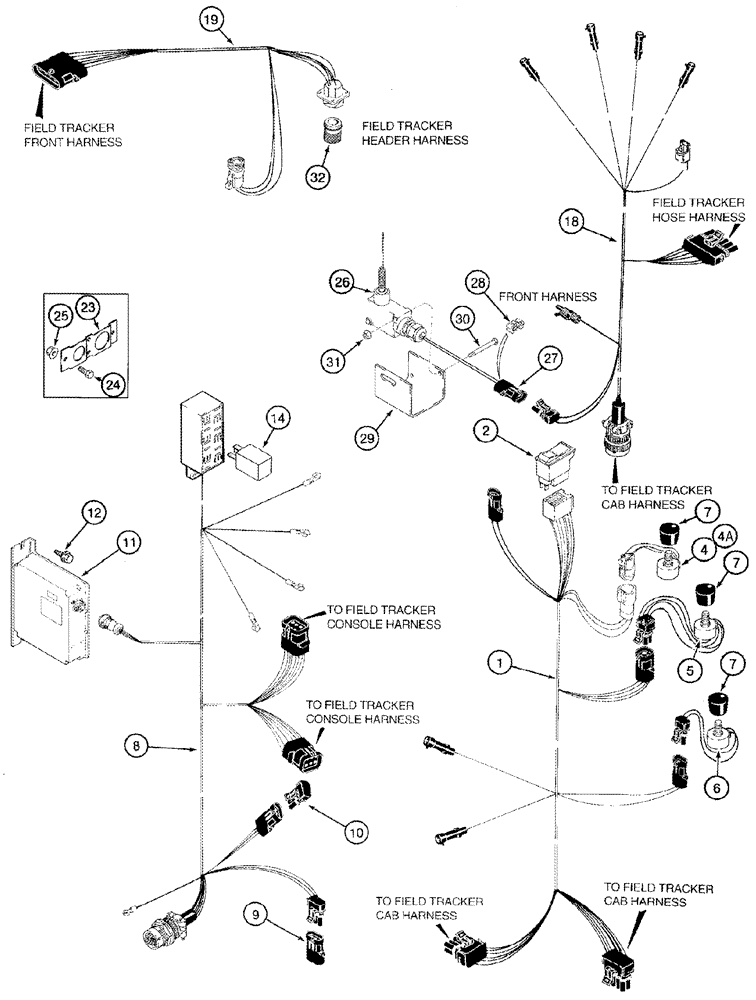

Запчасти Case IH 2366 (04-29) - HARNESS - FIELD TRACKER (06) - ELECTRICAL

1

125838A2

WIRE HARNESS

Console, Field Tracker

1шт.

2

109814A1

SWITCH

Auto/Manual, Inc. 109915A1, 109826A1, 3141107R1, 134608A1

1шт.

109915A1

SYMBOLS

SYMBOL

1шт.

109826A1

SWITCH

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

134608A1

LAMP SOCKET

1шт.

4

114551A1

POTENTIOMETER,2500 Ohm, 500V

Balance, Serial Range: -JJC0252949

1шт.

4a

345346A1

POTENTIOMETER,1000 Ohm, 500V

Balance, Start Serial: JJC0252949

1шт.

5

114553A1

POTENTIOMETER,10,000 Ohm

Sensitivity

1шт.

6

133498A2

POTENTIOMETER,50,000 Ohm

Response

1шт.

7

118780A1

KNOB

3шт.

8

276484A1

WIRE HARNESS

Cab, Field Tracker, Inc. 9, 10

1шт.

9

126011A1

DIODE

1шт.

10

A187874

MODULE

1шт.

11

100275A2

ECU

1шт.

11

100275A2R

REMAN ELECT CONTROL

2366 CASE IH AXIAL-FLOW COMBINE (NA) (1/98-8/04)

1шт.

11

100275A2C

CORE-ELECTRONIC CONT

Return Number

1шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

13

495-31022

WASHER,#10

2шт.

14

105849A1

RELAY

Continuous Duty, 20 amp

5шт.

18

276479A1

HARNESS

Front, Field Tracker, Serial Range: -JJC0253999

1шт.

18

276479A2

WIRE HARNESS

Front, Field Tracker, Start Serial: JJC0254000

1шт.

19

141729A1

WIRE HARNESS

Hose, Field Tracker

1шт.

23

1988724C1

SUPPORT

Monitor

1шт.

24

363-31016

SCREW,Hex Wash Hd, #10-24 x 1"

No. 10 x 1

3шт.

25

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

298817A1

SWITCH

Inc. 26 - 31

1шт.

With Field Tracker

1шт.

With Accumulator

1шт.

26

297976A1

SWITCH

Inc. 27, 28

1шт.

27

182068A1

CONNECTOR, ELEC

CONNECTOR

1шт.

28

182070A1

RETAINER

1шт.

29

296852A1

SUPPORT

1шт.

30

440-10828

SCREW,Cross Pan Hd, #8-32 x 1 3/4"

No. 8 x 1-3/4, If Used

2шт.

30

440-11028

SCREW,Cross Pan Hd, #10-24 x 1 3/4"

No. 10 x 1-3/4, If Used

2шт.

31

231-14408

NUT,#8-32, GB

No. 8, If Used

2шт.

31

231-51409

SERRATED NUT,Flg, USR, #10-24

If Used

2шт.

32

302292A1

PLASTIC PLUG

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

33

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.
