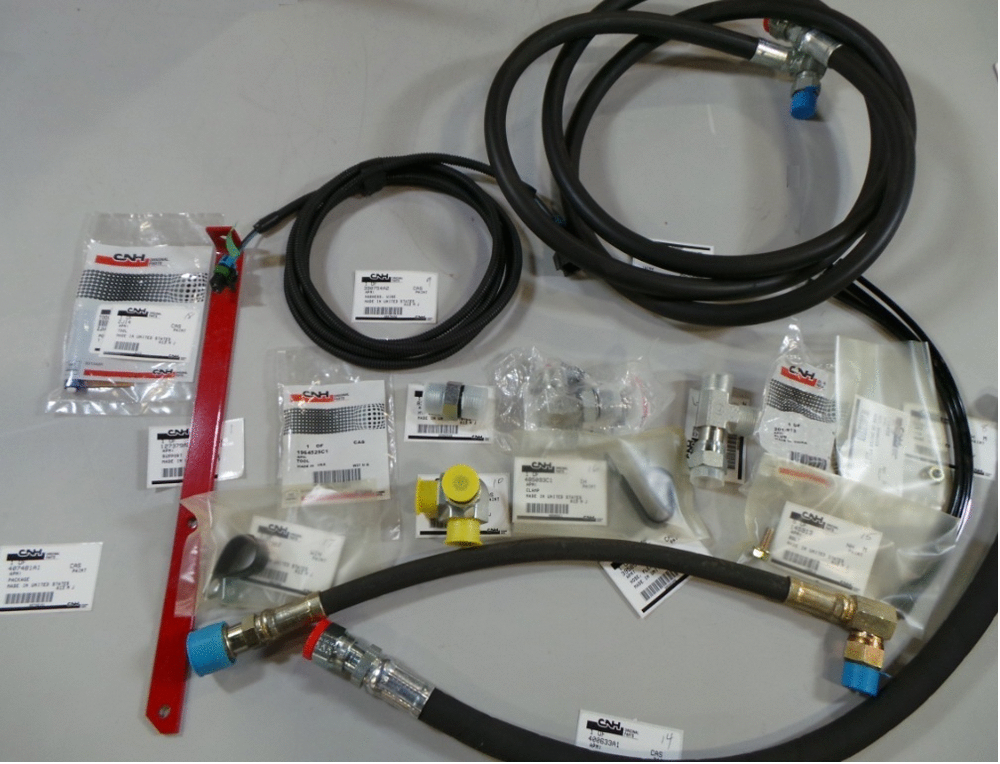

Запчасти Case IH 2366 (04-24[01]) - KIT FEEDER REVERSER HYD AND ELECT. PARTS (06) - ELECTRICAL

1

407481A1

PACKAGE

Incl 2 - 18

1шт.

2

127379A2

SUPPORT

1шт.

3

1964525C1

TOOL

1шт.

4

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

1шт.

5

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

6

86624133

TEE,1"-14 ORFS x 1"-14 Sw Run

1шт.

7

201-913

PLUG,1" - 14 ORFS

1шт.

8

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

9

529070

CABLE TIE,368.3mm L

5шт.

10

390754A2

WIRE HARNESS

1шт.

11

395408A1

TEE

1шт.

12

395852A2

HOSE

1шт.

13

395853A2

FLEXIBLE HOSE

1шт.

14

400162A1

HARNESS

1шт.

15

400633A1

FLEXIBLE HOSE,16mm ID x 735mm L

1шт.

16

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

17

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

18

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.
