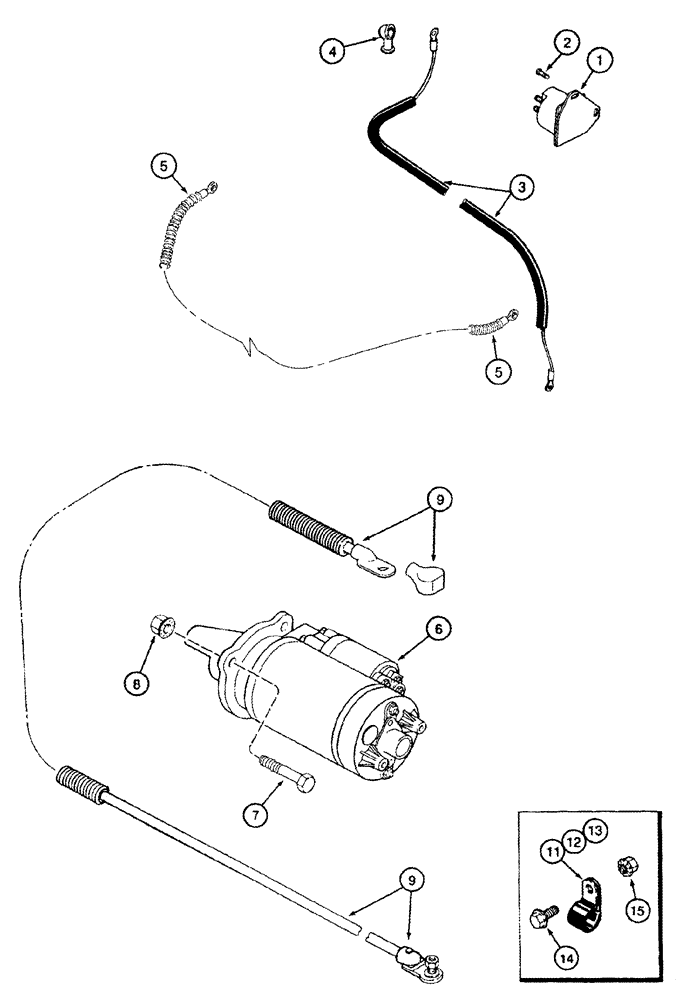

Запчасти Case IH 2366 (04-23) - HARNESS - FEEDER REVERSER - BSN JJC0253999 (06) - ELECTRICAL

1

178149A1

SOLENOID SWITCH

See Figure 04-01

1шт.

2

261-1478

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

1/4 x 1/2

2шт.

3

231322A1

CABLE

Reverser Relay, Inc. 4

1шт.

4

399470R1

BOOT

1шт.

5

231400A1

CABLE

Feeder Reverser

1шт.

6

245927C93

STARTING MOTOR

Feeder Reverser, See Figure 04-42

1шт.

6

245927C93R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

6

245927C93C

CORE-STARTER

Return Number, STARTING MOTOR

1шт.

7

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

8

231-5146

FLANGE NUT,3/8"-16

3шт.

9

232263A1

CABLE

Feeder Reverser Motor

1шт.

11

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

2шт.

12

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.

13

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

14

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
