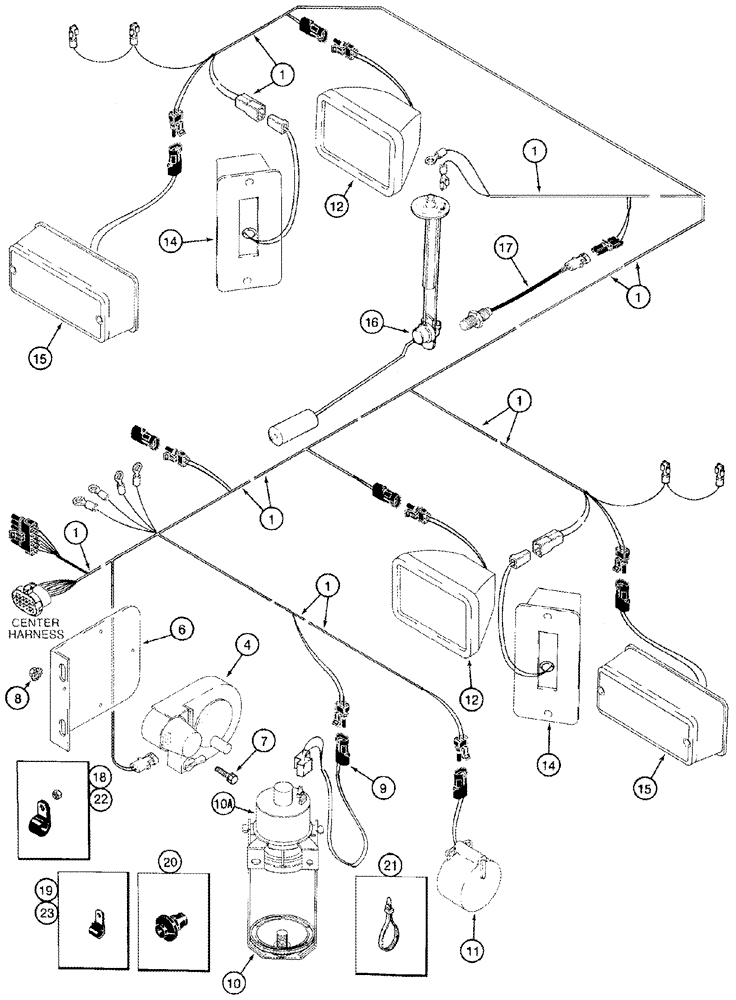

Запчасти Case IH 2366 (04-17) - HARNESS, REAR - BSN JJC0253999 (06) - ELECTRICAL

1

184748A4

WIRE HARNESS

Rear, Inc. 2, 3

1шт.

2

187308A1

CAP

Not Illustrated

1шт.

3

187309A1

BAR

Splice, Not Illustrated

1шт.

4

127813A1

LAMP

Service Right Hand, Inc. 5

1шт.

5

H40556

BULB

12V, Not Illustrated

1шт.

6

139049A2

SUPPORT

1шт.

7

905-8020

BOLT,Hex Flg, M8 x 20mm

M8 x 20

4шт.

8

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

9

141730A1

WIRE HARNESS

Ether Injection

1шт.

10

185552A2

SOLENOID

12V, Ether Injection, See Figure 02-08, Inc. 10A

1шт.

10a

190752A1

HOUSING

1шт.

11

1345485C3

TRANSMITTER

Rotary Air Screen

1шт.

12

185116A1

HEADLIGHT,12V, 37.5W

Rear Flood, Inc. 13

2шт.

13

139120A1

BULB

Type C-6, No. 894, Not Illustrated

1шт.

14

130882C91

LAMP

See Figure 04-33

2шт.

15

92260C1

LAMP,12V, 27W, Red

Stop, Tail, See Figure 04-33

2шт.

16

198024C1

FUEL GAUGE

Fuel Level

1шт.

17

245193C2

SENSOR

Straw Spreader Speed

1шт.

18

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

7/8 ID

8шт.

19

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

20

195804C1

GROMMET

2шт.

21

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

22

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

23

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

24

87300599

KIT

KIT Brake Lights, Australian Production Machines, Inc. 25 - 30, Not Illustrated

1шт.

25

87300500

HARNESS

HARNESS Brake Light

1шт.

26

296462A1

SUPPORT

Brake Light Mounting

1шт.

27

1983341C1

SWITCH

2шт.

28

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

29

87300521

ADAPTER

HARNESS Rear Brake

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

23шт.
