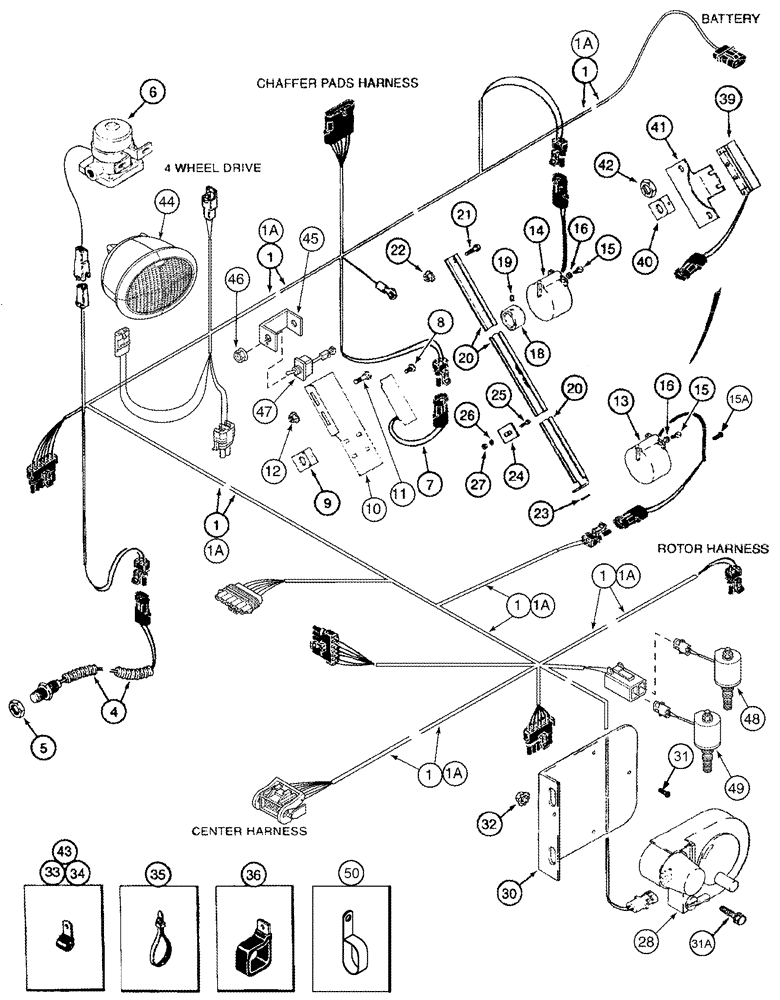

Запчасти Case IH 2366 (04-16) - HARNESS, LEFT HAND SIDE (06) - ELECTRICAL

1

276602A1

WIRE HARNESS

Left Hand Side, Inc.. 2 & 3, Serial Range: -JJC0253999

1шт.

1a

388316A3

WIRE HARNESS

Left Hand Side, Inc.. 2 & 3, Start Serial: JJC0254000

1шт.

2

187308A1

CAP

Not Illustrated

3шт.

3

187309A1

BAR

Splice, Not Illustrated

3шт.

4

1252494C2

TRANSMITTER

Engine RPM

1шт.

5

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4 NF

2шт.

6

REF

INSTRUCTION

Pump, Fuel, See Figure(s) 3-06, 03-06 (01), Ref. 17 & 17A

1шт.

7

245364C1

SWITCH

Monitor Control, Shoe Speed

1шт.

8

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

2шт.

9

187996C1

MAGNET

Shoe Sensor

1шт.

10

187998C3

BRACKET

Sensor

1шт.

11

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

1345485C3

TRANSMITTER

Beater

1шт.

14

1345482C3

TRANSMITTER

Tailings Elevator Speed

1шт.

15

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

No. 8 x 3/8

4шт.

15a

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.

16

492-11008

LOCK WASHER,#8

4шт.

18

455102R21

COLLAR

Includes Setscrew

1шт.

19

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

1/4 x 1/2

1шт.

20

116892A1

CHANNEL

1шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

3шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

23

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

24

1301560C1

SUPPORT

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

26

492-11031

LOCK WASHER,5/16"

1шт.

27

425-105

NUT,5/16"-18, G5

1шт.

28

127813A1

LAMP

Service, Left Hand, Inc. 29

1шт.

29

H40556

BULB

12V, Not Illustrated

1шт.

30

139049A2

SUPPORT

LH

1шт.

31

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

3шт.

31a

905-8020

BOLT,Hex Flg, M8 x 20mm

M8 x 20

3шт.

32

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

33

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

3шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

35

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

36

1301387C2

CLIP

2 in. ID, Square

3шт.

37

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Not Illustrated

3шт.

38

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

3шт.

39

245410C1

TRANSMITTER

Straw Chopper

1шт.

40

178799C1

CLAMP,44.45mm - 63.5mm

Sensor

1шт.

Use with 245410C1

1шт.

41

144706A4

SUPPORT

1шт.

With Straw Chopper

1шт.

42

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

43

362666R1

CLIP

2шт.

44

402850A1

WORK LAMP,Halogen, 12V, 37W, Clear

Separator, See Figure 04-35, Start Serial: JJC0254000

1шт.

45

391064A2

BRACKET

JJC0254000 to

1шт.

46

231-5346

FLANGE NUT,Flg, 3/8"-16

JJC0254000 to

1шт.

47

391062A1

SWITCH

JJC0254000 to

1шт.

48

REF

INSTRUCTION

Valve, Separator Clutch, See Figure 08-32, Start Serial: JJC0254000

1шт.

49

REF

INSTRUCTION

Valve, Unloader Clutch, See Figure 08-32, Start Serial: JJC0254000

1шт.

50

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

51

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

426155A1

KIT

Sieve Lighting/Viewing Door, Includes: Ref. 44, 45, 47, Also Includes 121410A1 (1), 418672A1 (1), See Figure(s): 09H-02, 09H-22 (01), 09H-23

1шт.
