Запчасти Case IH 2366 (04-13) - CAB - TEMPERATURE, AUTO - BSN JJC0252949 (06) - ELECTRICAL

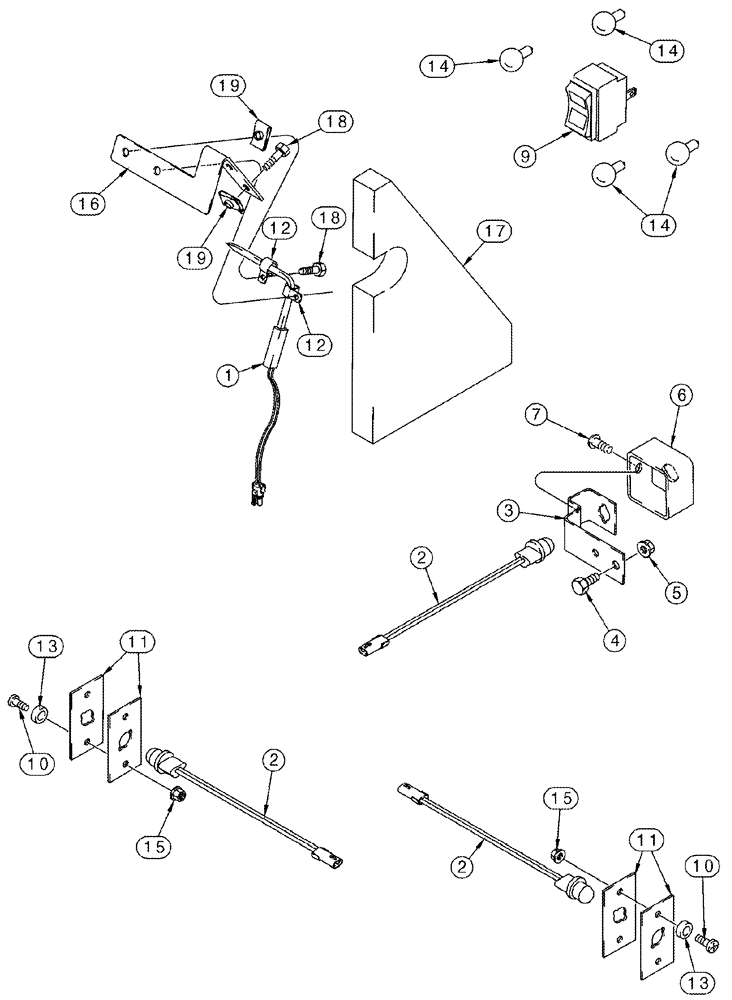

Схема запчастей Case IH 2366 - (04-13) - CAB - TEMPERATURE, AUTO - BSN JJC0252949 (06) - ELECTRICAL
1
19
15
18
13
2
15
5
7
13
3
10
12
18
14
4
9
16
2
10
12
14
11
6
19
11
17
14
2

Артикул

Название

Примечание

Количество

1

184720A2

SENSOR

Evaporator Temperature

1шт.

2

197321A1

SENSOR

Solar

3шт.

3

238748A1

SUPPORT

1шт.

4

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

5

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

6

241002A1

COVER

1шт.

7

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

1шт.

8

259832A2

DECAL

Not Illustrated, See Figure 09H-24, Ref. 18

1шт.

9

234998A2

SWITCH

Automatic Temperature

1шт.

10

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

4шт.

11

222037A1

PLATE

4шт.

12

515-2132

CLAMP,1/8", Insul, 1/4" Bolt

(M3.2 ID)

2шт.

13

224089A1

SPACER

4шт.

14

D71346

TAIL LAMP,12V

No. 168

4шт.

15

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

16

297523A1

SUPPORT

Temperature Probe

1шт.

17

297573A1

INSULATOR

Temperature Probe

1шт.

18

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

4шт.

19

131-648

SPRING NUT,Tinn, U, #10-24

No. 10

4шт.

Выбрано товаров: 19
