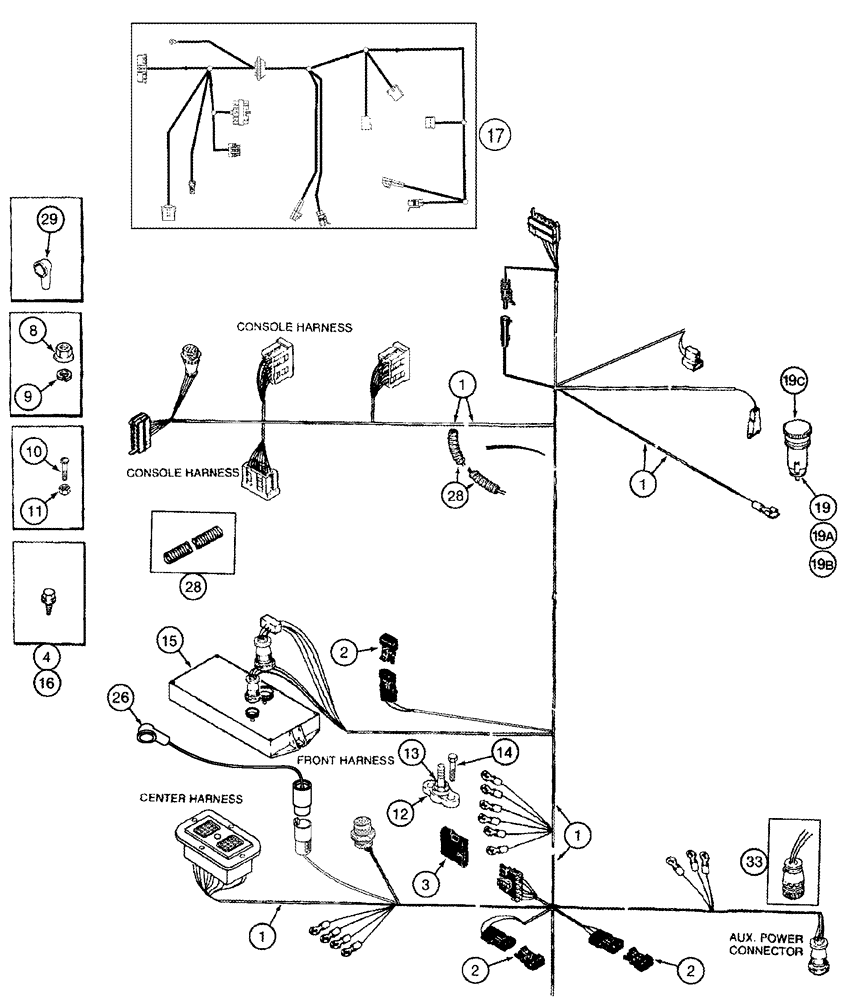

Запчасти Case IH 2366 (04-11) - HARNESS - CAB, LOWER REAR - ASN JJC0252949 (06) - ELECTRICAL

1

370779A1

WIRE HARNESS

Cab, See Figure(s) 04-11, 04-12, Serial Range: -JJC0253999

1шт.

1

388671A3

WIRE HARNESS

Cab, See Figure(s) 04-11, 04-12, Start Serial: JJC0254000

1шт.

2

A187874

MODULE

Cab, See Figure(s) 04-10, 04-12, Not Illustrated

2шт.

3

127290A1

DIODE

Rotor/Fan Speed Request

1шт.

4

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Bulkhead Connector

4шт.

8

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

2шт.

10

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

No. 6 x 5/8

4шт.

11

231-14106

NUT,#6-32, GB

No. 6

4шт.

12

303717A1

JUNCTION BLOCK

Junction, Switched, B+, Replaces 20-1451T1

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

2шт.

15

239938A3

CASE

Header Control, Serial Range: -JJC0254399

1шт.

15

239938A8R

REMAN-MODULE

Reman for New PN 239938A3

1шт.

15

239938A8C

CORE-MODULE

Return Number

1шт.

15

239938A5

CONTROL

Header Control, Start Serial: JJC0254400

1шт.

15

239938A8R

REMAN-MODULE

Reman for New PN 239938A5

1шт.

15

239938A8C

CORE-MODULE

Return Number

1шт.

16

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

17

377537A1

WIRE HARNESS

Heating and Air Conditioning, Component Of 366852A1, See Figure 09G-20 (01), Serial Range: -JJC0254999

1шт.

17

431091A1

WIRE HARNESS

Heating and Air Conditioning, See Figure 09G-20 (02), Start Serial: JJC0255000

1шт.

19

1964773C1

CIGAR LIGHTER

12V, Serial Range: -JJC0253999

1шт.

19a

371831A1

CIGAR LIGHTER

12V, Start Serial: JJC0254000

1шт.

19b

432212A1

CIGAR LIGHTER

Socket Assy, Start Serial: JJC0254000

1шт.

19c

190812A1

COVER

Cigar Lighter, Start Serial: JJC0254000

1шт.

26

277019A2

CABLE

Power, Inc. 29

1шт.

28

236586A1

CONDUIT

990 mm (39 in.)

1шт.

29

399470R1

BOOT

JJC0254000 to

1шт.

33

187103A1

ELEC CONNECTOR

Auxiliary Power, See Note (1)

1шт.

35

83822C1

TAPE

610 mm (24 in.), Cut From 1954475C1, Not Illustrated

2шт.

311906A1

KIT

Cab Power, Inc. 37 - 39, Not Illustrated, See Note (2)

1шт.

37

277424A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

38

277431A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

39

311905A1

TOOL

Not Illustrated

1шт.
