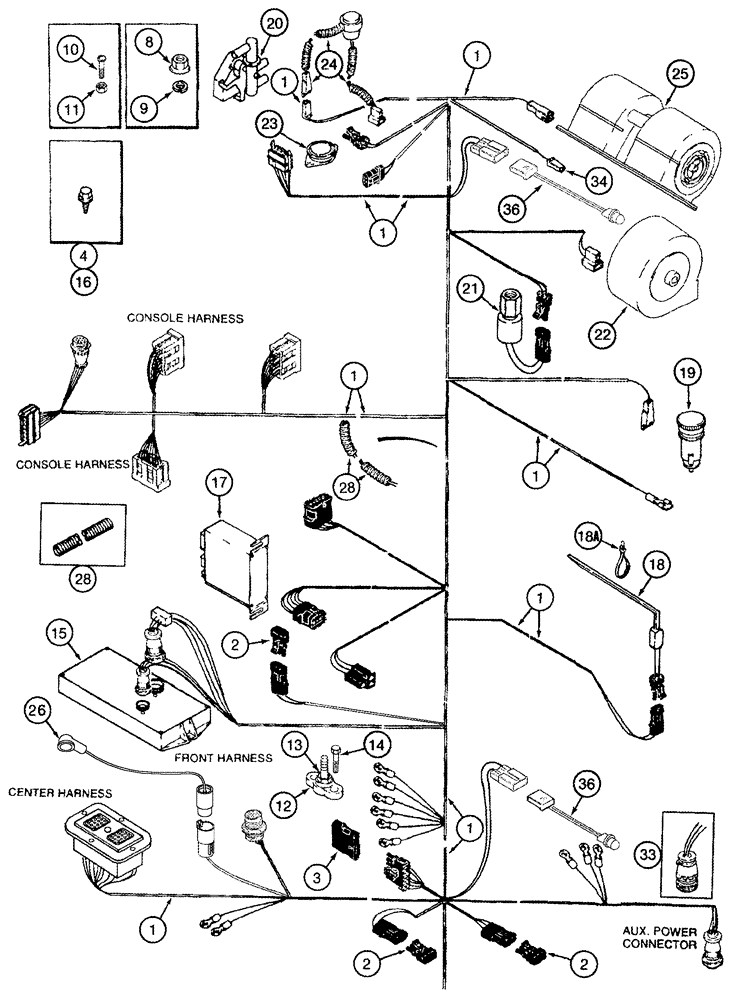

Запчасти Case IH 2366 (04-10) - HARNESS - CAB, LOWER REAR - BSN JJC0252949 (06) - ELECTRICAL

1

276603A2

WIRE HARNESS

Cab, See Figure(s) 04-10, 04-12, Serial Range: -JJC0252303

1шт.

With Overhead Circuit Breaker Panel

1шт.

1a

315073A1

WIRE HARNESS

Cab, See Figure(s) 04-10, 04-12, Not Illustrated, Serial Range: JJC0252304-JJC0252949

1шт.

Without Overhead Circuit Breaker Panel

1шт.

2

A187874

MODULE

Unloader Auger, Concave Clearance Request, Brake Solenoid

3шт.

3

127290A1

DIODE

Rotor/Fan Speed Request

1шт.

4

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Bulkhead Connector

4шт.

8

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

2шт.

10

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

No. 6 x 5/8

4шт.

11

231-14106

NUT,#6-32, GB

No. 6

4шт.

12

303717A1

JUNCTION BLOCK

Junction, Switched, B+, Replaces 20-1451T1

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

2шт.

15

239938A5

CONTROL

Header

1шт.

15

239938A8R

REMAN-MODULE

Reman for New PN 239938A5

1шт.

15

239938A8C

CORE-MODULE

Return Number

1шт.

16

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

17

239951A2

CASE

Air Conditioning Control

1шт.

18

184720A2

SENSOR

Temperature, Evaporator

1шт.

18a

702093C1

CABLE TIE

CABLE STRAP

1шт.

19

371831A1

CIGAR LIGHTER

1шт.

20

141336A2

CONTROL VALVE

Heater

1шт.

21

122579A1

SWITCH, A/C LOW PRES

Low, Air Conditioning

1шт.

22

175435A3

BLOWER

Pressurizer

1шт.

23

242306A2

SWITCH

Seat

1шт.

24

180601A1

WIRE HARNESS

Operator Presence

1шт.

24a

180599A1

WIRE HARNESS

Compressor Seat, Not Illustrated

1шт.

25

355190A1

BLOWER,12V

Cab

1шт.

25

355190A1R

REMAN-BLOWER,12V

Electronics - Other

1шт.

25

355190A1C

CORE-BLOWER,12V

Return Number, BLOWER

1шт.

26

277019A1

CABLE

Cab Power

1шт.

28

236586A1

CONDUIT

990 mm (39 in.)

1шт.

33

187103A1

ELEC CONNECTOR

Auxiliary Power

1шт.

34

225257C1

PLUG

Blower Motor

1шт.

35

83822C1

TAPE

610 mm (24 in.), Cut From 1954475A1, Not Illustrated

2шт.

36

197321A1

SENSOR

Solar

2шт.

311906A1

KIT

Cab Power, Inc. 37 - 39, Not Illustrated

1шт.

37

277424A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

38

277431A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

39

311905A1

TOOL

Not Illustrated

1шт.
