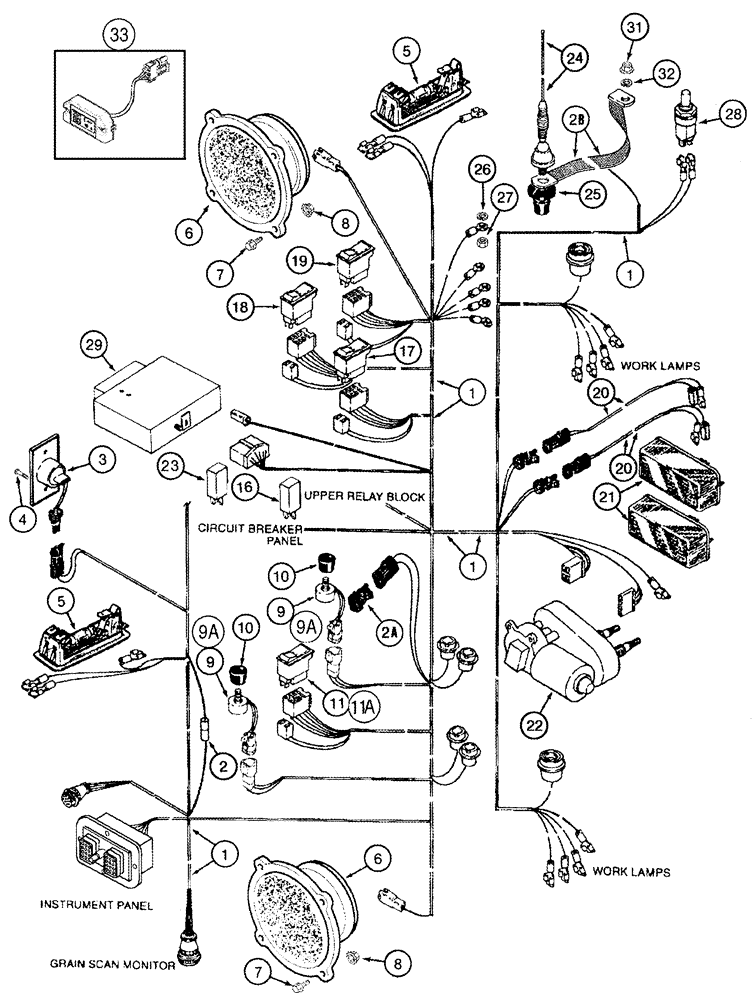

Запчасти Case IH 2366 (04-08) - HARNESS - CAB, OVERHEAD (06) - ELECTRICAL

1

276603A2

WIRE HARNESS

Cab, See Figure(s) 04-10, 04-12, Serial Range: -JJC0252303

1шт.

With Overhead Circuit Breaker Panel

1шт.

1a

315073A1

WIRE HARNESS

Cab, See Figure(s) 04-10, 04-12, Not Illustrated, Serial Range: JJC0252304-JJC0252949

1шт.

Without Overhead Circuit Breaker Panel

1шт.

1b

370779A1

WIRE HARNESS

Cab, See Figure(s) 04-11, 04-12, Not Illustrated, Serial Range: JJC0252950-JJC0253999

1шт.

Without Overhead Circuit Breaker Panel

1шт.

1c

388671A3

WIRE HARNESS

Cab, See Figure(s) 04-11, 04-12, Not Illustrated, Start Serial: JJC0254000

1шт.

Without Overhead Circuit Breaker Panel

1шт.

2

113699A1

RECTIFIER

2-5/8

1шт.

2a

A187874

MODULE

1шт.

2b

278032A1

GROUND STRAP

Radio Antenna To Cab

1шт.

3

83882C91

LAMP

Console Illumination, See Figure 04-33

1шт.

4

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

5

429726A1

COURTESY LIGHT

DOME LIGHT See Figure 04-33

2шт.

6

182721A2

SPEAKER

5-1/2, Serial Range: -JJC0253127

2шт.

6

375389A1

SPEAKER

5-1/2 JJC0253128 to

2шт.

7

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

8шт.

8

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

9

114551A1

POTENTIOMETER,2500 Ohm, 500V

Air Conditioning, Fan Speed, Temperature, Serial Range: -JJC0252949

2шт.

9a

369794A1

POTENTIOMETER,10,000 Ohm

Air Conditioning, Fan Speed, Temperature, Start Serial: JJC0252950

2шт.

10

1977521C1

BUTTON

2шт.

11

124535A1

SWITCH

Air Conditioning, Serial Range: -JJC0252949

1шт.

Without Automatic Temperature Control

1шт.

11a

369892A1

SWITCH

Air Conditioning, Not Illustrated, Start Serial: JJC0252950

1шт.

12

26069R1

BULB

No. 192, Not Illustrated

4шт.

13

139718A1

CIRCUIT-BREAKER,10 Amp, Mini

Not Illustrated

1шт.

Use with 276603A2

1шт.

14

139719A1

CIRCUIT BREAKER,15 Amp, Mini

Not Illustrated

2шт.

Use with 276603A2

1шт.

15

139720A1

CIRCUIT-BREAKER,20 Amp, Mini

Not Illustrated

3шт.

Use with 276603A2

1шт.

16

105849A1

RELAY

Continuous Duty, Mounted In Block, 20 amp

5шт.

17

176854A1

WINDSHIELD WIPER SWI

Wiper

1шт.

18

124095A1

LIGHT SWITCH

Lamp, Serial Range: -JJC0253999

1шт.

18

391065A1

SWITCH

Lamp, Start Serial: JJC0254000

1шт.

19

279263A1

FLASHER SWITCH

Warning Lamp

1шт.

20

143062A1

WIRE HARNESS

Warning Lamp

2шт.

21

130882C91

LAMP

See Figure 04-33

2шт.

22

137838A1

WIPER MOTOR

MOTOR, WIPER See Figure 04-43

1шт.

23

391066A1

RELAY

Time Delay, Start Serial: JJC0254000

1шт.

24

97080C1

ANTENNA

1шт.

25

R54547

GROMMET

1шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

27

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

28

1983341C1

SWITCH

JAM Door

1шт.

29

REF

INSTRUCTION

Radio, See Figure 04-09

1шт.

31

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

32

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

33

308910A2

DISPLAY

Air Conditioning Display, Start Serial: JJC0252950

1шт.
