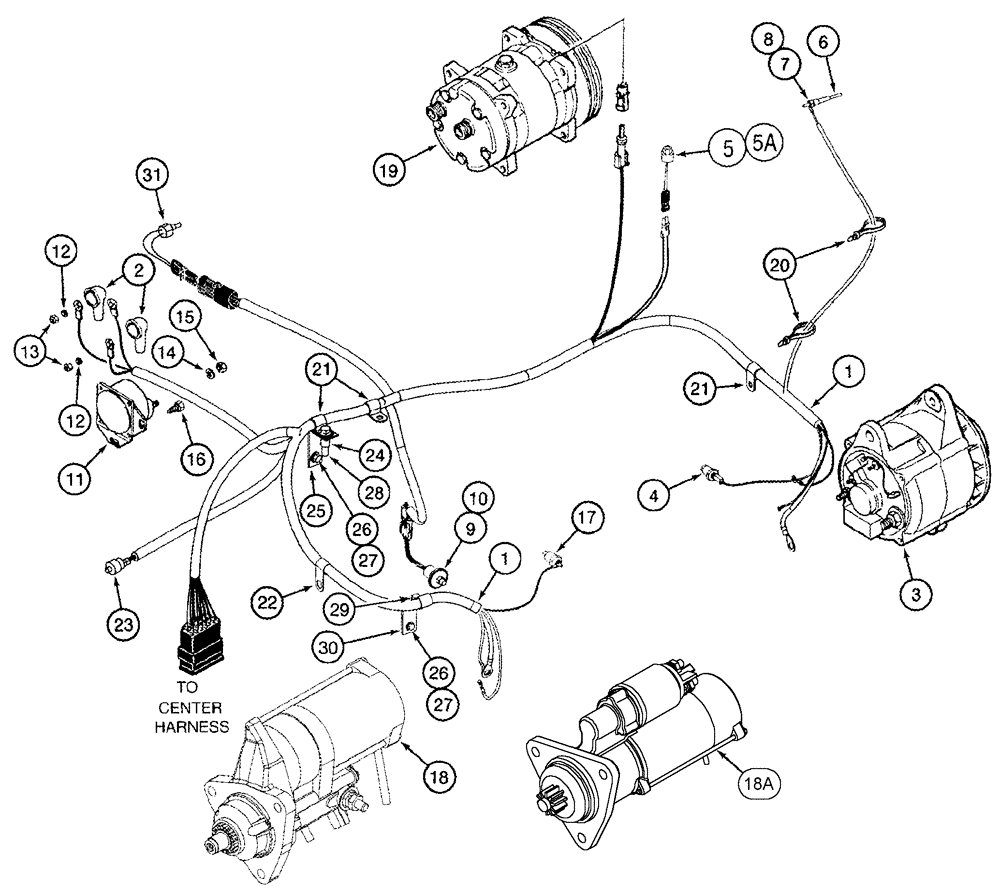

Запчасти Case IH 2366 (04-05) - HARNESS, ENGINE (06) - ELECTRICAL

1

241938A3

WIRE HARNESS

Engine, Inc. 2, Serial Range: -JJC0255699

1шт.

1

436197A2

WIRE HARNESS

Engine, Inc. 2, Start Serial: JJC0255700

1шт.

2

399470R1

BOOT

2шт.

3

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 amp, See Figure(s) 04-38, 04-40

1шт.

3

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 ampere

1шт.

3

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

3

125849A1GV

ALTERNATOR

Value, 12 volt 135 ampere

1шт.

4

1345488C3

TEMPERATURE SWITCH

Coolant Temperature, Serial Range: -JJC0255699

1шт.

4

430653A1

SWITCH

Coolant Temperature, 230 deg, Start Serial: JJC0255700

1шт.

5

232948A1

SWITCH, A/C HIGH PRE

, Serial Range: -JJC0252949

1шт.

5a

369798A2

SWITCH

High Pressure, Air Conditioning, Start Serial: JJC0252950

1шт.

6

279476A1

SENSOR

Coolant Level

1шт.

7

492-11010

LOCK WASHER,#10

1шт.

8

225-14210

NUT,#10-32

1шт.

9

1964960C1

PRESSURE SWITCH

Engine Oil Pressure

1шт.

10

217-9

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

, Serial Range: -JJC0255699

1шт.

10

250838A2

HYD CONNECTOR

M10, Inc. 10A, Start Serial: JJC0255700

1шт.

10a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

11

178149A1

SOLENOID SWITCH

See Figure 04-01

1шт.

12

492-11031

LOCK WASHER,5/16"

2шт.

13

425-105

NUT,5/16"-18, G5

2шт.

14

492-11010

LOCK WASHER,#10

1шт.

15

225-14210

NUT,#10-32

1шт.

16

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

2шт.

17

121756C2

SENSOR

Coolant Temperature

1шт.

18

87413500

STARTING MOTOR

Case Branded, Replaces 193432A2, See Figure(s) 04-39, 04-41, Serial Range: -JJC0256399

1шт.

18

193432A2GV

STARTER MOTOR,12V, 4.8kW

Value, 12V, 4KW

1шт.

18

193432A2R

REMAN-STARTER,12V, 4.8kW

Remanufactured Starter 12 volt, 4.0 KW

1шт.

18

193432A2C

CORE-STARTER,12V, 4.8kW

Return Part Number

1шт.

18a

87419387

STARTING MOTOR

Iskra Brand, See Figure 04-39A, 04-39B, Start Serial: JJC0256400

1шт.

18a

84146320R

REMAN-STARTER,12V, 4.2kW

2366 Start Serial: JJC0256400 (1/98-8/04), Reman for New P/N 87419387

1шт.

18a

84146320C

CORE-STARTER,12V, 4.2kW

Return Part Number

1шт.

19

86993462

AIRCOND. COMPRESSOR

Replaces 1999755C3, See Figure 09G-25

1шт.

19

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

19

86993462R

REMAN-COMPRESSOR

2366 (1/98-8/04)

1шт.

19

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

19

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

19

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

20

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

8шт.

21

515-30222

CLAMP,7/8", 1/2" Bolt

4шт.

21

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

21

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

22

1345263C1

CLIP

3/4 ID

1шт.

23

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

24

80438R1

SPACER,3/8" Pipe x 3"

1шт.

25

1317942C1

BRACKET

1шт.

26

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

26

854-12100

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

1шт.

27

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

28

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

1шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

30

1317942C1

BRACKET

1шт.

31

194346A1

SENSOR

Air To Air Temperature, Serial Range: -JJC0255699

1шт.

31

87300499

SENSOR

Air to Air Temperature, Start Serial: JJC0255700

1шт.
