(05-31) - REAR WHEEL WEIGHT, FOR USE WITH 417734A1 WHEEL

Запчасти Case IH 2366 (05-31) - REAR WHEEL WEIGHT, FOR USE WITH 417734A1 WHEEL (04) - STEERING

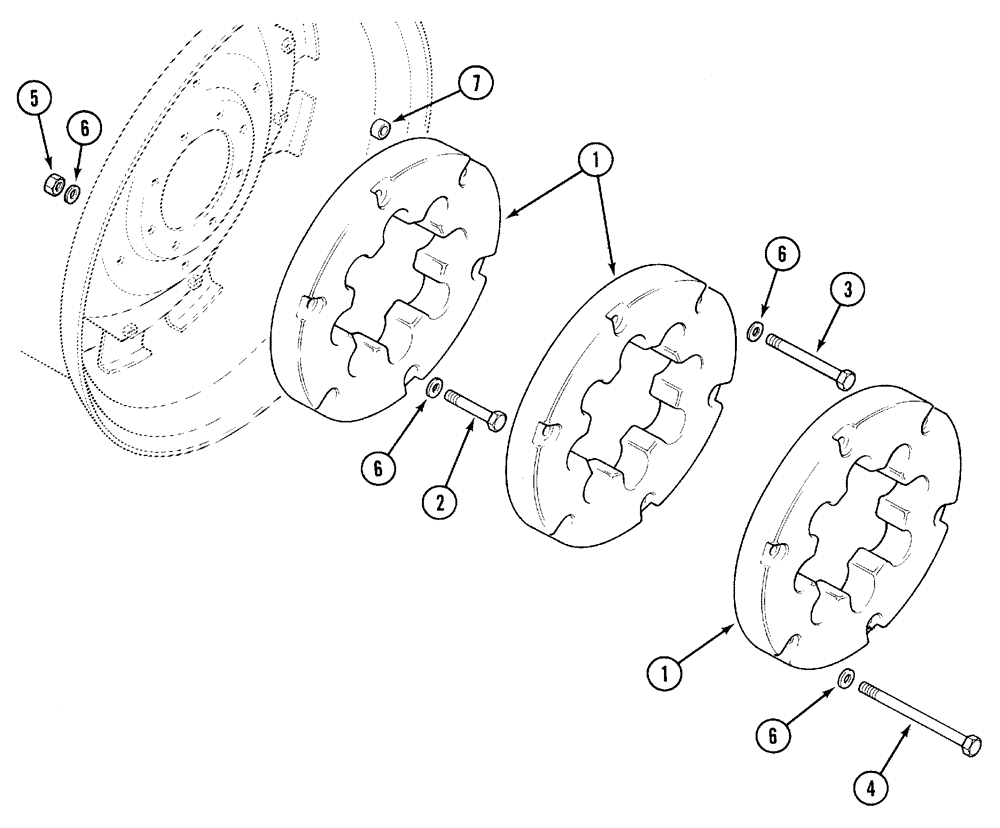

Схема запчастей Case IH 2366 - (05-31) - REAR WHEEL WEIGHT, FOR USE WITH 417734A1 WHEEL (04) - STEERING
3
5
6
1
2
6
6
1
6
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3140032R3

WEIGHT

1шт.

2

814-16115

BOLT,Hex, M16 x 2 x 115mm, Cl 8.8

M16 x 115; 8.8, 1st Set

4шт.

3

814-16190

BOLT,Hex, M16 x 2 x 190mm, Cl 8.8

2nd Set

4шт.

4

814-16260

BOLT,Hex, M16 x 2 x 260mm, Cl 8.8

3rd Set

4шт.

5

825-1416

NUT,M16, Cl 8

1шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

7

1534896C1

SPACER

1шт.
