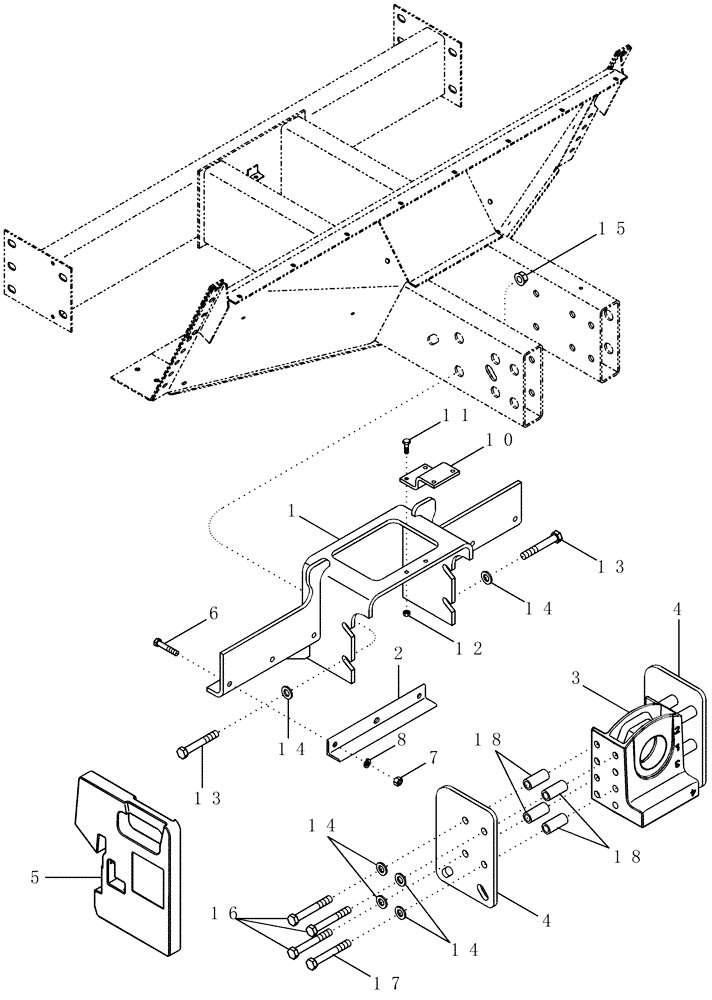

Запчасти Case IH 2366 (05-28[02]) - AXLE, STEERING - WEIGHTS (16 WEIGHTS) WITHOUT HITCH, ASN JJC0254000 (04) - STEERING

1

428191A1

SUPPORT ASSY.

, Serial Range: JJC0254000-JJC0254999

1шт.

1

431786A1

BRACKET

, Start Serial: JJC0255000

1шт.

2

292361A2

ANGLE

2шт.

3

386235A1

SUPPORT

Rear Axle

1шт.

4

404422A1

ANCHOR

Shipping

2шт.

5

148347C1

WEIGHT,100 LB

WEIGHT, 100 lbs.

1шт.

Order From Machinery Price List

1шт.

6

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

4шт.

7

231-4248

NUT,1/2"-13, GB

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

10

406560A1

SUPPORT

Power Guide Axle

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

13

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

4шт.

14

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

12шт.

15

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

12шт.

16

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

6шт.

17

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

18

177748C1

SPACER

8шт.
