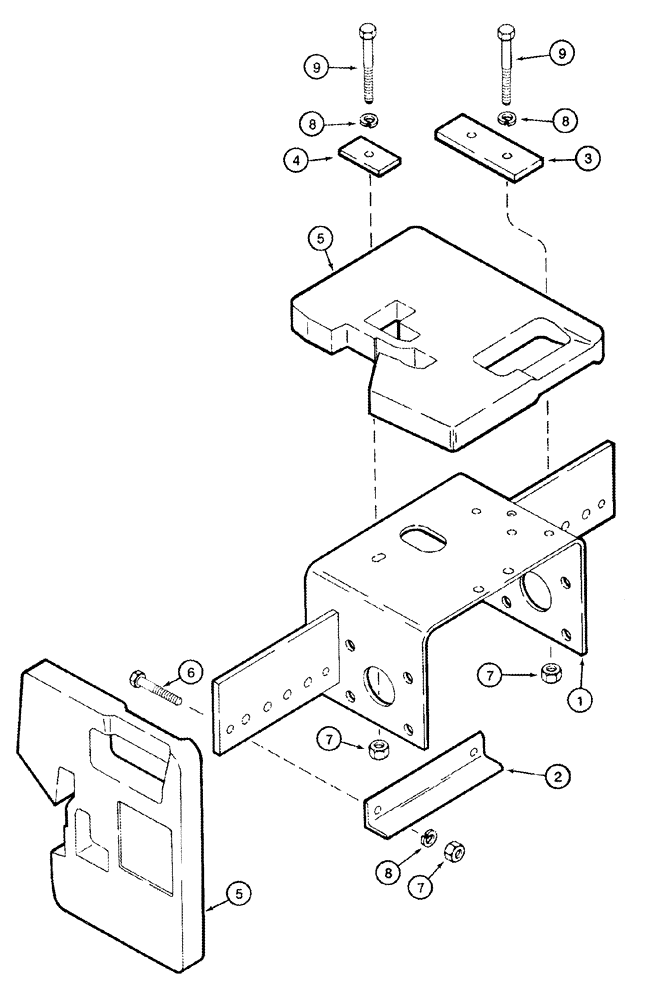

Запчасти Case IH 2366 (05-28[01]) - AXLE, STEERING - WEIGHTS (10 WEIGHTS) - BSN JJC0253999 (04) - STEERING

1

185365C3

SUPPORT

No Longer Available, See Figure 05-28 (02), Ref. 1

1шт.

2

1308872C1

BRACKET

2шт.

3

178434C1

CLAMP

1шт.

4

561838R1

PLATE

1шт.

5

148347C1

WEIGHT,100 LB

WEIGHT, 100 lb

1шт.

Order From Machinery Price List

1шт.

6

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

4шт.

7

231-4248

NUT,1/2"-13, GB

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

7шт.

9

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

.5 x 5.5 UNC GR5 YZD

3шт.

10

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

Not Illustrated

8шт.
