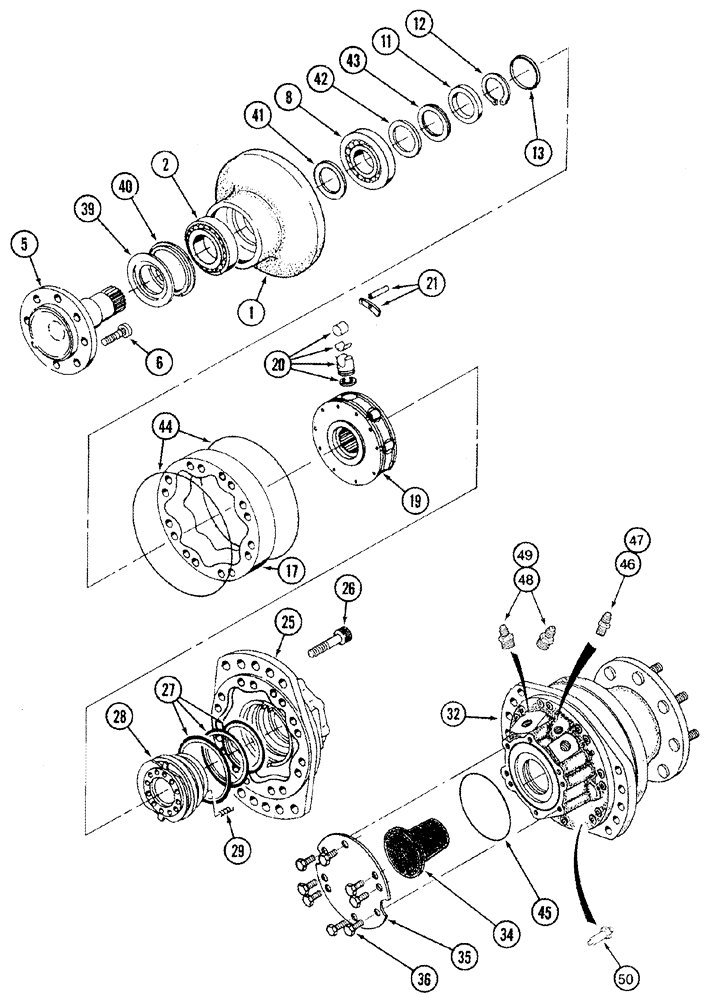

Запчасти Case IH 2366 (05-27) - MOTOR ASSY - WHEEL DRIVE - POWER GUIDE AXLE (04) - STEERING
№
Артикул
Название
Примечание
Количество
121436A1
MOTOR, HYDRAULIC
Wheel Drive, Inc. 1 - 50, Serial Range: -JJC0256605
2шт.
87300716
MOTOR, HYDRAULIC
Wheel Drive, Inc. 1 - 32, 35 - 50, Start Serial: JJC0256606
2шт.
87300716R
REMAN-HYDROSTAT MOTO
2366 - CASE IH AXIAL-FLOW COMBINE (NA) - 1/98-8/04, Reman For New P/N's 121436A1 & 87300716,
2шт.
87300716C
CORE-HYDROSTAT MOTOR
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING
1шт.
2
305405A1
BALL BEARING,70mm ID x 125mm OD x 41mm W
Outer
1шт.
5
NSS
NOT SOLD SEPARAT
SHAFT Wheel Hub
1шт.
6
1970151C1
STUD
8шт.
8
NSS
NOT SOLD SEPARAT
BEARING Ball, Inner
1шт.
11
NSS
NOT SOLD SEPARAT
SPACER
1шт.
12
NSS
NOT SOLD SEPARAT
RING Snap
1шт.
13
NSS
NOT SOLD SEPARAT
RETAINER
1шт.
17
NSS
NOT SOLD SEPARAT
RING
1шт.
19
NSS
NOT SOLD SEPARAT
BLOCK Cylinder
1шт.
20
NSS
NOT SOLD SEPARAT
KIT Piston
10шт.
21
NSS
NOT SOLD SEPARAT
KIT Retainer
1шт.
25
NSS
NOT SOLD SEPARAT
COVER
1шт.
26
NSS
NOT SOLD SEPARAT
BOLT
16шт.
27
1978004C1
SEAL KIT
Used With Ref. 28
1шт.
28
NSS
NOT SOLD SEPARAT
BLOCK Valve
1шт.
29
NSS
NOT SOLD SEPARAT
SPRING
8шт.
32
NSS
NOT SOLD SEPARAT
HOUSING Wheel
1шт.
34
1970394C2
DIAPHRAGM
1шт.
35
1978005C1
COVER
1шт.
36
NSS
NOT SOLD SEPARAT
BOLT Cover
8шт.
1978008C1
SEAL KIT
Inc. 39 - 44, Serial Range: -JJC0256605
1шт.
87300718
SEAL KIT
Inc. 39 - 44, Start Serial: JJC0256606
1шт.
39
NSS
NOT SOLD SEPARAT
DEFLECTOR
1шт.
40
NSS
NOT SOLD SEPARAT
SEAL
1шт.
41
NSS
NOT SOLD SEPARAT
SEAL
1шт.
42
NSS
NOT SOLD SEPARAT
WASHER
1шт.
43
NSS
NOT SOLD SEPARAT
KIT
1шт.
44
NSS
NOT SOLD SEPARAT
O-RING
2шт.
45
238-5162
O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro
1шт.
46
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
Incl. 47
1шт.
47
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
48
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 49
2шт.
49
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
50
121434A1
ADAPTER
Flush Port, English Thread
1шт.
