Запчасти Case IH 2366 (05-25) - CYLINDER ASSY - STEERING - POWER GUIDE AXLE (04) - STEERING

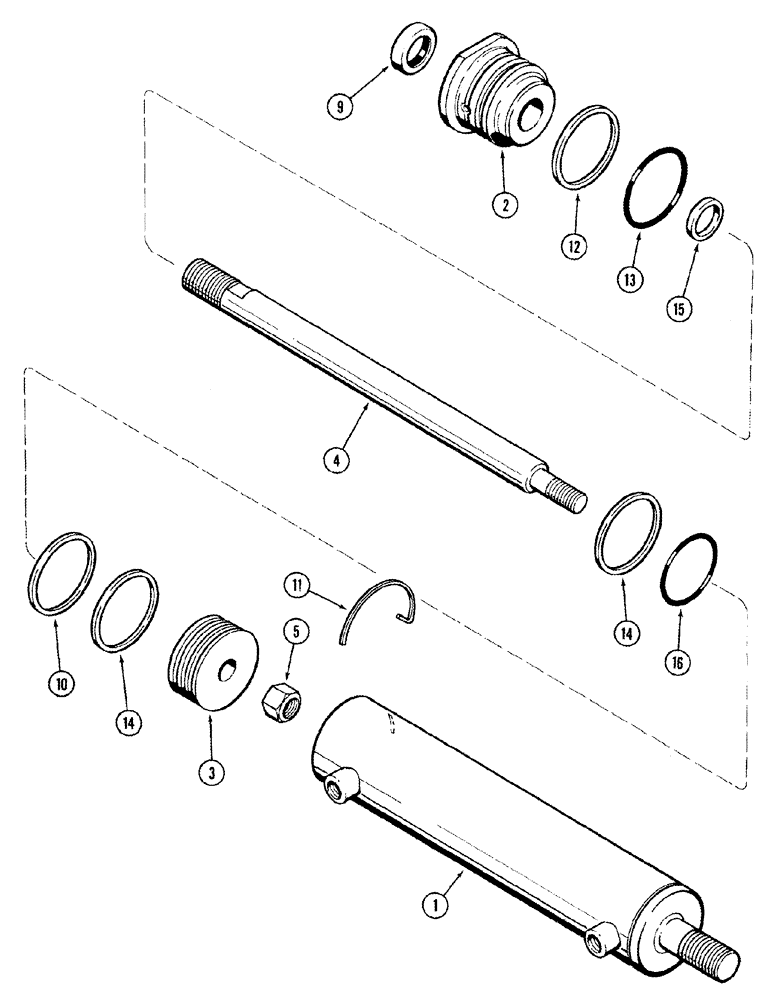

Схема запчастей Case IH 2366 - (05-25) - CYLINDER ASSY - STEERING - POWER GUIDE AXLE (04) - STEERING
14
14
16
3
1
11
5
13
9
2
4
15
12
10

Артикул

Название

Примечание

Количество

127913C93

STEERING CYLINDER

57 ID x 229 mm strk, Inc. 1 - 16, Serial Range: -JJC0253999

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Order 127913C93

1шт.

2

127919C1

GLAND

1шт.

3

127921C1

PISTON

1шт.

4

127920C2

PISTON ROD

1шт.

5

232-46310

LOCK NUT,5/8"-11, GC

1шт.

73661C92

SEAL KIT

Inc. 9 - 16

1шт.

9

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

1шт.

10

127931C2

RING

1шт.

11

127922C2

RETAINING WIRE

Retaining, Cut 178 mm (7 in) From 140600C1

1шт.

12

127933C1

BACK-UP RING

Ring, Backup

1шт.

13

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

Packing Gland

1шт.

14

127932C1

BEARING WASHER

Backup

2шт.

15

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

Teflon, Piston

1шт.

16

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

Piston

1шт.

1958024C1

STEERING CYLINDER

64 ID x 229 mm strk, Inc. 1 - 16, Serial Range: -JJC0253999

1шт.

, Start Serial: JJC0255700

1шт.

87337226R

REMAN-HYD CYLINDER

2366 ( 1/98 - 8/04 ) Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Order 1958024C1

1шт.

2

1958020C1

GLAND

1шт.

3

1958021C1

PISTON

1шт.

4

127920C2

PISTON ROD

1шт.

5

232-46310

LOCK NUT,5/8"-11, GC

1шт.

1971520C1

SEAL KIT

Inc. 9 - 16

1шт.

9

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

Piston Rod

1шт.

10

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL

1шт.

11

385133R1

RETAINING WIRE

1шт.

12

378733R1

BACK-UP RING

1шт.

13

238-6330

O-RING,0.21" Thk x 2.1" ID, -330, Cl 6, 90 Duro

Packing Gland

1шт.

14

379960R1

SEALING RING

SEALRING

2шт.

15

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

Teflon, Piston

1шт.

16

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston

1шт.

Выбрано товаров: 33
