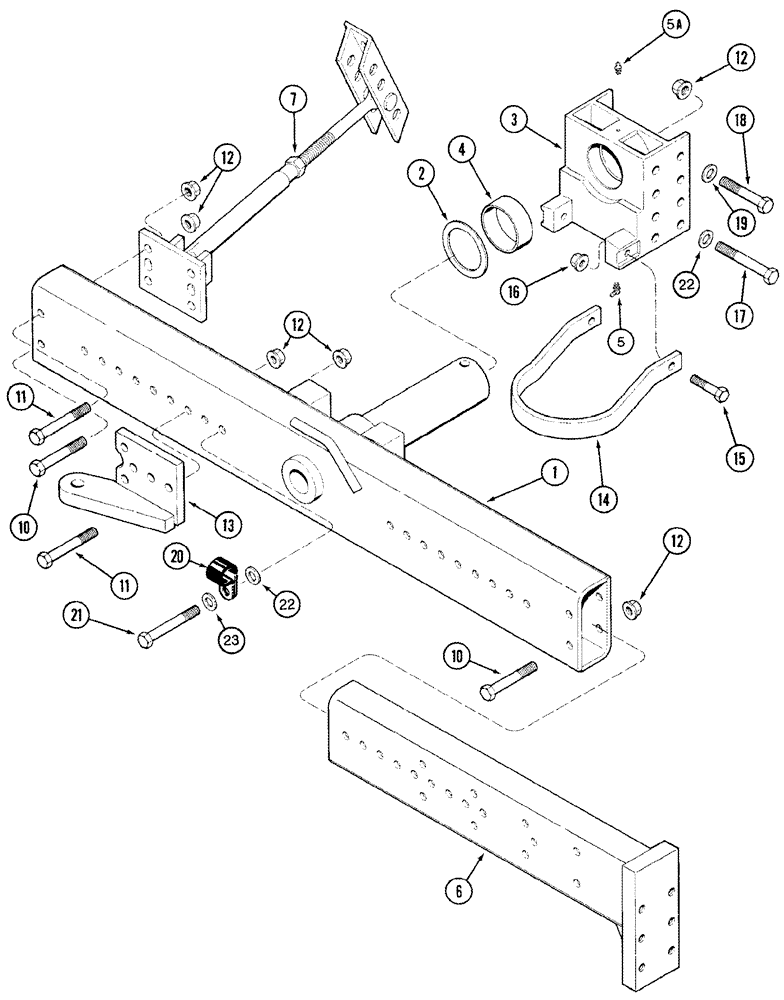

Запчасти Case IH 2366 (05-23[01]) - AXLE, STEERING - EXTENSIONS - POWER GUIDE AXLE, BSN JJC0254999 (04) - STEERING

1

1968991C1

AXLE

Adjustable, 108 to 144 Inch

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

4шт.

3

186599C94

SUPPORT

Axle Pivot, Inc. 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

5a

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

6

1968992C1

AXLE

108 to 144 inch

2шт.

7

REF

INSTRUCTION

SUPPORT ASSY., See Figure 05-22 (01), Ref. 16 - 24

2шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

10шт.

11

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

4шт.

12

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

13

1968993C1

SUPPORT

1шт.

14

1979114C1

STRAP

Tow, 51 mm Drop

1шт.

15

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

16

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

17

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

18

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

6шт.

19

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

5шт.

20

195618A1

CLAMP

1шт.

21

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.

22

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

13/16 x 1-3/4 x 7/32

3шт.

23

495-11081

WASHER,3/4", SAE

1шт.
