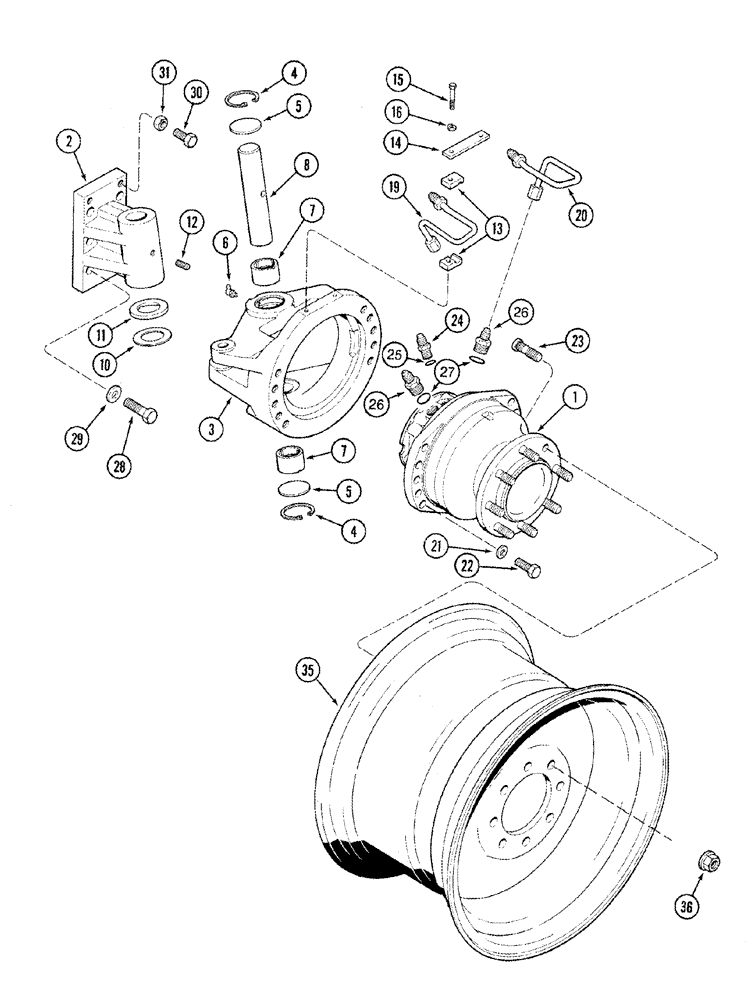

Запчасти Case IH 2366 (05-21) - MOTOR, WHEEL - KING PIN - POWER GUIDE AXLE (04) - STEERING

1

121436A1

MOTOR, HYDRAULIC

Wheel Drive, Corn and Grain, See Figure 05-27, Serial Range: -JJC0256605

2шт.

1

87300716

MOTOR, HYDRAULIC

Wheel Drive, See Figure 05-27, Start Serial: JJC0256606

2шт.

87300716R

REMAN-HYDROSTAT MOTO

2366 - CASE IH AXIAL-FLOW COMBINE (NA) - 1/98-8/04, Reman For New P/N's 121436A1 & 87300716,

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

2

1970138C1

HOUSING

King Pin

2шт.

3

1970136C1

HOUSING

Right Hand, Inc. (2) 1970142C1, Ref. 7, Serial Range: -JJC0253999

1шт.

3

406799A1

FRAME

RH, Incl. (2) 1970142C1, Ref 7, Start Serial: JJC0254000

1шт.

3

1970354C1

FRAME

LH, Incl. (2) 1970142C1, Ref 7

1шт.

4

100-21244

SNAP RING,2.44", Int, #244

4шт.

5

41-3040

PLUG,Exp, 2 1/2"

4шт.

6

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

4шт.

7

1970142C1

BUSHING

4шт.

8

1970143C1

PIN,47.63mm OD x 231.78mm L

2шт.

10

1970381C1

THRUST WASHER

Steel

2шт.

11

1970382C1

THRUST WASHER

Bronze

4шт.

12

83-15020

SET SCREW,Hex Soc, 1/2"-13 x 1 1/4"

1/2 x 1-1/4 cp pt

2шт.

13

1970148C1

CLAMP

8шт.

14

1970150C1

PLATE

2шт.

15

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

4шт.

16

492-11031

LOCK WASHER,5/16"

4шт.

19

1970146C1

HYD TUBE

Pressure

2шт.

20

1970147C1

HYD TUBE

Pressure

2шт.

21

1324470C1

WASHER

41/64 x 1 x 3/64

20шт.

With 92 to 120 Inch Power Guide Axle

1шт.

21

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

20шт.

With 120 to 144 Inch Power Guide Axles.

1шт.

22

326-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 8

20шт.

With 92 to 120 Inch Power Guide Axle

1шт.

22

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

20шт.

With 120 to 144 Inch Power Guide Axles.

1шт.

23

1970151C1

STUD

16шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 27

4шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

12шт.

29

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

12шт.

30

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

31

329-1410

JAM NUT,Jam, 5/8"-11, G8

4шт.

35

1970153C3

WHEEL ASSY

16 x 26

2шт.

Used with 16.9 x 26 Inch Tire

1шт.

Used with 18.4 x 26 Inch Tire

1шт.

35

257875A2

WHEEL ASSY

600/65-R28

2шт.

36

1541701C1

FLANGE NUT

16шт.
